APRO-Q Series
1600x900mm Aluminum Stadium Perimeter LED Screen
This 1600x900mm aluminum perimeter LED screen features a safety-first design that meets UEFA standards, delivering peace of mind and dependable performance for any stadium.
APRO-Q SERIES DESCRIPTION Description
The APRO Series outdoor LED display is purpose-built to thrive in scorching heat, freezing cold, and dazzling sunlight. Its tough, weatherproof aluminum construction shields it from rain, snow, dust, and more, guaranteeing unwavering performance no matter what nature throws its way.
It harnesses cutting-edge LED technology to minimize energy use while maximizing visual impact. With advanced thermal management, dazzling brightness up to 12000 nits, and an IP66-rated weatherproof design, your content shines brilliantly and captivates audiences with rock-solid reliability.
The A Pro Series offers customizable curved installations, perfect for breathtaking giant 3D naked-eye displays. We also provide a complete package kit for a seamless, one-stop purchase. Let our premium LED screen elevate your brand and leave a lasting impression.
Key Features

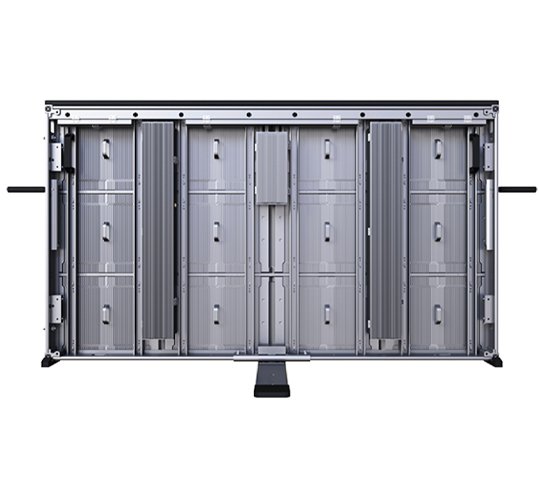

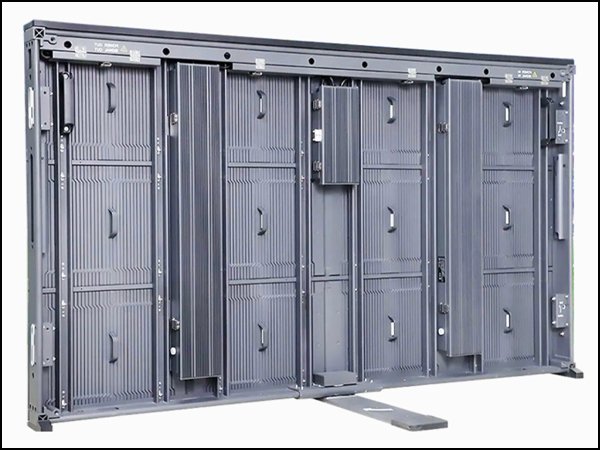

16:9 Design / Lightweight with Full Aluminum Cabinet
With a panel size of 1600*900*101mm and a weight of just 45kg per square meter, this design is 30% lighter than standard iron cabinets, making installation easier and reducing labor and shipping costs. Its recyclable materials and resource-saving construction support sustainability, while high-precision CNC processing ensures exceptional flatness.

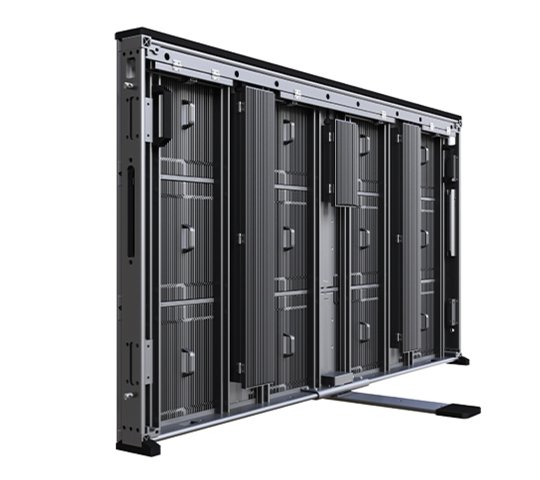

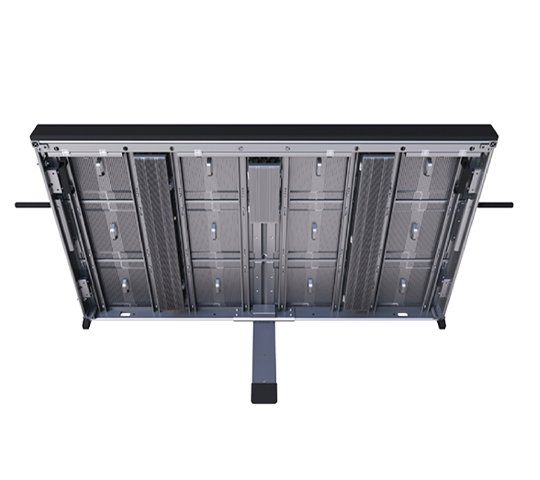

Built-in Foot Stand

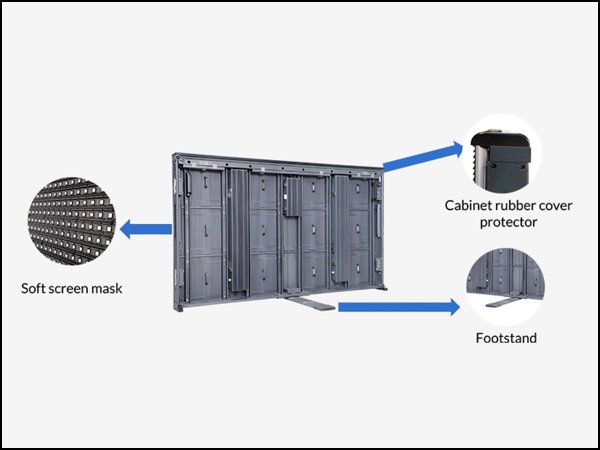

Humanization Design and Impact Protection
The soft screen mask features a three-layer sloped design that cushions impacts and channels away rain. A rubber cabinet cover shields athletes from harm, while the footstand and its rubber protector ensure safety and stability.

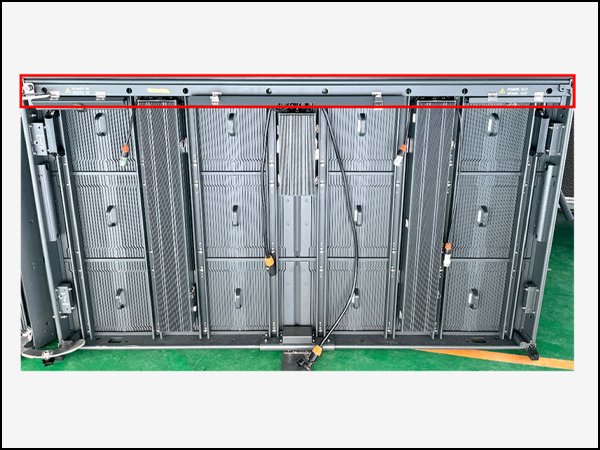

Hidden Cable Design / Top Cable Ducting
By concealing all cables at the top of the cabinet, the design creates a sleek, uncluttered look while protecting the cables from water and curious animals.

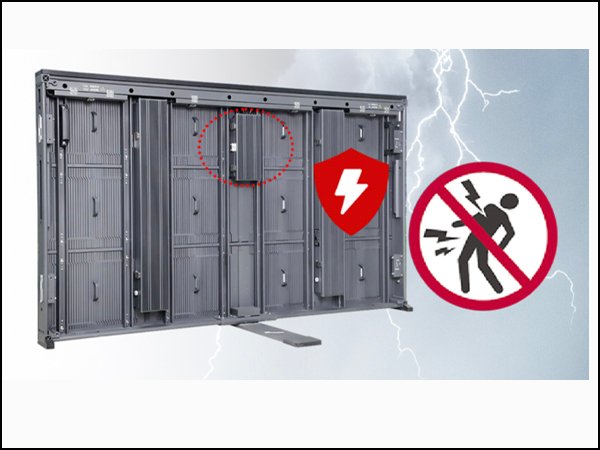

Electrical Safety
Each cabinet has a circuit breaker that protects people from electric shock caused by current leaks and guards against overcurrent.

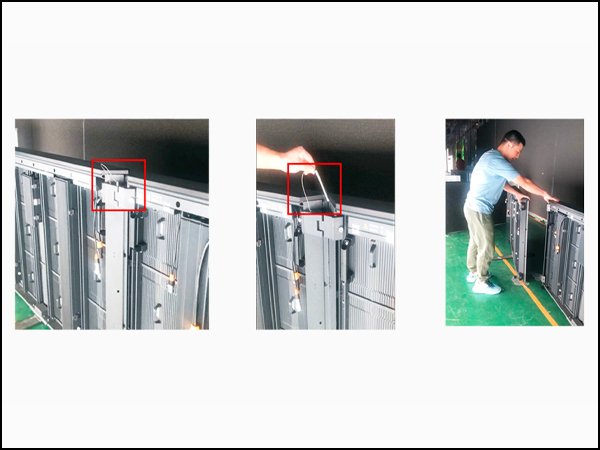

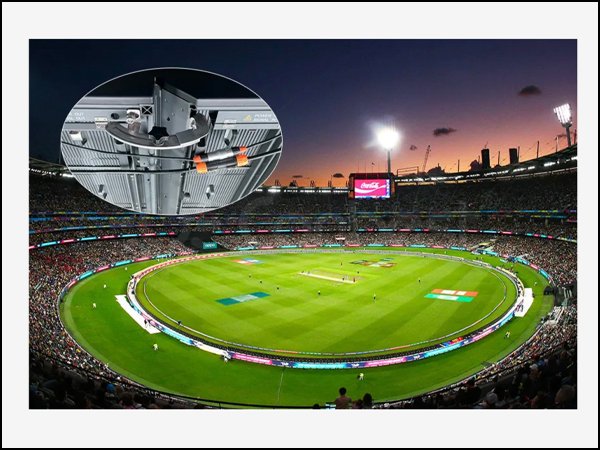

Emergency Access Provision
Special bolts are engineered to allow two cabinets to be removed quickly, ensuring a fast, effortless escape during emergencies, as required by most football associations.

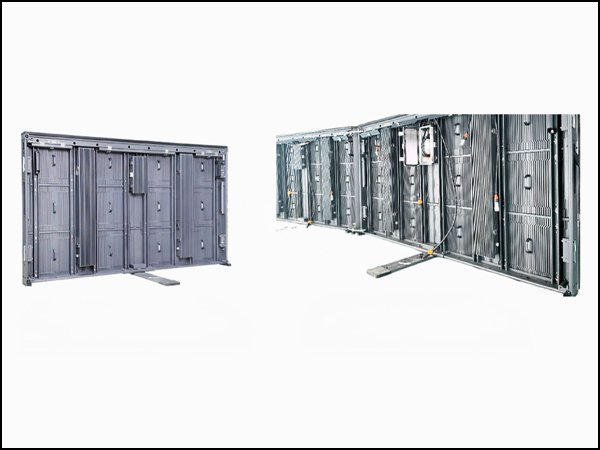

Curved Splicing
Curved splicing brings your stadium’s vision to life, delivering unique display effects tailored to your requests.

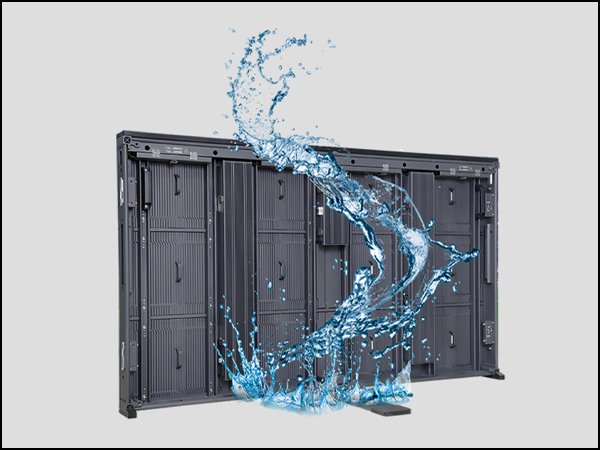

Super Safe- IP66 Waterproof
Redundancy Support for Power Supply and Receiving Card
Offers both power and signal redundancy, giving operators peace of mind and guaranteeing uninterrupted operation even during power outages or signal loss.

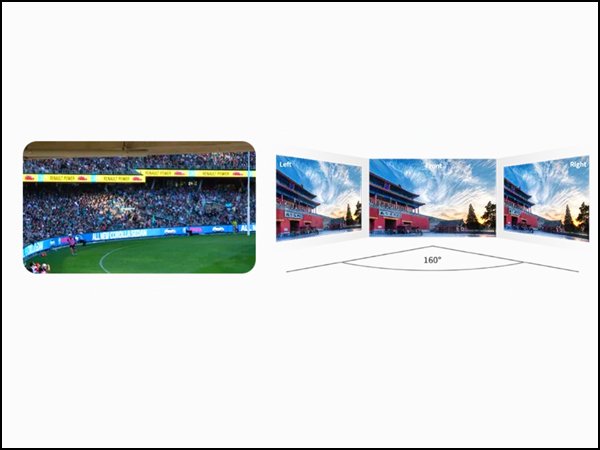

Large Viewing Angle
Experience the brilliance of SMD lamps, designed to illuminate every corner with their impressive 160 by 160 degree viewing angle.
Texture LED Series Specifications
3840Hz
Refresh Rate5500-9000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioAPRO-Q SERIES 6.67MM SMD OUTDOOR-A6PRO-Q
▾
PIXEL PITCH::
6.67
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
60x45dots
CABINET PIXEL RESOLUTION ( H X W)::
240x135dots
BRIGHTNESS::
5500~8500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
1600x900mm ( 62.99x35.43 inch)
CABINET WEIGHT::
64.8Kgs ( 142.85 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO-Q SERIES 8MM SMD OUTDOOR-A8PRO-Q
▾
PIXEL PITCH::
8.3mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
48x36dots
CABINET PIXEL RESOLUTION ( H X W)::
192x108dots
BRIGHTNESS::
5500~6500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
1600x900mm ( 62.99x35.43 inch)
CABINET WEIGHT::
64.8Kgs ( 142.85 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO SERIES 10MM SMD OUTDOOR
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
40x30dots
CABINET PIXEL RESOLUTION ( H X W):
160x90dots
BRIGHTNESS::
6000~9000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
1600x900mm ( 62.99x35.43 inch)
CABINET WEIGHT::
64.8Kgs ( 142.85 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
