APRO-R Series
Full Aluminum Top Service Stadium LED Ribbon Board

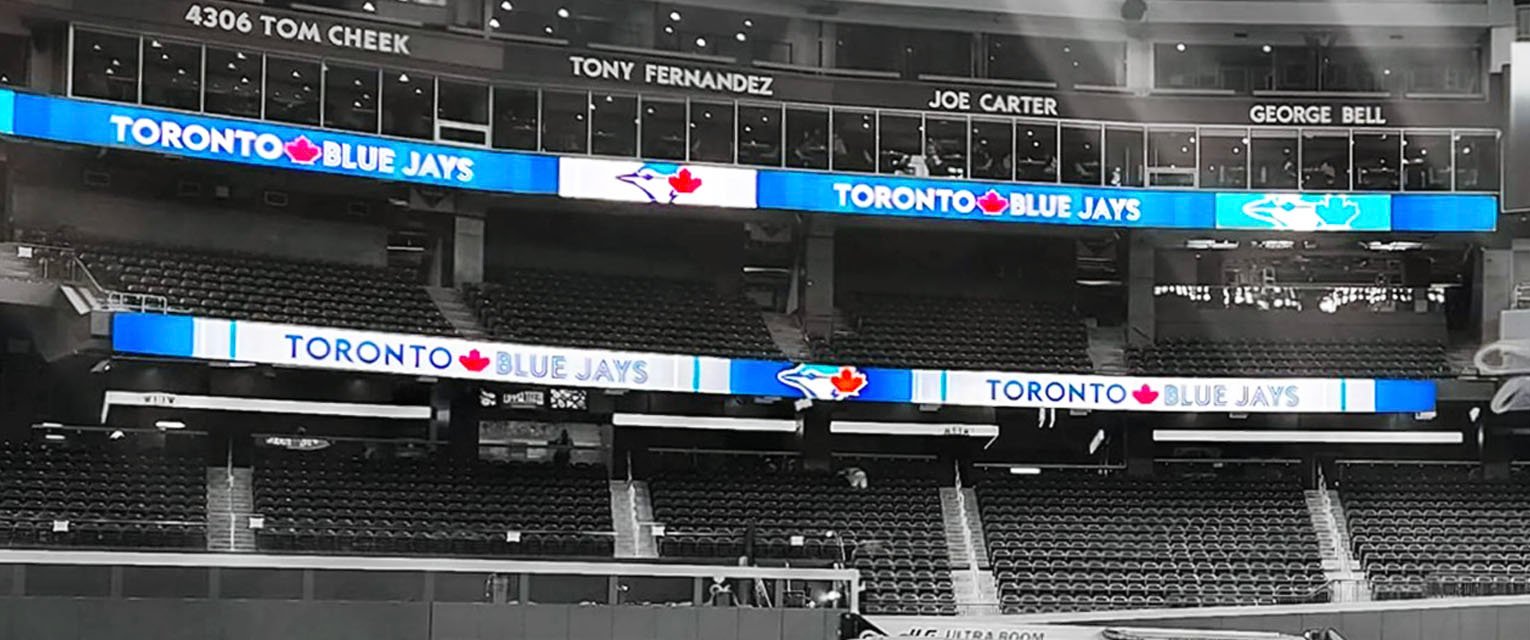

Gracefully wraps around the stadium, transforming every event into an unforgettable spectacle.
APRO-R SERIES Description
APRO-R Series outdoor LED ribbon board displays are crafted to elevate stadiums and outdoor venues, wrapping seamlessly around arenas to showcase vibrant advertisements, dynamic animations, promotions, scores, and statistics. Our LED ribbon fascia boards deliver brilliant, uniform visuals that energize every game-day moment.
Typically, the screen features top service access and an ultra-slim, customizable panel design that supports curved and 360° installations. This ensures a perfect fit for end zones, sidelines, outfields, concourses, or stadium exteriors.
We recommend a pixel pitch of P10.
Key Features

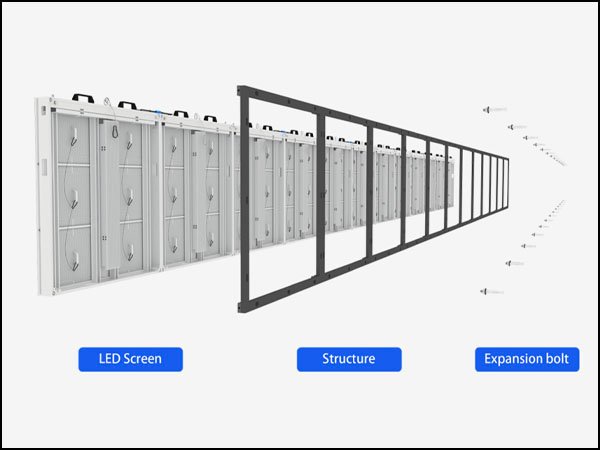

All Inclusive LED Package
Our comprehensive package covers both LED screens and tailor-made structures, guaranteeing flawless installation every time.

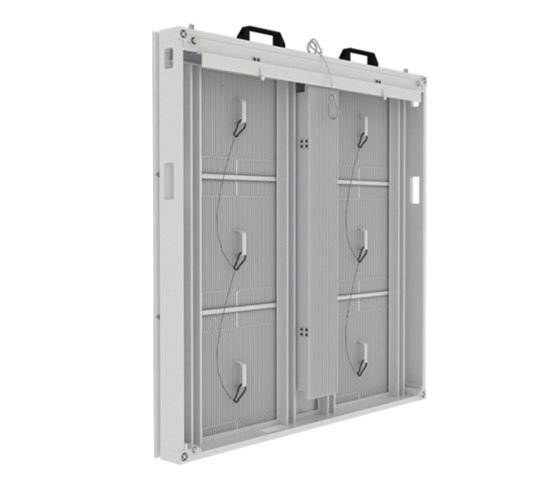

A Slim and Lightweight Design
With its slim, lightweight design, fans enjoy unobstructed views while the stadium’s appearance is elevated to new heights

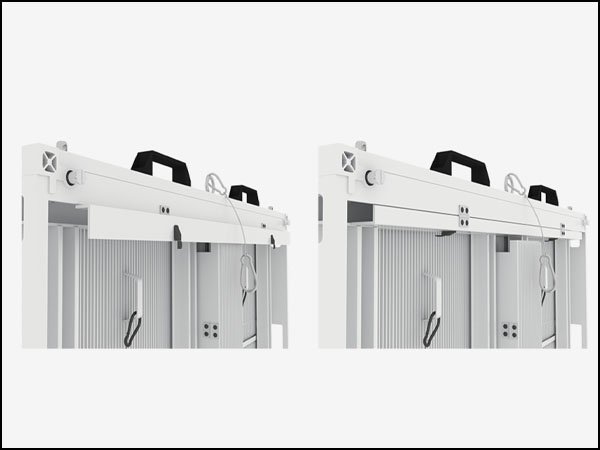

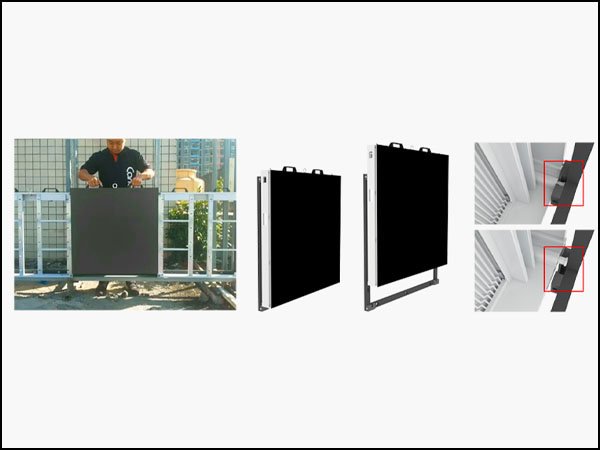

Top Serviceable
With the convenient top-access feature, you can service the unit quickly without costly lifts, while the thoughtfully designed handle makes installation and maintenance effortless.

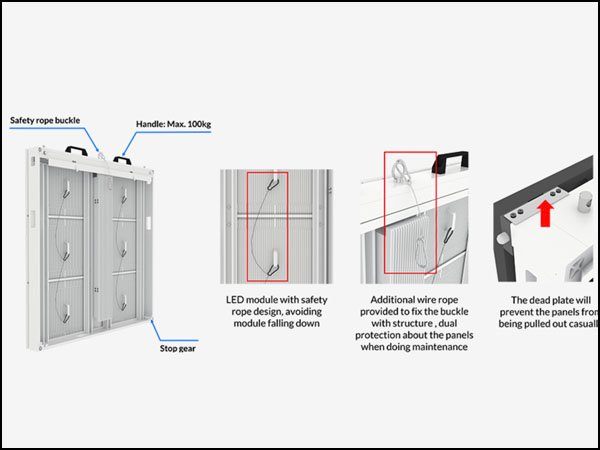

Super Safety Design

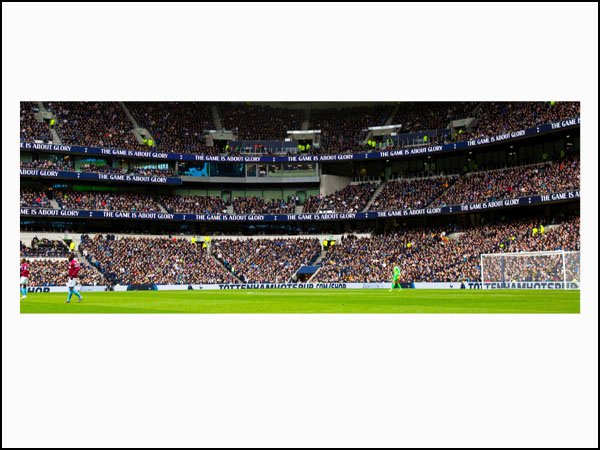

Curved & 360° Installations Achievable
Delivering a versatile solution that shines in end zones, along sidelines, wrapping around stadiums, stretching across outfields, weaving through concourses, enhancing stadium exteriors, and fitting seamlessly into any linear space.

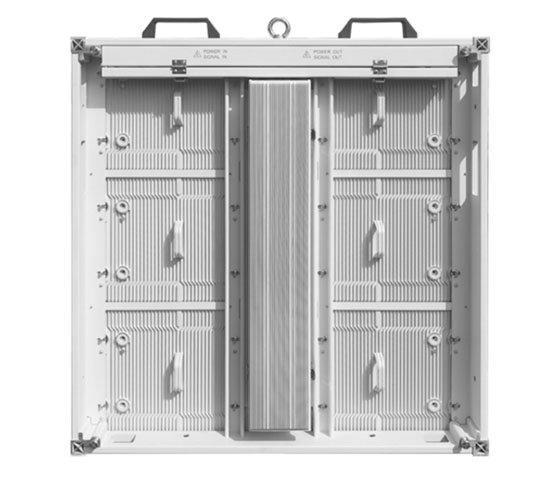

Super Stable - Engine cooling technology
* Enjoy energy savings and cool operation with our common cathode, fan-free design. * The all-aluminum bottom shell ensures excellent heat dissipation, powered by advanced engine-inspired technology for maximum efficiency. * Built with premium materials from top brands and rigorously tested in extreme temperatures, our products deliver unwavering stability. Experience wireless connectivity that outperforms traditional 5V cable connections in reliability.
Curved Splicing
Curved splicing is available, allowing us to craft unique display effects tailored to the stadium’s vision.
Super Safe- IP66 Waterproof
Redundancy Support for Power Supply and Receiving Card
Offers both power and signal redundancy, giving operators peace of mind and guaranteeing uninterrupted operation, even during power outages or signal loss.
Large Viewing Angle
Discover SMD lamps that deliver a wide 160 ° x 160° viewing angle for an immersive experience.

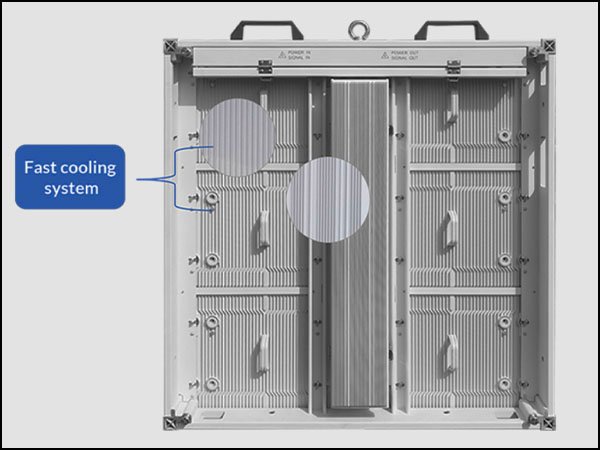

Fast Cooling

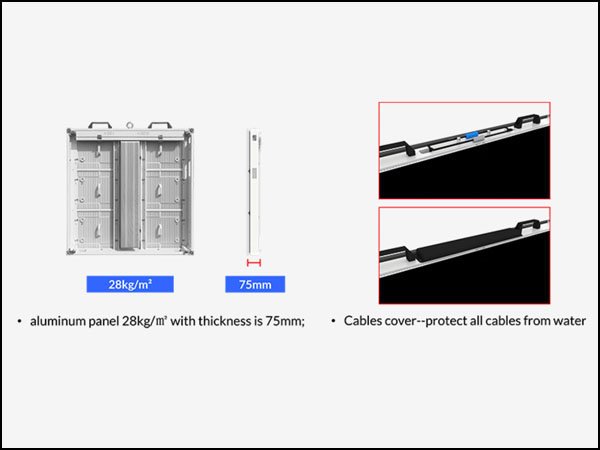

Cable-less Design
At the top of the panel, power and data cables are cleverly tucked away, keeping everything neat and out of sight.
Texture LED Series Specifications
3840Hz
Refresh Rate5500-9000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioAPRO-R SERIES 10MM SMD OUTDOOR-A10PRO-R
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
48x32dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79nch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Top Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
