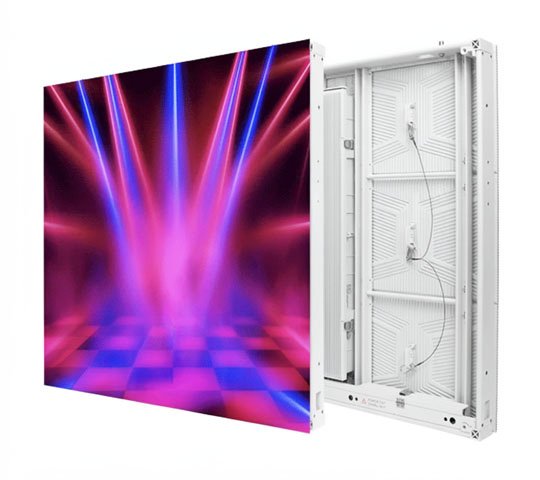

APro-S Series
ETL Certified Full Aluminum Digital Billboard
8000-nit LED Billboard Built for Extreme Conditions with IP66 , Power & Data Redundancy.
A PRO-S SERIES Description
APRO-S Series – Cost-Effective 8000nits Outdoor Digital LED Billboard
Maximize Your Advertising ROI, Day and Night
Engineered for demanding outdoor environments, the APRO-S Series delivers ultra-high 8000 nits brightness—ensuring clear, vivid visuals even in direct sunlight. Built for 24/7 operation, it’s the ideal solution for sun-exposed regions where maximum visibility and high ROI are essential.
Key Features:
-
Extreme Brightness: 8000 nits, sunlight-readable
-
Full Aluminum Cabinet: Lightweight, fanless design for efficient heat dissipation, zero deformation
-
Energy Saving: Up to 40% lower power consumption
-
Flexible Installation: Supports flat, curved, and right-angle setups
-
Durability: IP66 waterproof, 5VB fire rating, and wide operating temperature (-40°C to +70°C)
-
Maintenance Access: Front and rear serviceable
- Power & Data Redundant Option
-
Cabinet Size: 960×960mm
-
Available Pixel Pitches: P5, P6, P8, P10

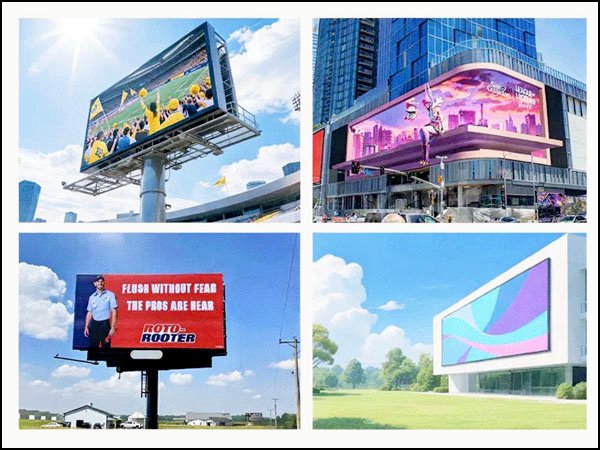

Ideal for outdoor advertising, roadside billboards, building façades, and high-traffic commercial spaces, the APRO-S Series combines powerful performance with smart design—delivering dependable operation and outstanding visibility around the clock.
Key Features

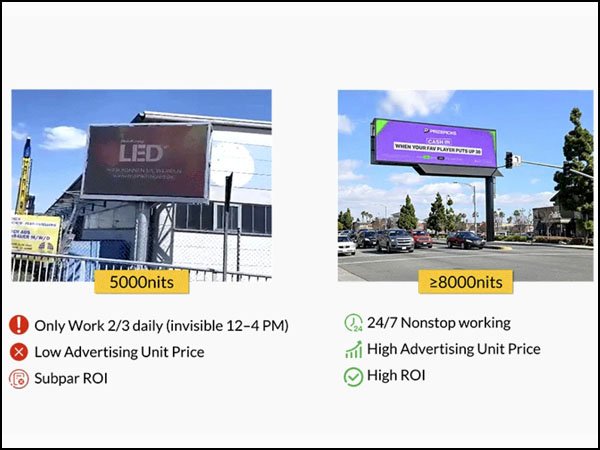

Outdoor LED Challenges

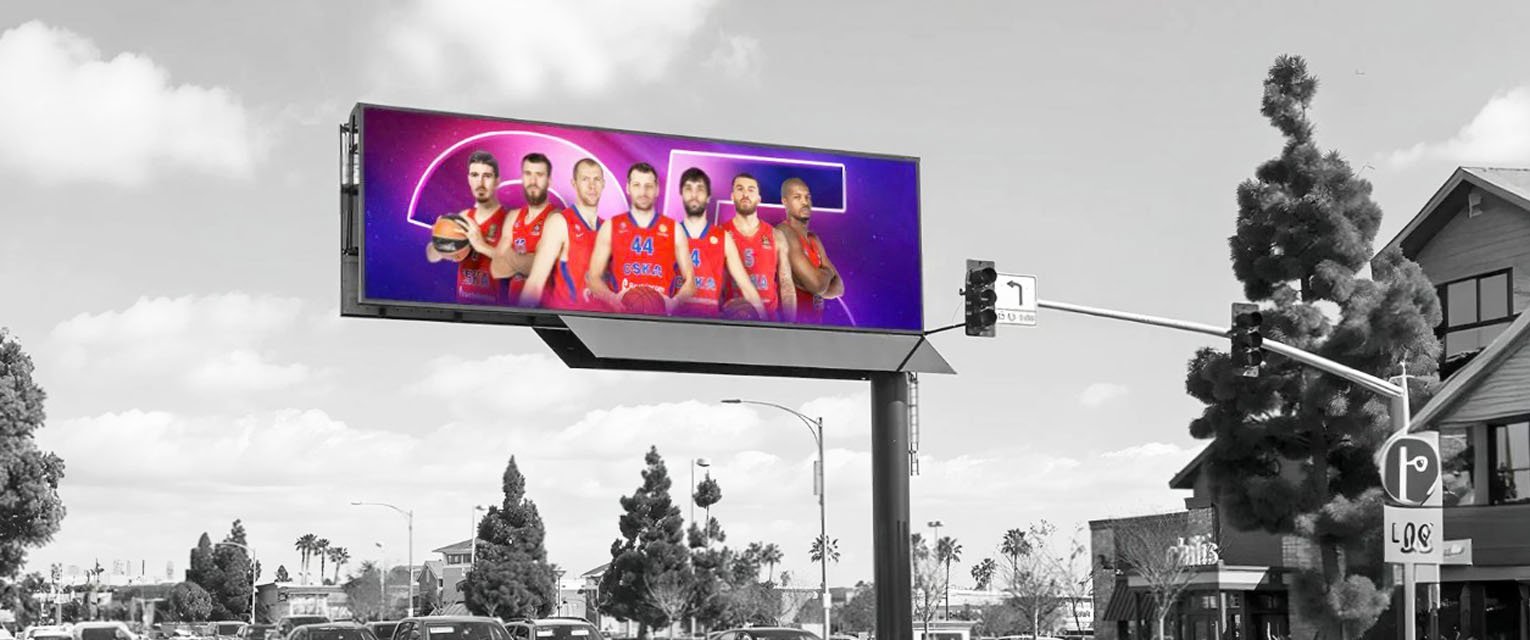

APRO-S-Brightens Every Moment
Experience unbeatable value with our high-brightness aluminum display, designed to shine around the clock.

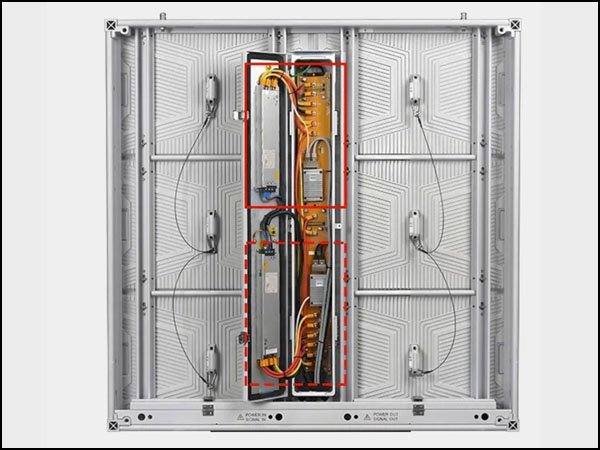

Dual Backup System
The APRO-S Series keeps your screens running smoothly with built-in power and data backup for uninterrupted performance. Its exceptional reliability makes it the smart solution for advertising displays.
Ultra-Bright 8000+ Nits, Maximum Visibility, and Maximum ROI
Boasting over 8000 nits of brightness and customizable settings, this powerhouse LED display shines brilliantly even under the midday sun. Engineered for nonstop operation, it offers a rugged, energy-efficient way to keep your message vivid and your investment working day and night.

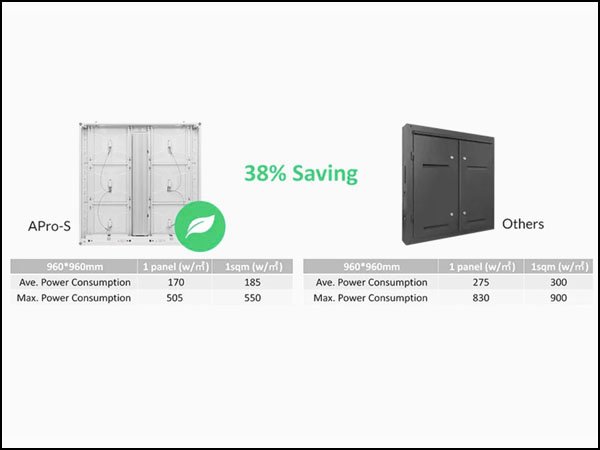

Energy-Saving Design
Thanks to its innovative voltage-dividing power system, energy use drops dramatically, slashing daily operating costs by up to 40%.

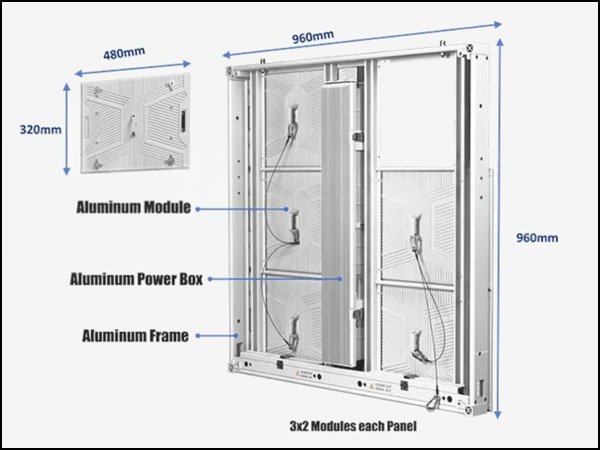

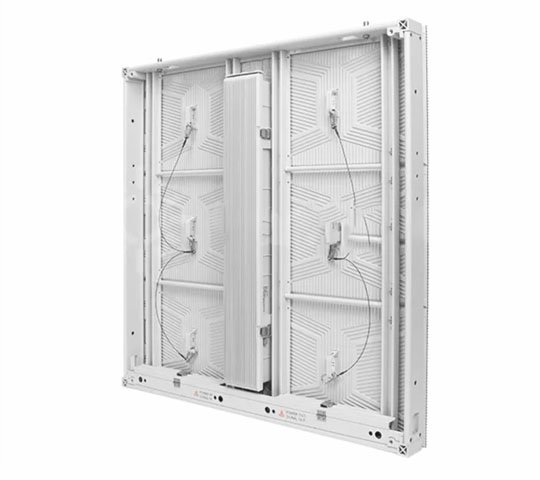

Full Aluminum Module + Frame + Power box
Crafted entirely from aluminum, our LED modules feature an integrated heat-sink chassis that delivers powerful, silent cooling. Their featherlight design reduces structural demands, slashes installation costs, and eliminates the need for air conditioning.

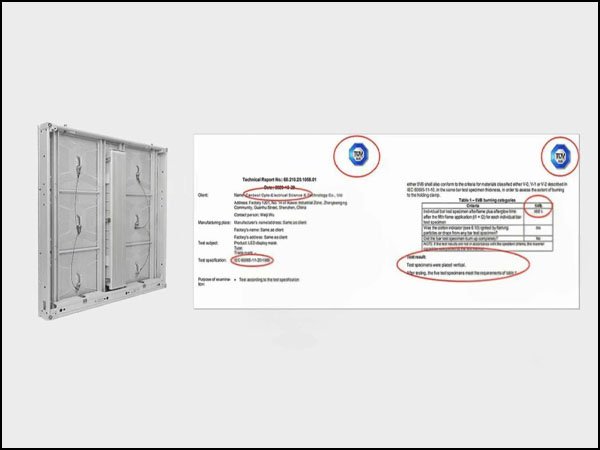

Super Safe -5VB Fire Rating

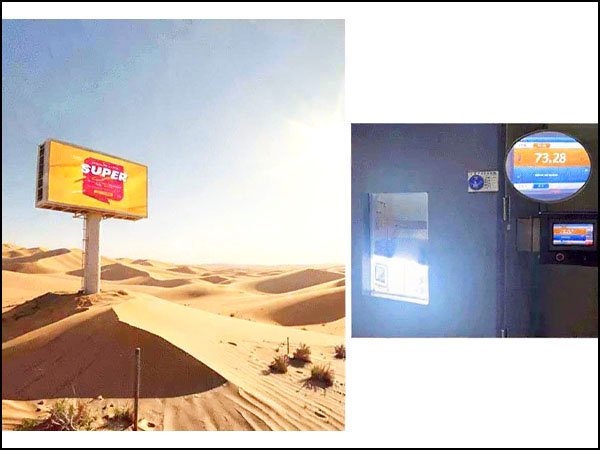

Extremely Hot Resistance
Engineered to thrive in scorching conditions, it performs reliably at temperatures up to 70℃, making it perfect for outdoor, sun-drenched, or demanding industrial settings.

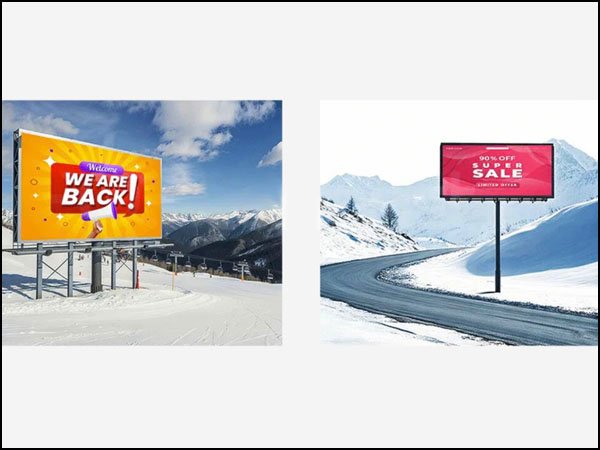

Low Temperature Resistance
Braves bone-chilling lows down to -40 ℃, effortlessly conquering even the most relentless cold.

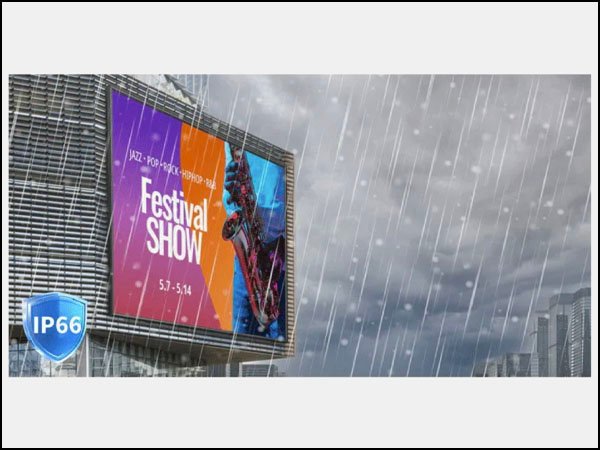

IP66 Waterproof

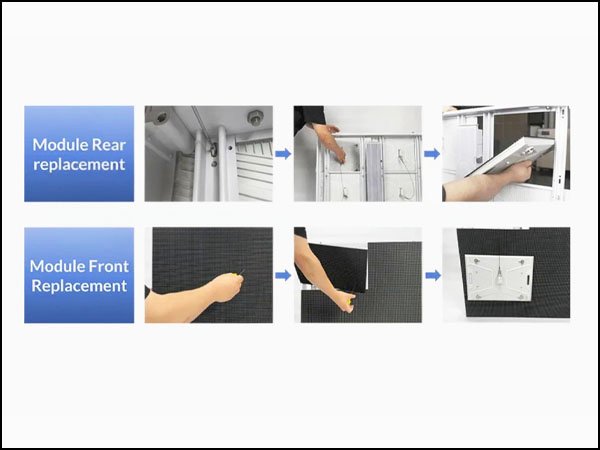

Front & Rear Maintenance
By eliminating the rear access channel, the design achieves a streamlined look while keeping costs impressively low.

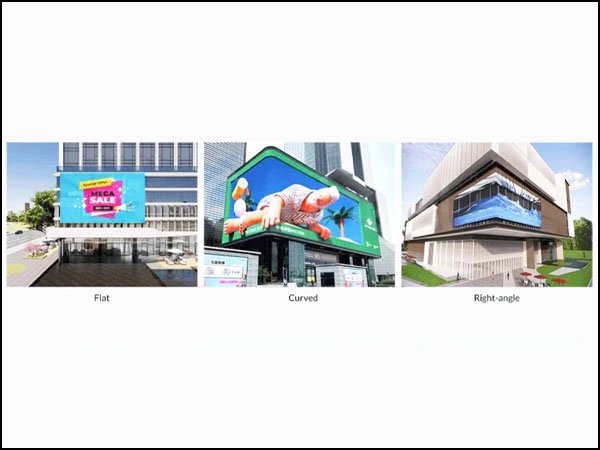

Flexible Installation
ETL, CE, FCC, and RoHS Certified
Built to meet international safety and quality standards, this solution delivers dependable performance and helps your projects gain approval with ease.

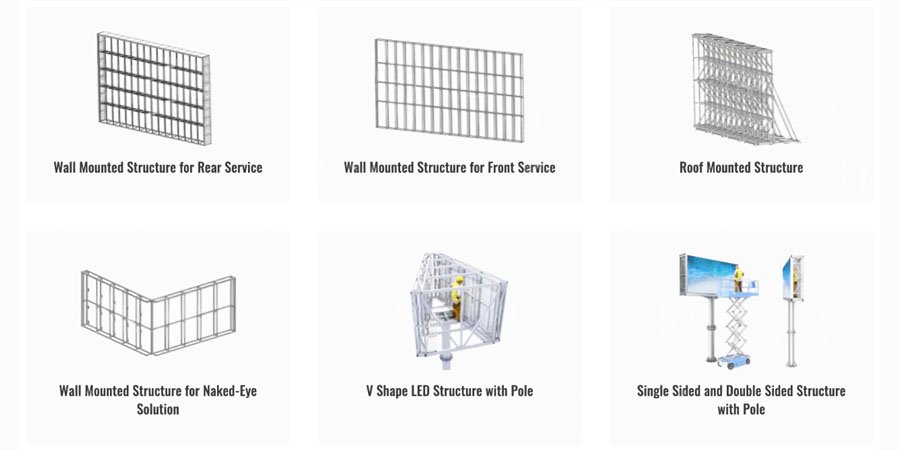

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate8000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000：1
Contrast RatioAPRO-S SERIES 5.7MM SMD OUTDOOR-APRO5-S
▾
PIXEL PITCH::
5.7mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
84x56dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
8000 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
27Kgs ( 59.52 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-40℃~+70℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO-S SERIES 6.67MM SMD OUTDOOR-APRO6-S
▾
PIXEL PITCH::
6.67mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
72x48dots
CABINET PIXEL RESOLUTION ( H X W)::
144x144dots
BRIGHTNESS::
8000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
27Kgs ( 59.52 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-40℃~+70℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO-S SERIES 8MM SMD OUTDOOR-APRO8-S
▾
PIXEL PITCH::
8mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
60x40dots
CABINET PIXEL RESOLUTION ( H X W)::
120x120dots
BRIGHTNESS::
8000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
26Kgs ( 57.32lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-40℃~+70℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO-S SERIES 10MM SMD OUTDOOR-APRO10-S
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
48x32dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
8000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-40℃~+70℃
