WHALE Series
Ideal For Coastal & Seaside Applications
The WHALE Series is an outdoor high-brightness LED screen, built to shine brilliantly and withstand the elements with exceptional durability and corrosion resistance.
WHALE SERIES Description
-The WHALE Series LED Display is purpose-built to thrive in the toughest, most corrosive environments, from bustling seaside resorts and marinas to poolside venues and coastal cityscapes. Its robust, corrosion-resistant coatings and advanced treatments, combined with a fully sealed IP66-rated aluminum cabinet, provide unwavering protection against moisture, salt, and dust.
Boasting brightness levels that soar to 12,000 nits, the WHALE Series ensures your message shines brilliantly, even under the midday sun. Its cutting-edge thermal management system boosts reliability over time, while its energy-saving design makes it a savvy solution for continuous outdoor performance.
Choose from pixel pitches of P5.7, P6.7, P8, or P10, all in a generous 960×960mm panel. With both front and rear maintenance options, installation and servicing are effortless. The WHALE Series stands out as the ultimate choice for outdoor digital signage, even in the most challenging coastal and high-humidity settings.
Key Features
Black Nano Antioxidant Coating
A unique black nano-coating shields the cabinet from harsh sunlight and ultraviolet rays by the sea, keeping its color vibrant and its surface strong, so it looks new and lasts longer.

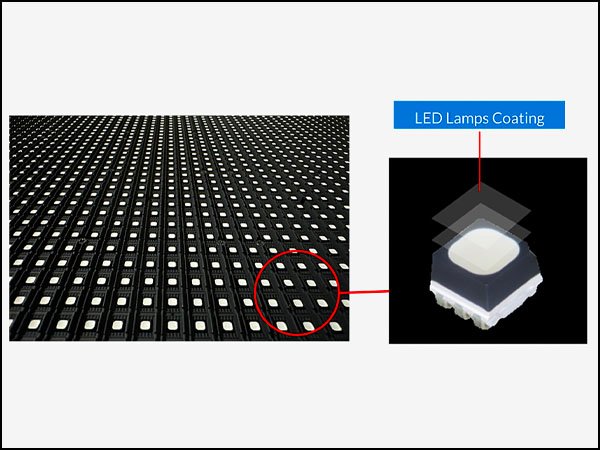

Nano-coating for LED Lamp Beads
Thanks to a unique nano-coating, LED lamps gain exceptional waterproof abilities, shielding them from moisture, dead bulbs, faulty soldering, and wire oxidation. This powerful protection stands strong even in the salty, humid air by the sea, ensuring the lamps remain reliable and stable.

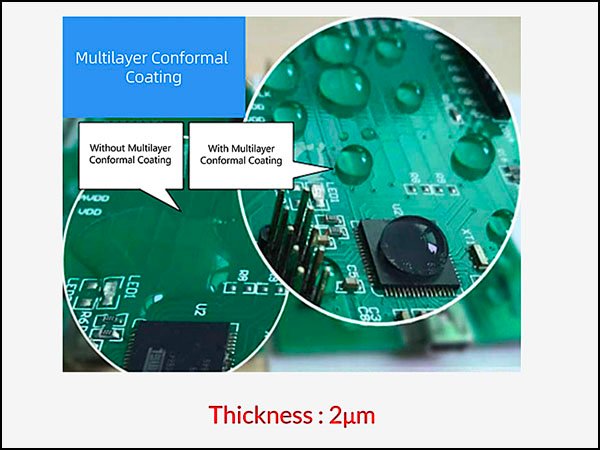

Multilayer Conformal Coating
Every display and power adapter board in the Whale series is protected by a robust, multi-layer, triple-proof coating. This protection keeps electronic components safe from the salty, humid seashore air, ensuring the products remain stable and reliable.

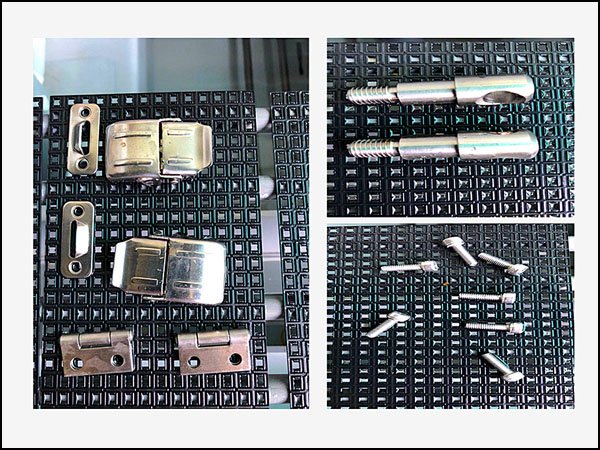

All Components are Corrosion-resistant
After 72 hours of salt spray testing, the power supply, mask, locker, screws, and pins showed impressive results: the test area displayed no discoloration, and the inner coating remained free of corrosion.

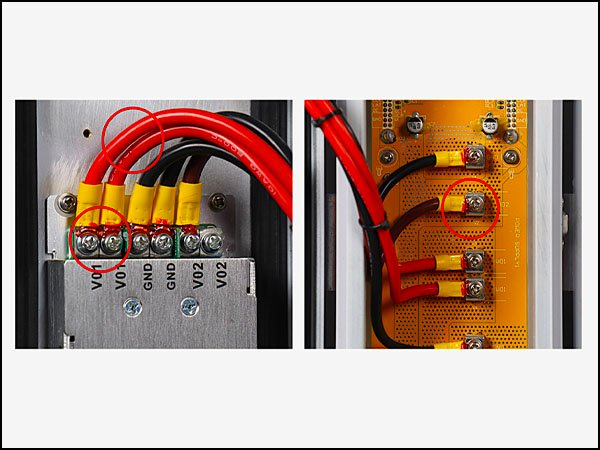

High Flame Retardant Silicone Wire
-Premium silicone wire withstands extreme heat, enduring temperatures up to +200 degrees.
-Every power cable terminal is fortified with anti-slip adhesive, guaranteeing flawless power transmission without a single fault.
Corrosion-Proof
After 72 hours of rigorous salt testing, not a single lamp bead failed.

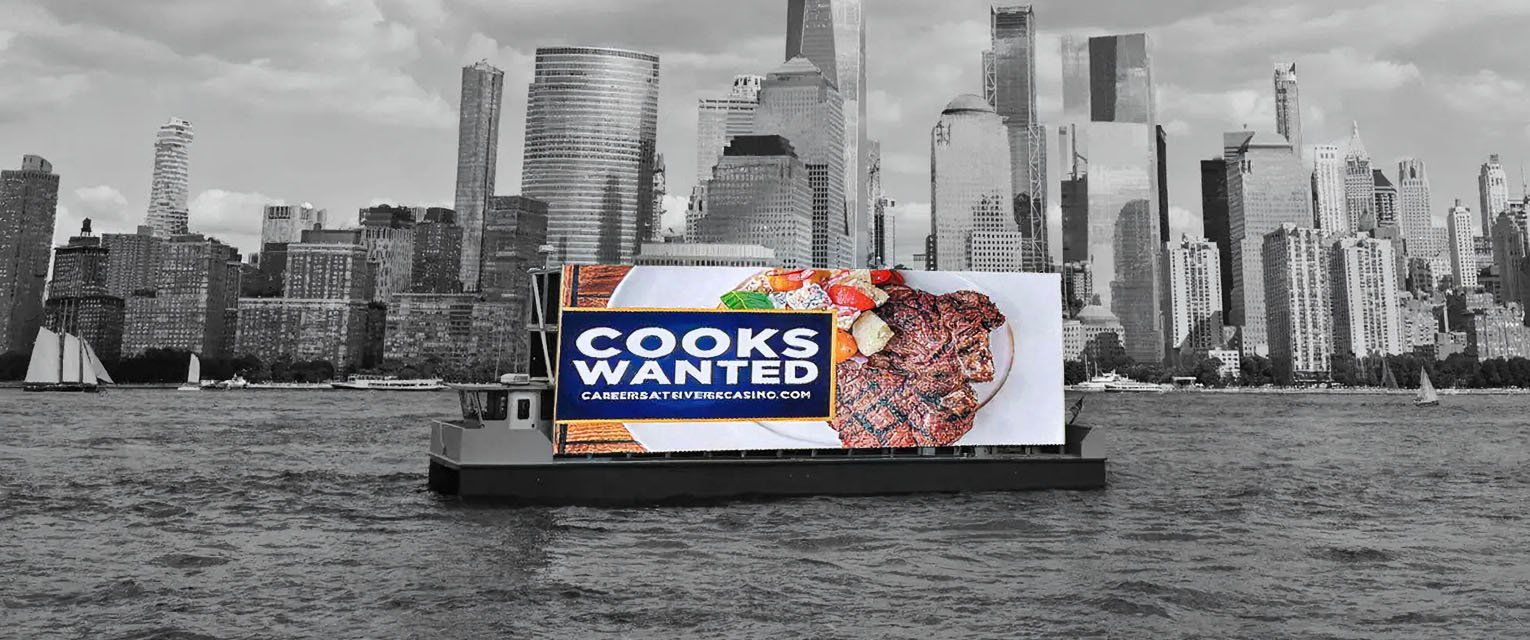

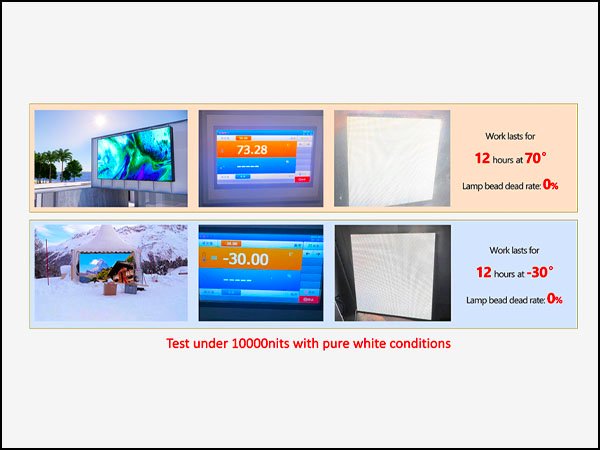

Excellent Performance for Harsh conditions
Perfectly suited for everything from icy winters to scorching summers, whether by the seaside or poolside and beyond

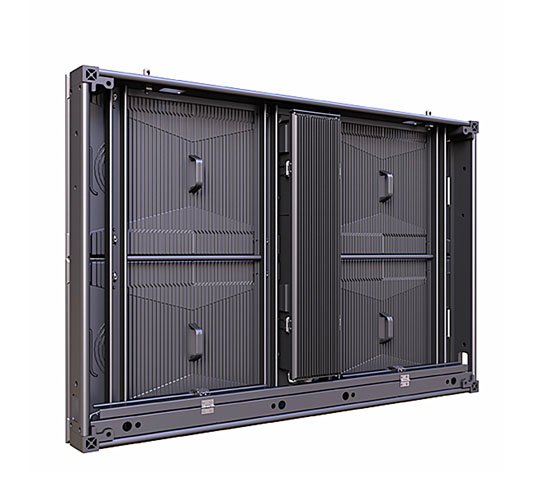

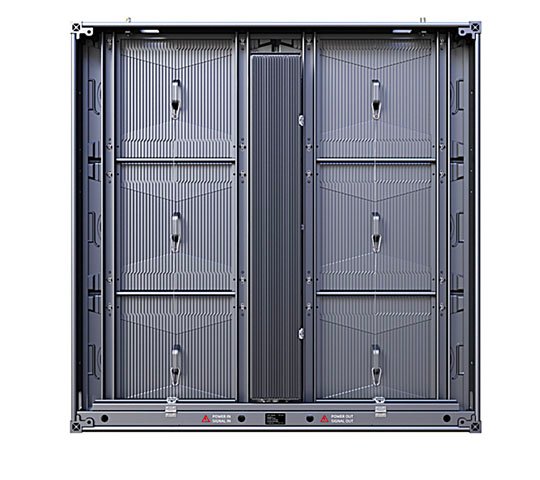

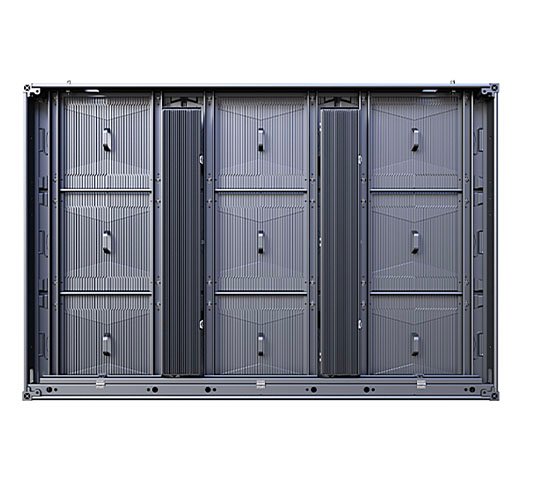

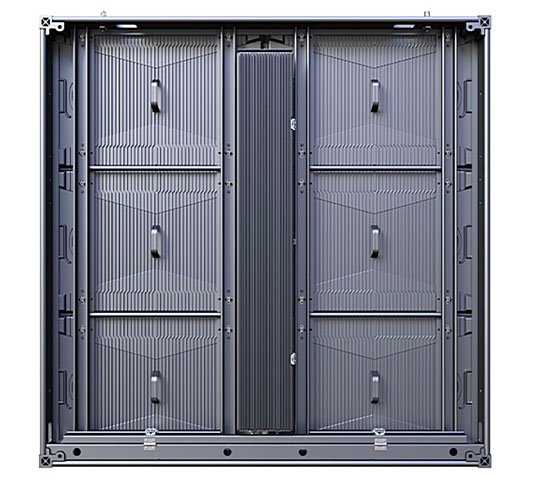

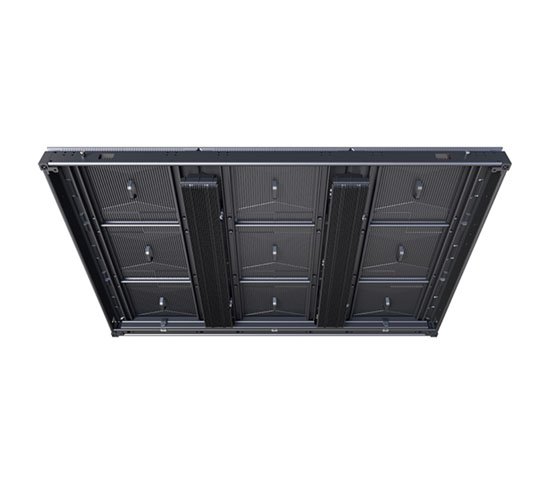

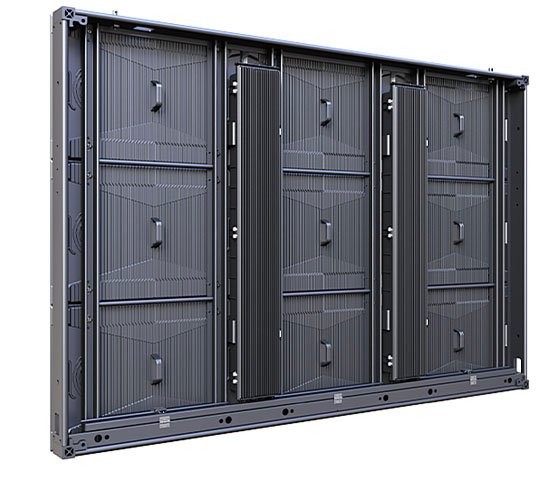

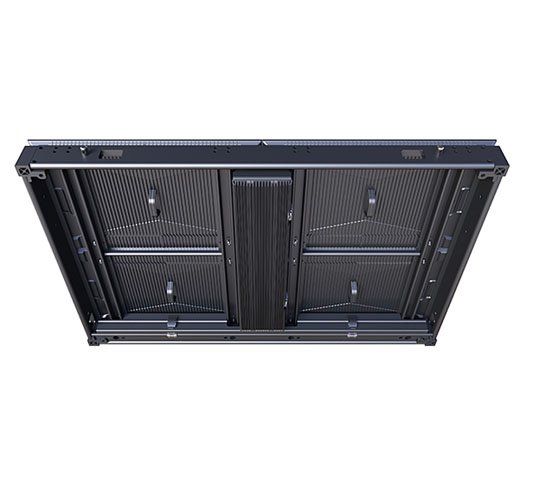

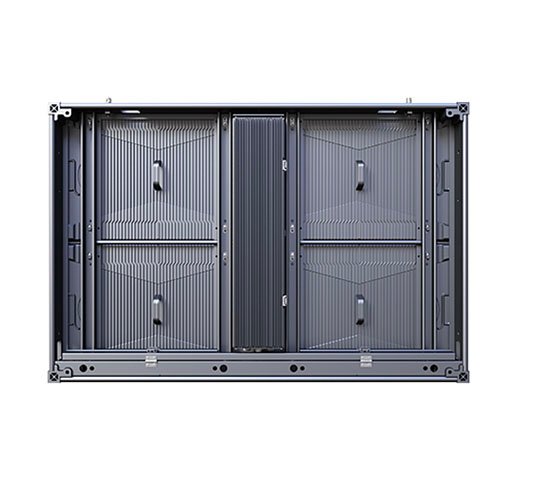

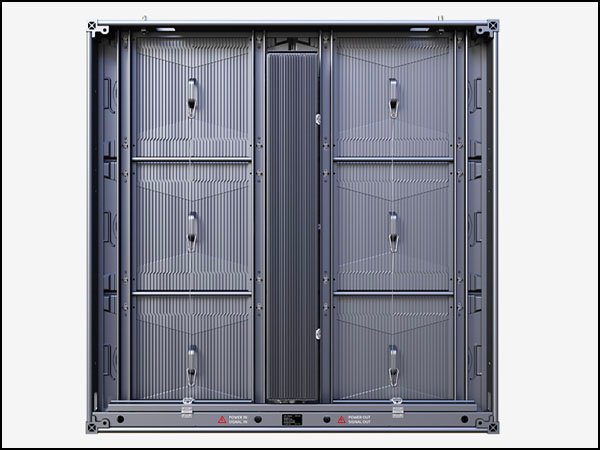

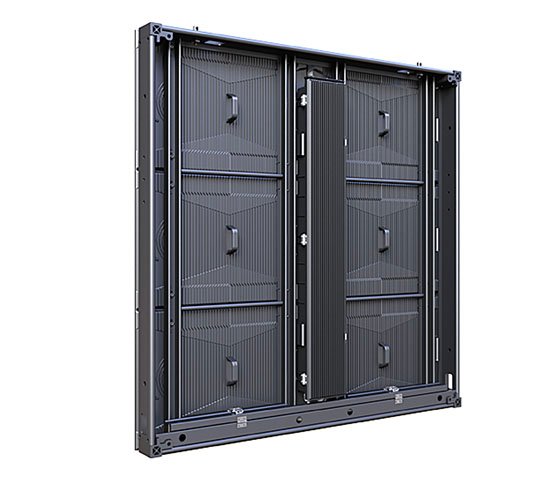

Full Aluminum, Lightweight, and Corrosion-proof
-Experience the strength of a full aluminum panel that weighs just 28kg per square meter and boasts a slim 75mm profile.
-The pure black finish looks sleek and offers enhanced rust resistance.
-Enjoy the flexibility of full front or rear maintenance, with the added convenience of direct wall installation for front access.
-The pure black finish looks sleek and offers enhanced rust resistance.
-Enjoy the flexibility of full front or rear maintenance, with the added convenience of direct wall installation for front access.

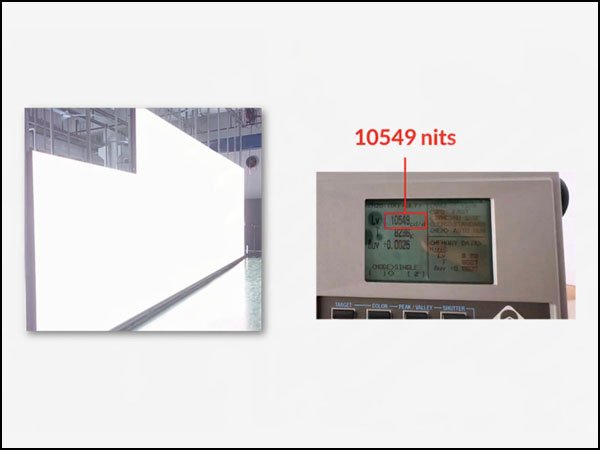

Super High Brightness
Boasting dazzling brightness above 10,000 nits and minimal light decay under 5%, it shines just as brilliantly even after five years.

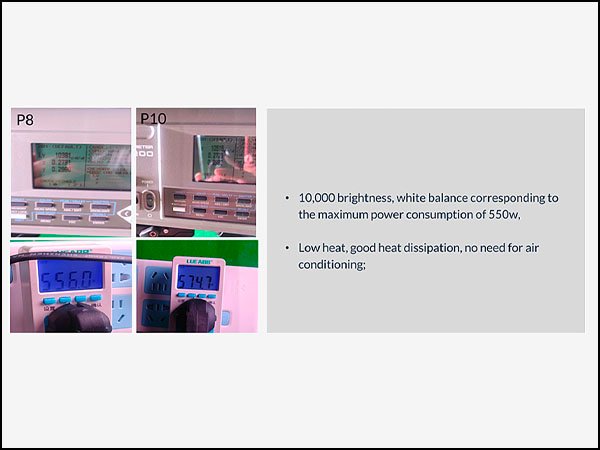

Super Energy Saving
-10,000 nits brightness, white balance corresponding to the maximum power consumption of 550w,
-Stays cool with excellent heat dissipation, eliminating the need for air conditioning.

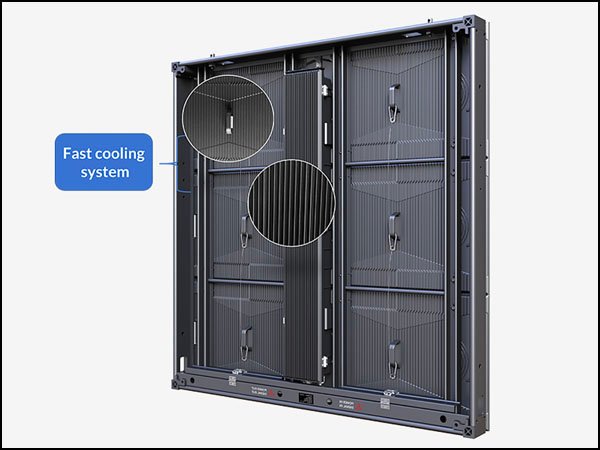

Super Stable - Engine Cooling Technology
Energy-saving design, low heat;
All aluminum bottom shell products, good heat dissipation;
Using engine principle heat dissipation technology, high heat dissipation efficiency;
The supply of big-brand raw materials, after undergoing strict high and low temperature tests, the products are stable as before
Wireless connection, higher stability than 5V cable connection;

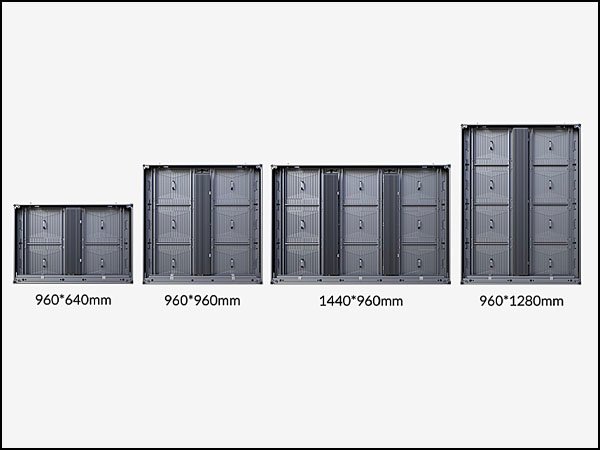

Multiple Sizes
Available sizes: 960×640/960×960/1440×960/ 960x1280mm
Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate1000-4500nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioWHALE SERIES 5.7MM SMD OUTDOOR-W5
▾
PIXEL PITCH::
5.7mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
84x56dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dot
BRIGHTNESS::
5500~7500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79nch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃`+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
WHALE SERIES 6.67MM SMD OUTDOOR-W6
▾
PIXEL PITCH::
6.67
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
72x48dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz/7680Hz
CABINET SIZE::
960x960mm ( 37.79x37.79nch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃`+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
WHALE SERIES 8MM SMD OUTDOOR-W8
▾
PIXEL PITCH::
8mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
60x40dots
CABINET PIXEL RESOLUTION ( H X W)::
120x120dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz/7680Hz
CABINET SIZE::
960x960mm ( 37.79x37.79nch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃`+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
WHALE SERIES 10MM SMD OUTDOOR-W10
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
48x32dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz/7680Hz
CABINET SIZE::
960x960mm ( 37.79x37.79nch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃`+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
