FIW Series
ETL Certified Indoor LED Video Walls
Experience the freedom of affordable, cable-free indoor LED walls. Enjoy fast delivery from our full inventory—your order arrives in just one week.
FIW SERIES Description

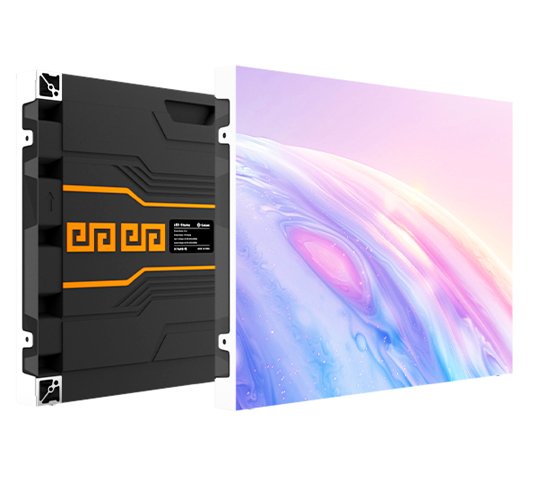

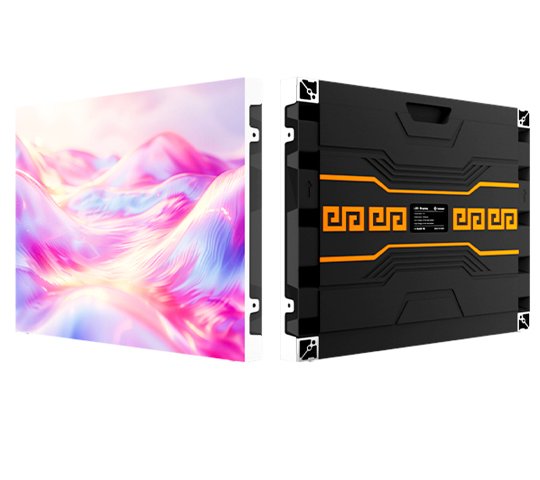

ETL-Certified Indoor LED Video Wall
The FIW Series is an ETL-certified indoor LED video wall that meets rigorous North American safety and electrical standards while ensuring dependable performance and streamlining project approval across the U.S. and Canada.

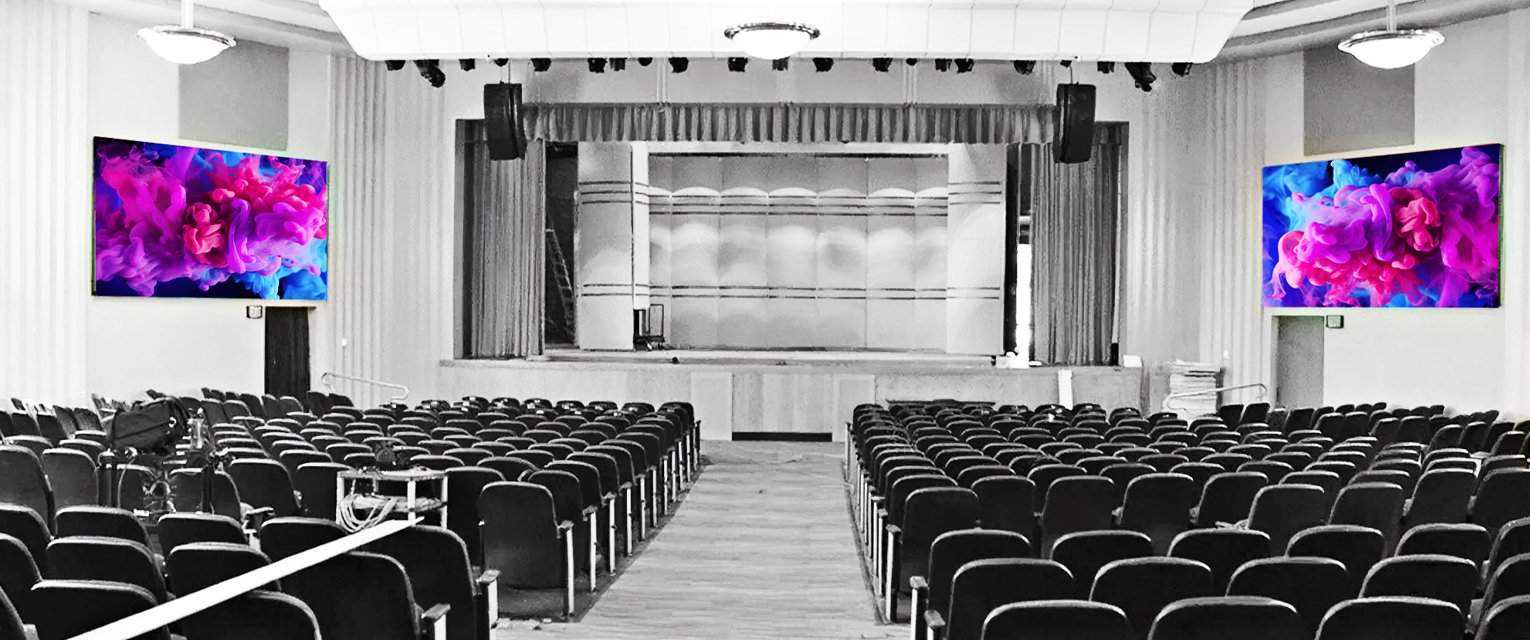

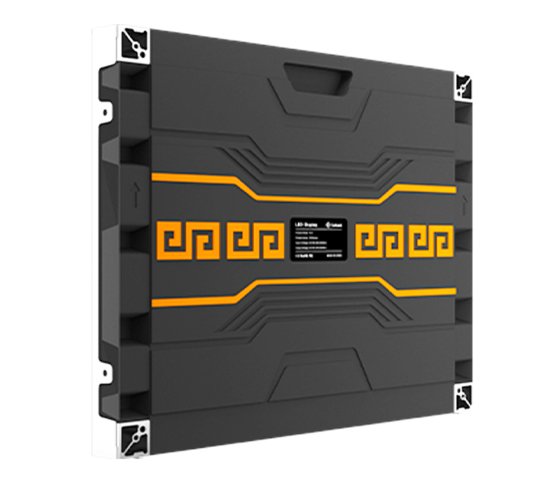

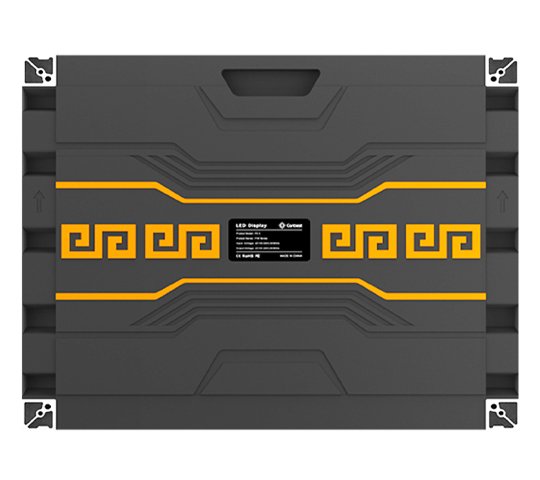

Engineered for ultra-high resolution and a sleek, cable-free look, the FIW Series boasts an all-in-one cabinet that makes installation effortless while delivering stunning image clarity. With pixel pitches ranging from P1.2 to P2.5 and support for both 2K and 4K, it transforms corporate lobbies, churches, conference rooms, retail spaces, and malls into captivating visual environments.
Thanks to its front-service modular design, edge covers, and wall-mount systems, the FIW Series offers quick installation and hassle-free maintenance. Available in both SMD and GOB technology, it delivers a robust, dependable, and truly immersive indoor viewing experience.
Key Features

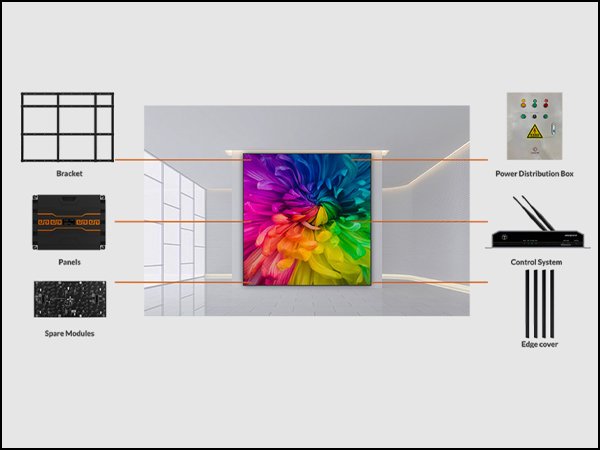

All-inclusive Package

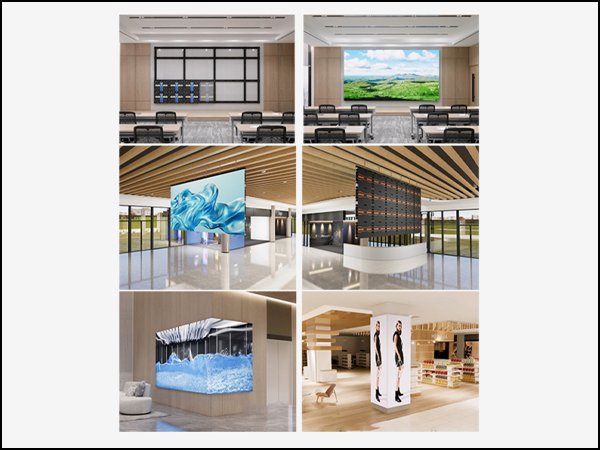

Creative Installation
Enjoy the freedom to choose from wall mounting, hanging, right-angle setups, or explore your own creative installation ideas.

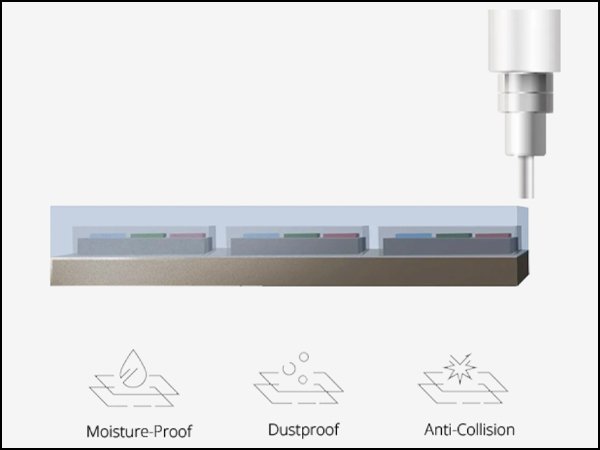

GOB Technology Available / Durable and Lasting
GOB technology transforms LED screens, making them waterproof, moisture-resistant, and impact-resistant. Maintenance and cleaning become effortless, while stability and lifespan reach new heights.

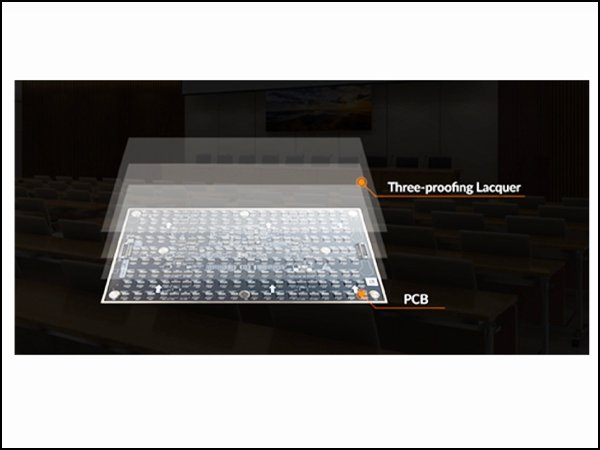

Dust-proof, Moisture-proof, and Corrosion-proof
A layer of three-proofing lacquer coats the PCB surface, creating a resilient shield that guards against dust, moisture, and corrosion. This protective film helps prevent malfunctions and extends the PCB’s lifespan.
UL Certificate
This UL-certified power supply supports 100~240V and 50/60Hz input, delivering reliable, worry-free performance anywhere in the world.

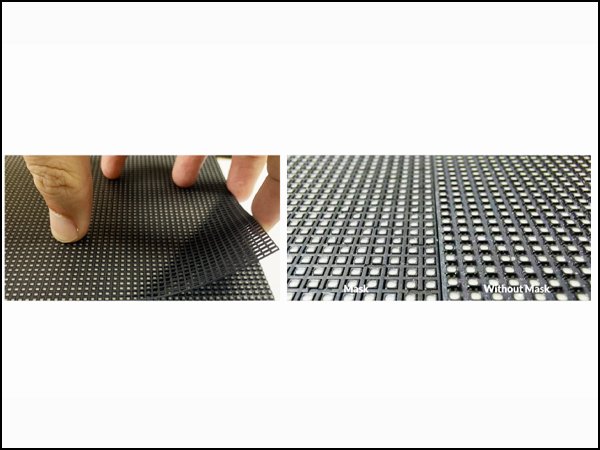

Protective Mask Design
Embedded mask design, protecting the LEDs from collision, dust-proof, reducing maintenance cost and prolong the lifespan; Higher contrast, reach better display

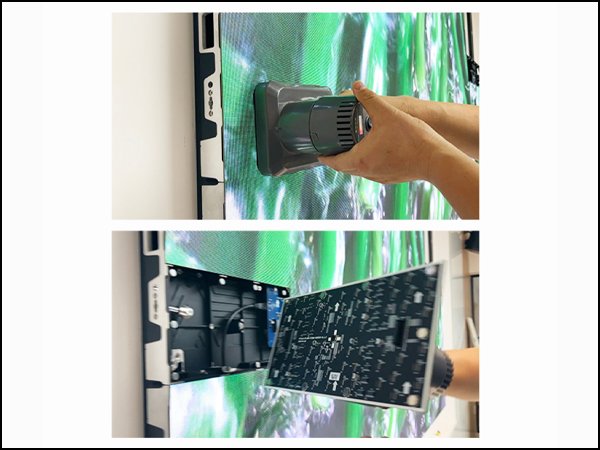

Module Cable-less and Front Access
Modules, receiving cards, and power supplies are all accessible from the front, eliminating the need for maintenance channels. This speeds up installation and helps prevent cable-related issues.

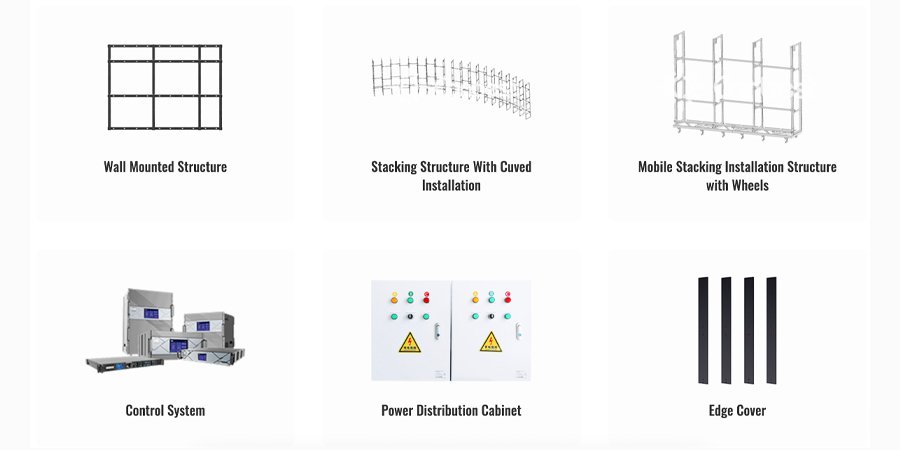

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate1000NITS
Brightness281 Trillion
Color Capability140° / 140°
Viewing Angle5000:1
Contrast RatioFIW SERIES 1.25MM SMD INDOOR-FIW121
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
256x128dots
CABINET PIXEL RESOLUTION ( H X W)::
512x384dots
BRIGHTNESS::
800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
640x480mm ( 25.19x18.89 inch)
CABINET WEIGHT::
7.4Kgs ( 16.31 lbs) ( 14.33 lbs) | 13Kgs ( 28.66 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FIW SERIES 1.538MM SMD INDOOR-FIW151
▾
PIXEL PITCH::
1.538mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
208x104dots
CABINET PIXEL RESOLUTION ( H X W)::
416x312dots
BRIGHTNESS::
800 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
640x480mm ( 25.19x18.89 inch)
CABINET WEIGHT::
7.4Kgs ( 16.31 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FIW SERIES 1.86MM SMD INDOOR-FIW181
▾
PIXEL PITCH::
1.86mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
172x86dots
CABINET PIXEL RESOLUTION ( H X W)::
344x258dots
BRIGHTNESS::
800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
640x480mm ( 25.19x18.89 inch)
CABINET WEIGHT::
7.4Kgs ( 16.31 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
100000 Hrs
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FIW SERIES 2.0MM SMD INDOOR-FIW201
▾
PIXEL PITCH::
2.0mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
160x80dots
CABINET PIXEL RESOLUTION ( H X W)::
320x240dots
BRIGHTNESS::
1000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
640x480mm ( 25.19x18.89 inch)
CABINET WEIGHT::
7.4Kgs ( 16.31 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FIW SERIES 2.5MM SMD INDOOR-FIW251
▾
PIXEL PITCH::
2.5mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
128x64dots
CABINET PIXEL RESOLUTION ( H X W)::
256x192dots
BRIGHTNESS::
1000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
640x480mm ( 25.19x18.89 inch)
CABINET WEIGHT::
7.4Kgs ( 16.31 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
