U Slim COB Series
Ultra-Slim COB Micro LED Screen
Discover the ultimate super-slim, seamless solution that transforms any indoor space with effortless style.
U Slim COB SERIES Description

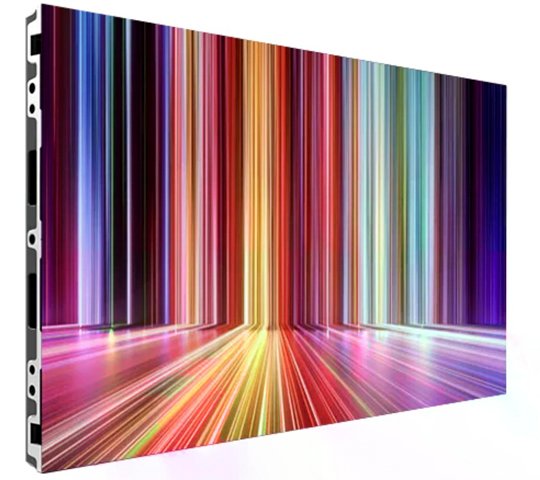

U Slim COB Series – Ultra Slim Micro LED Screen
The U Slim COB Series redefines indoor LED displays with its ultra-slim profile and cutting-edge Chip-on-Board (COB) technology, delivering exceptional durability, energy savings, and vivid visuals. Its expansive 150×337.5mm vertical module and 600×337.5mm panel, crafted in a true 16:9 ratio, create immersive 4K and 8K video walls with barely-there bezels.
Choose from P0.9, P1.2, or P1.5 models to experience razor-sharp clarity and flawless color, even up close. The innovative COB “cool screen” design boosts contrast, brings HDR content to life, and keeps energy use low, making it perfect for nonstop indoor environments.
Engineered for effortless upkeep and dependable performance, the all-in-one design features front serviceability and built-in power and data backup. Enjoy versatile installation options, whether wall-mounted, suspended, or elegantly curved on the ground.
Applications include:
-
Executive boardrooms & control rooms
- High education
-
Broadcast studios
-
Luxury retail & hospitality
-
Art exhibitions & digital signage
-
Command & operations centers
Key Features

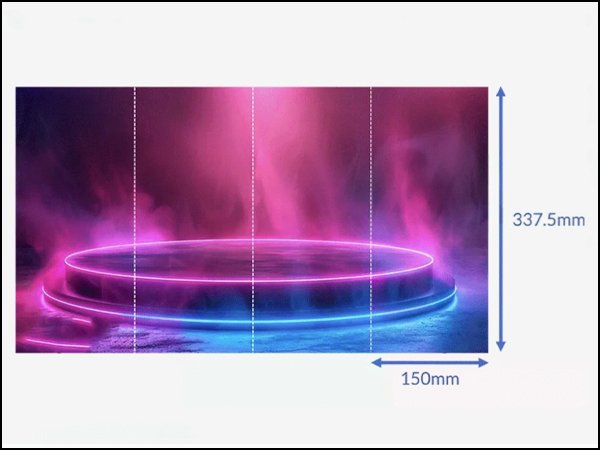

Seamless Excellence / Large LED Modules
With four vertical panels, creases are minimized, creating a smoother, more uniform surface and flawless splicing that truly shines in large-scale applications.

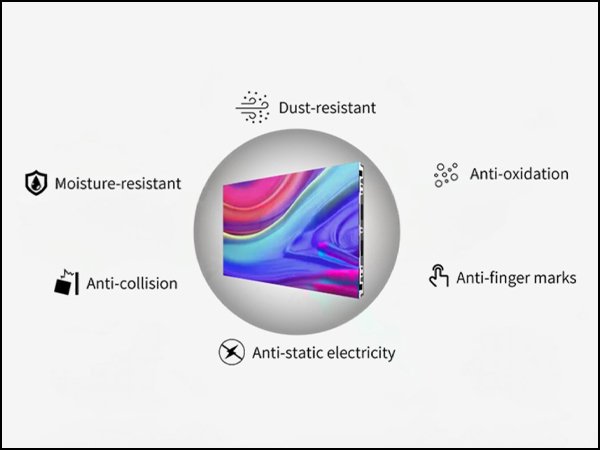

Ultimate Durability
Engineered to thrive in the harshest conditions, the U Slim Series withstands impact, dust, and moisture, ensuring unwavering reliability and lasting performance.

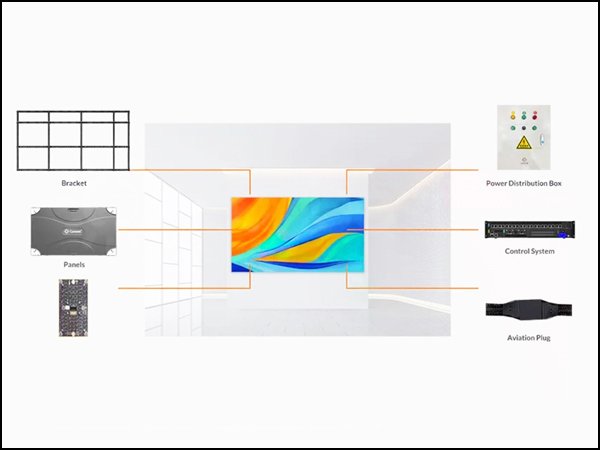

All inclusive Package
High Dynamic Range (HDR) Support
Displays now embrace High Dynamic Range content, unlocking every pixel to reveal dazzling whites, velvety blacks, and colors that feel remarkably lifelike.

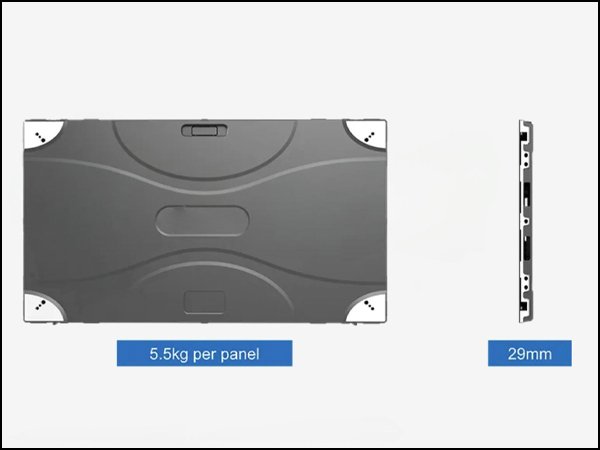

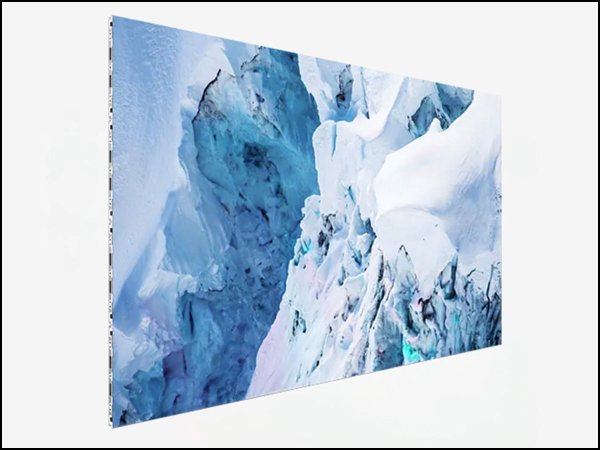

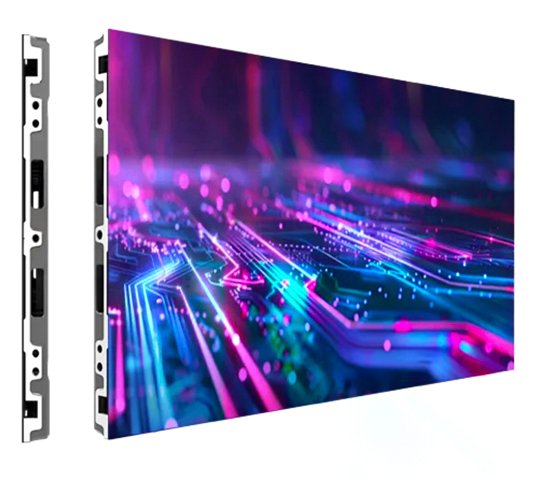

Ultra Slim Depth and Lightweight
With a profile just 29mm thin and a weight of only 5.5 kg, this LED screen commands attention. Its elegant, featherlight form slips easily into any space, merging naturally with its surroundings.

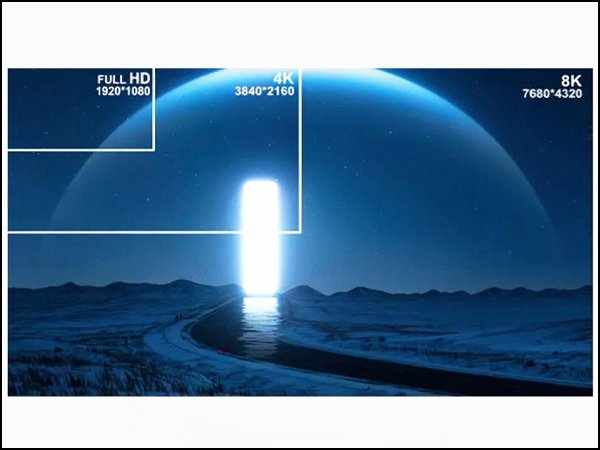

4K and 8K Resolution
Aluminum cabinets with a 16:9 aspect ratio, offering ultra-clear HD, 4K, and 8K visuals for an exceptional viewing experience.

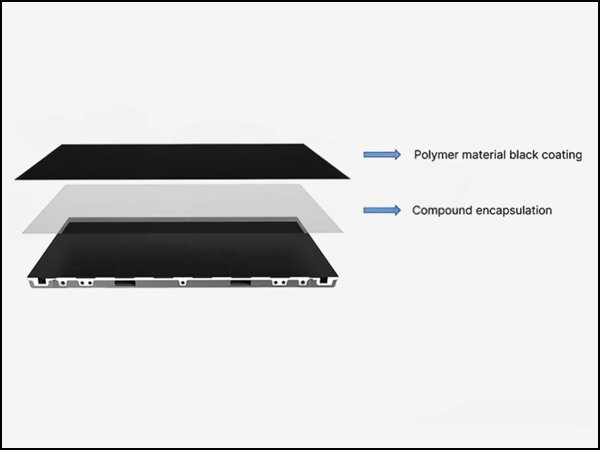

Unmatched Deep Blacks
Micro LED technology shines with intense brightness and stays cool under pressure. Its surface, wrapped in a tough black polymer, guarantees deep, uniform blacks every time.
The 4-layer Board Design
With its advanced wiring and optimized power flow, the 4-layer board elevates LED display stability and white balance while shielding against interference. The result is vibrant, true-to-life visuals free of color distortion.
Cool Screen
Powered by flip-chip COB and common-cathode technology, the U Slim COB Series keeps cool and dazzles with vibrant, seamless visuals.

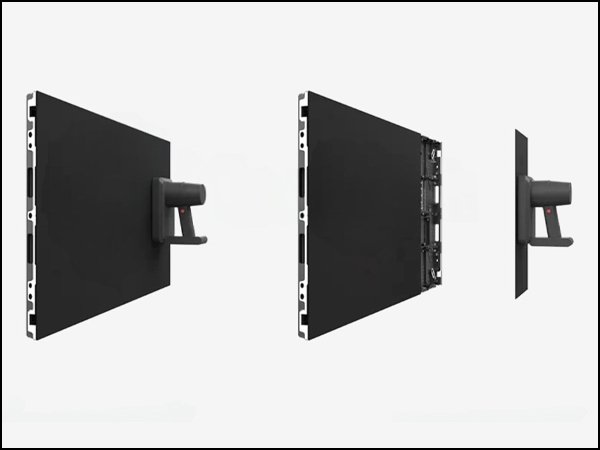

Full-Front Serviceability
Enjoy hassle-free maintenance of modules, power supplies, and internal components, all accessible from the front—perfect for tight spaces where every inch counts.

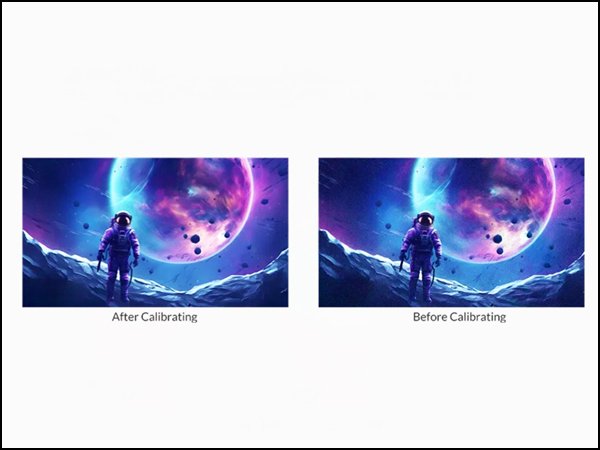

Memory On Module Management
-Memory on Module management is optional for color calibration.
-With automatic color calibration, your visuals become more vibrant and true-to-life.
-The intelligent module design seamlessly detects and applies your uploaded screen calibration data.

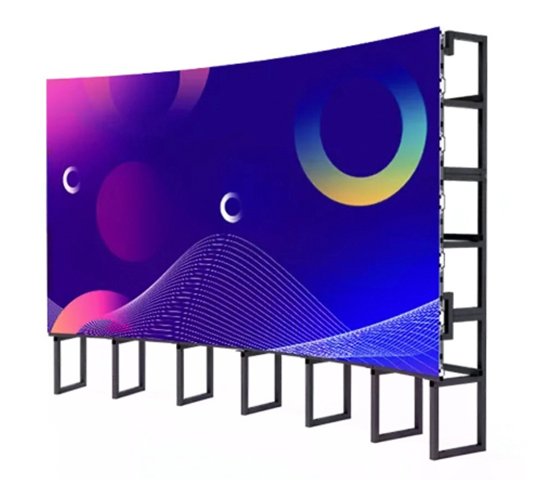

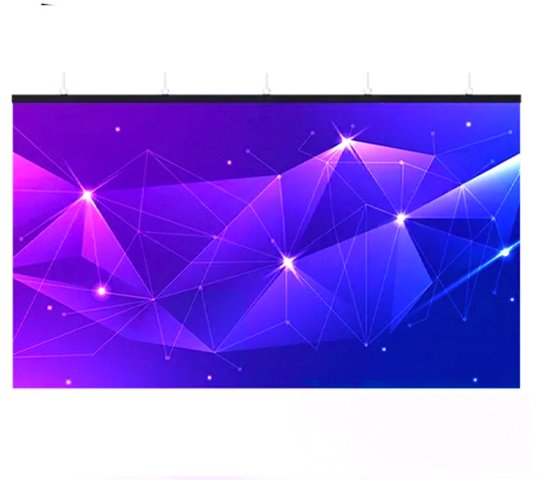

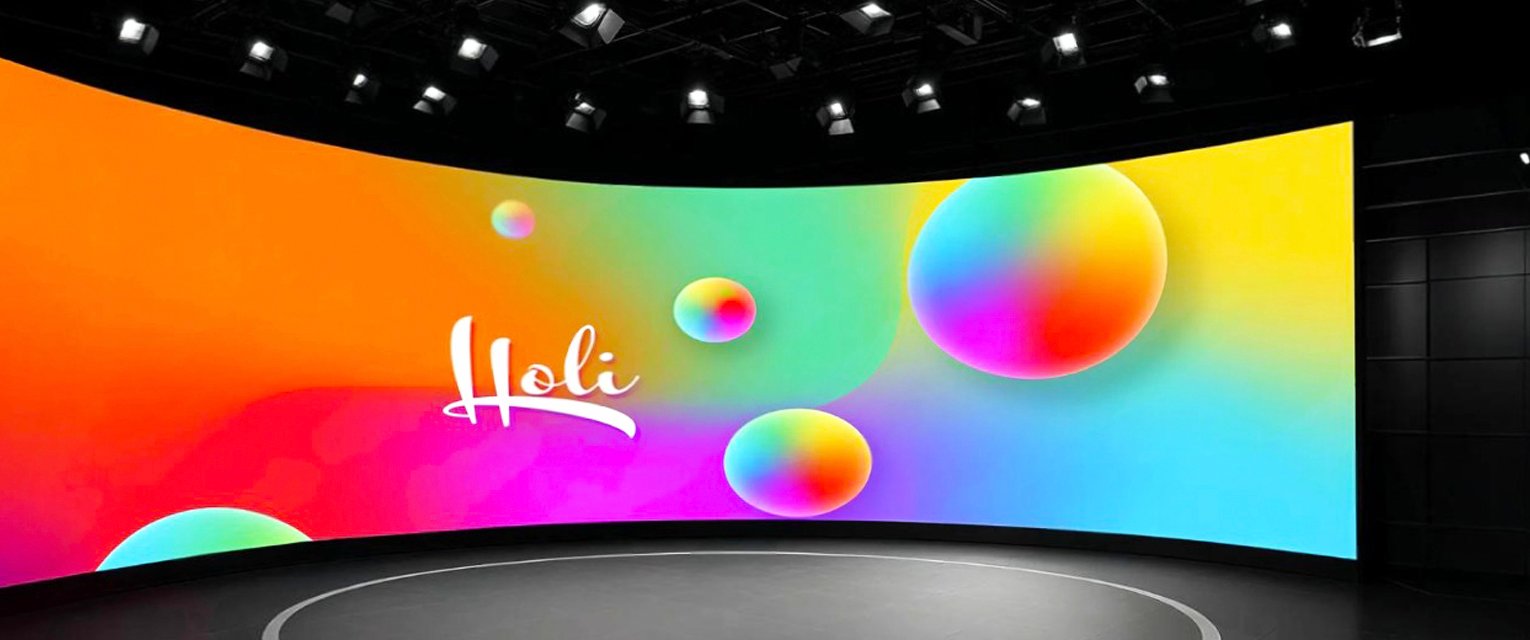

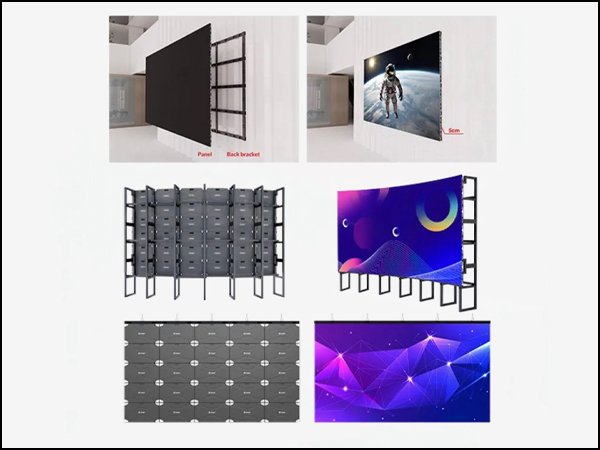

Flexible Installation Type

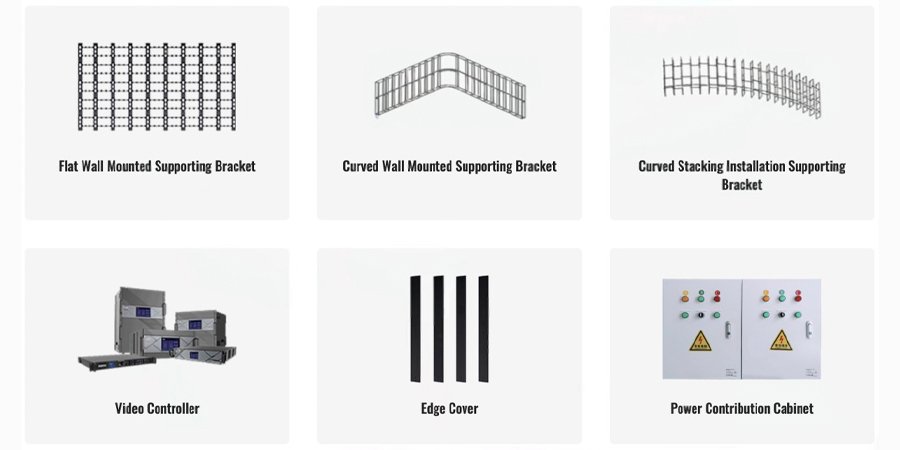

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate600NITS
Brightness281 Trillion
Color Capability170° / 170°
Viewing Angle20000:1
Contrast RatioU Slim COB SERIES 0.9MM INDOOR-USlim091 COB
▾
PIXEL PITCH::
0.9753mm
PIXEL CONFIGURATION & PACKAGING::
COB
MODULE PIXEL RESOLUTION (H x W)::
160x360dots
CABINET PIXEL RESOLUTION ( H X W)::
640x360dots
BRIGHTNESS::
400-450nits ( High Brightness optional)
REFRESH RATE::
3840Hz (7680Hz optional)
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
5.5Kgs ( 12.12lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
U Slim COB SERIES 1.25MM INDOOR-USlim121 COB
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
120x270dots
CABINET PIXEL RESOLUTION ( H X W)::
480x270dots
BRIGHTNESS::
500-600nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
5.5Kgs ( 12.12lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
8000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
U Slim COB SERIES 1.5625MM INDOOR-USlim151 COB
▾
PIXEL PITCH::
1.5625mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
96x216dots
CABINET PIXEL RESOLUTION ( H X W)::
384x216dots
BRIGHTNESS::
500-600nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
5.5Kgs ( 12.12lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
8000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
