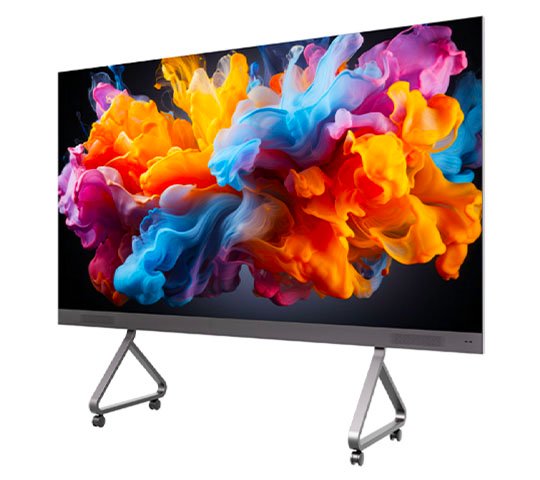

CTV Series
Discover the brilliance of All-in-One Direct View LED Displays

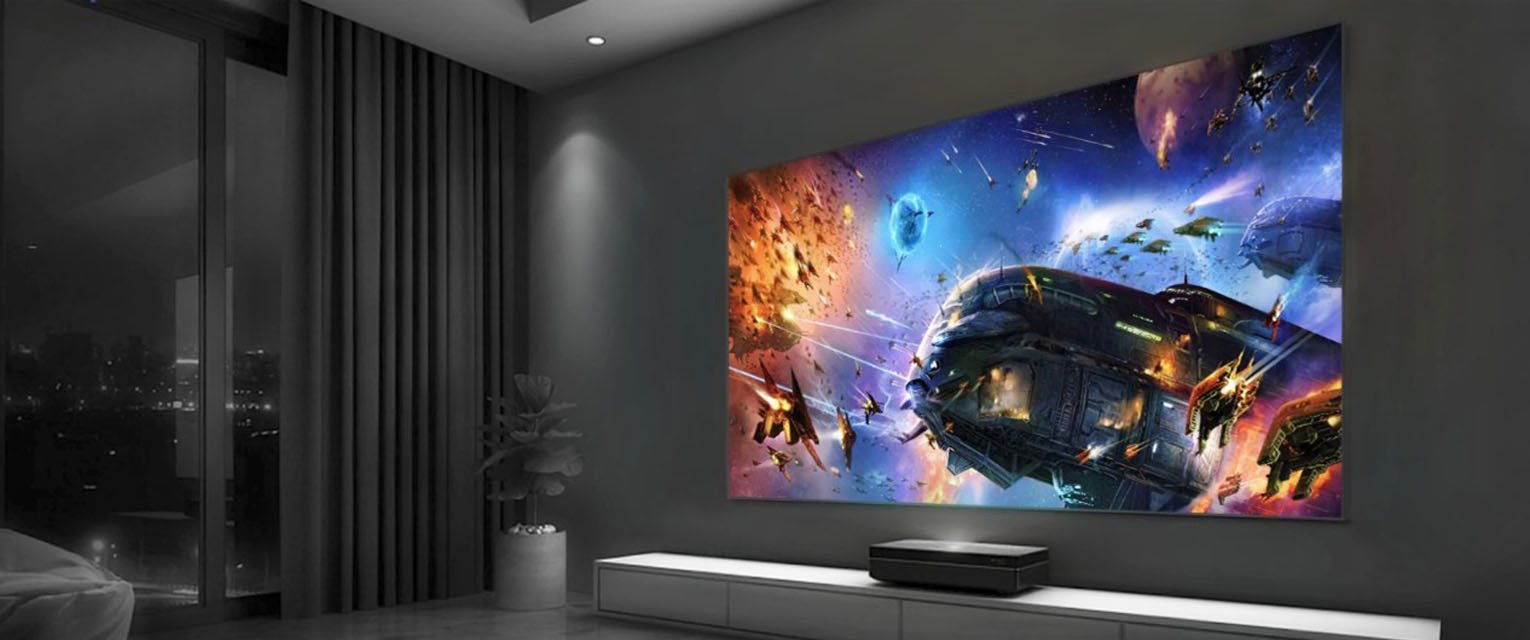

Transform your home theater, classroom, or meeting room with breathtaking visuals, all while staying within your budget.
CTV SERIES Description

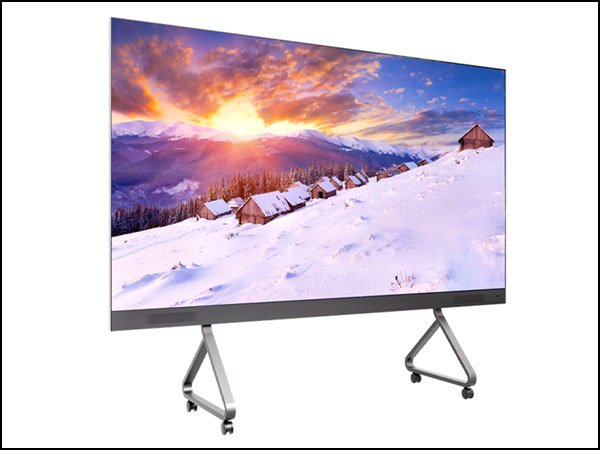

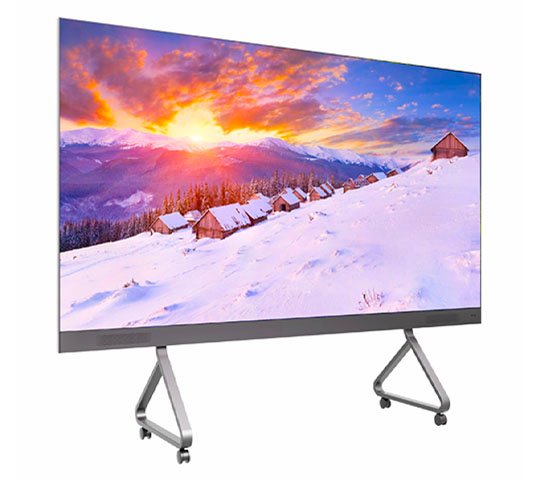

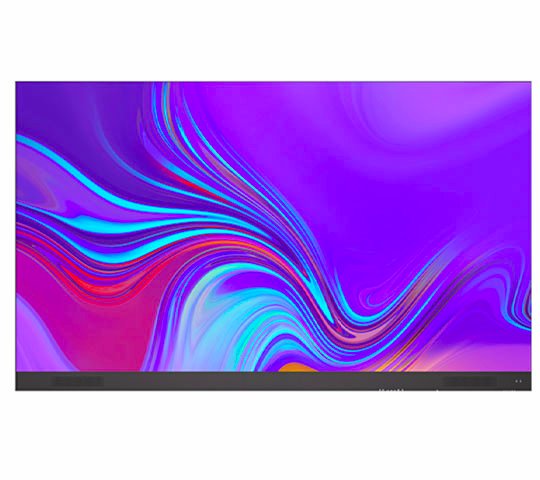

CTV Series AIO LED Display, also known as the all-in-one LED display or conference AIO LED screen, brings powerful communication and playback capabilities. Designed to overcome the common challenges of traditional conference displays, such as limited size, low brightness, and lackluster performance found in LCD TVs or projectors, this innovative screen transforms any space. It invites viewers to experience stunning brilliance, vivid colors, expansive contrast, and impressive screen sizes, whether in a home theater or a school setting.
Equipped with a reliable and highly compatible Android UI system, users can easily install a wide range of apps and APK software on the screen. The CTV Series also offers an optional Windows system for added flexibility. These displays can be installed freestanding with silent wheels or mounted on the wall, adapting to any environment. Today, they are making an impact in education, home cinemas, exhibition halls, trade shows, galleries, reception areas, boardrooms, auditoriums, corporate conference rooms, and beyond.
The available is 108″, 135″, 163″, and 216″.
Key Features
A Vivid & Broad Visual Experience
· 2K High Definition: 1920*1080 · High Contrast Ratio: 6000:1, ＞95% brightness uniformity · 0.08 chromatic uniformity, standard 110% bt 709 wide color gamut Adjustable brightness :100-500nits Size available： 108-inch,135-inch, 163-inch, and 215-inch

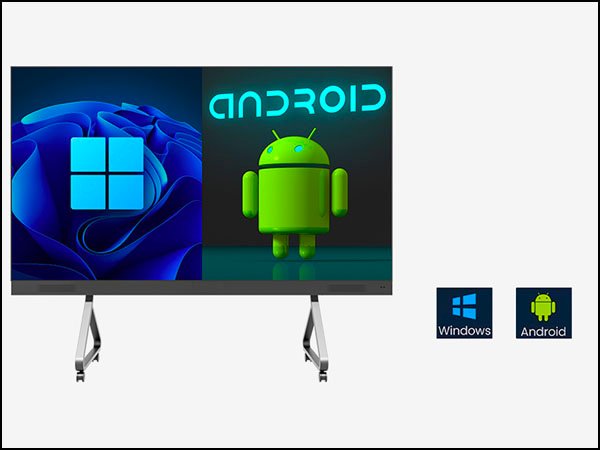

Android 11.0 & Windows 10
Experience the flexibility of a built-in Android 11.0 system, with the option to run Windows 10 at the same time. Effortlessly switch between platforms and enjoy comprehensive software support.

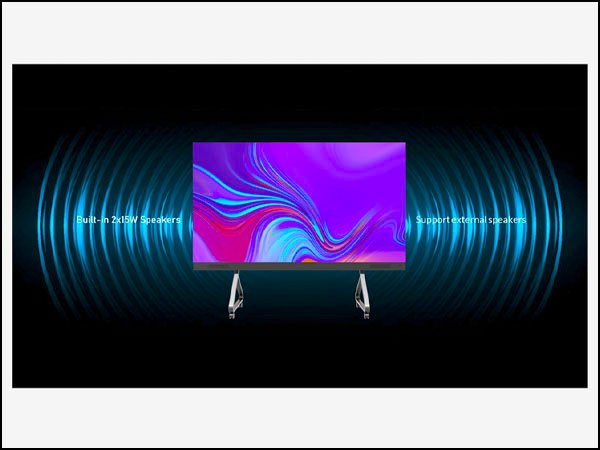

Speakers that Surround You in Rich, Immersive Sound
Experience every note with two 15W pro-grade tweeters, seamlessly integrated into an ultra-thin design, delivering audio textures that linger in your memory.

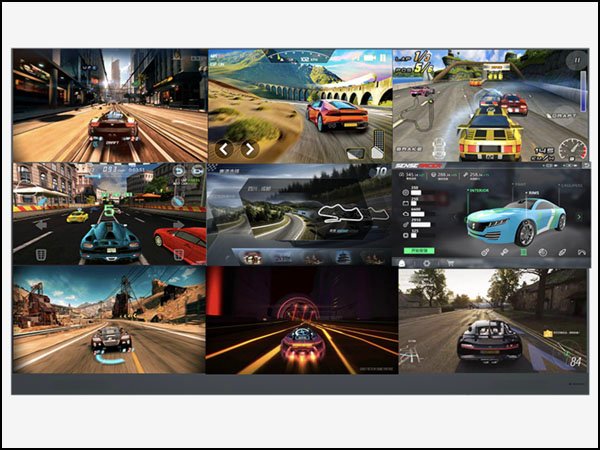

Wireless Projection vs LED Wall
9 devices are supported at the same time.
Unlock a world of visual possibilities with greater flexibility.
Unlock a world of visual possibilities with greater flexibility.

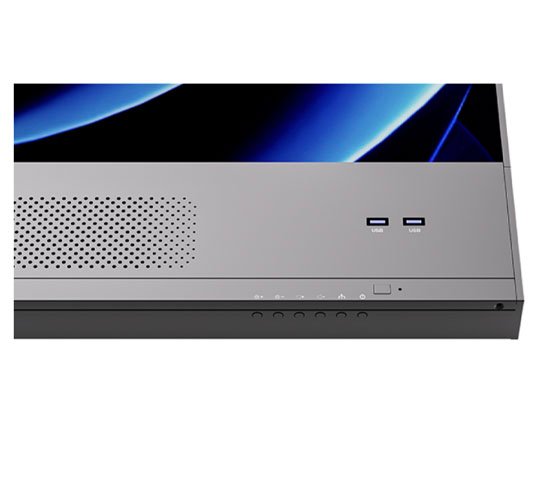

An Optional External Terminal

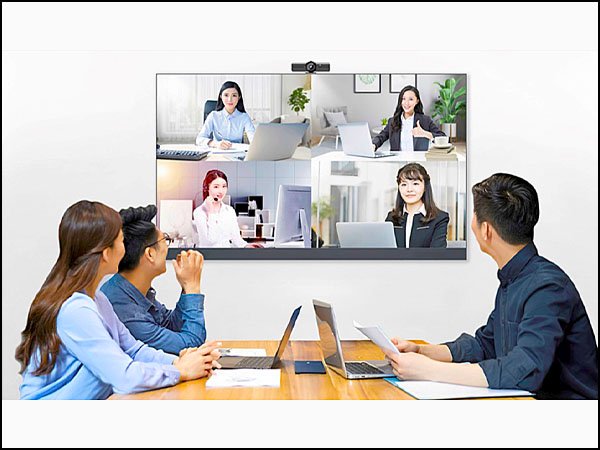

Easily connect an external HD camera, amplifier, and more to elevate your remote video conferencing experience.

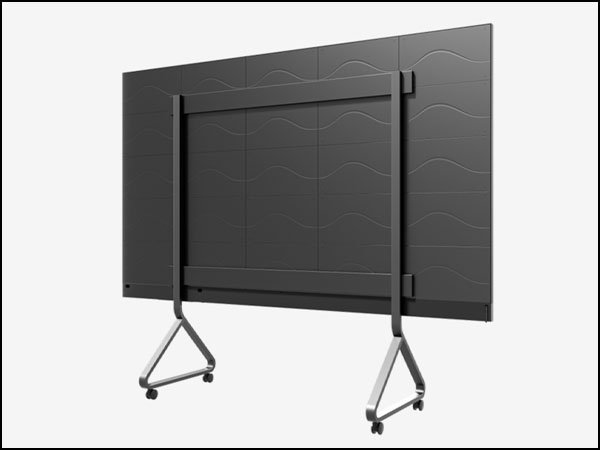

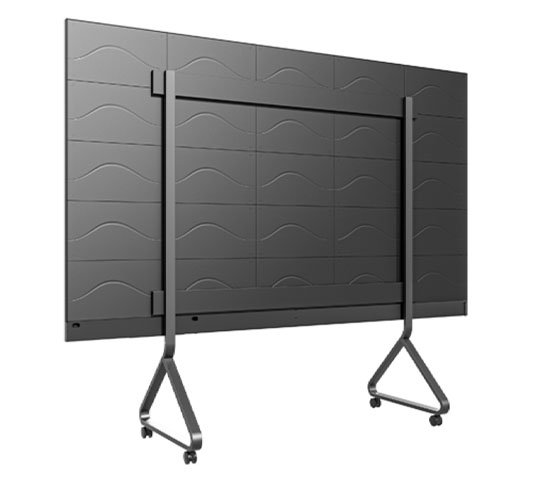

Experience Unshakable Support and Effortless Setup Thanks to Innovative Segment Design
* Sleek design meets robust engineering for a flawless foundation.
* Beautifully crafted and unwaveringly stable

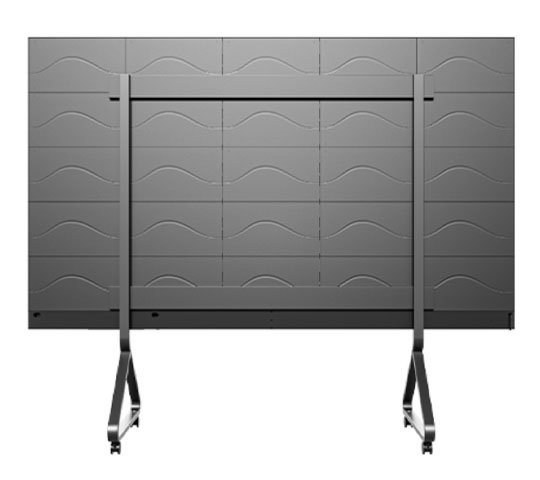

* Five modular segments designed for effortless installation
* Beautifully crafted and unwaveringly stable
* Five modular segments designed for effortless installation

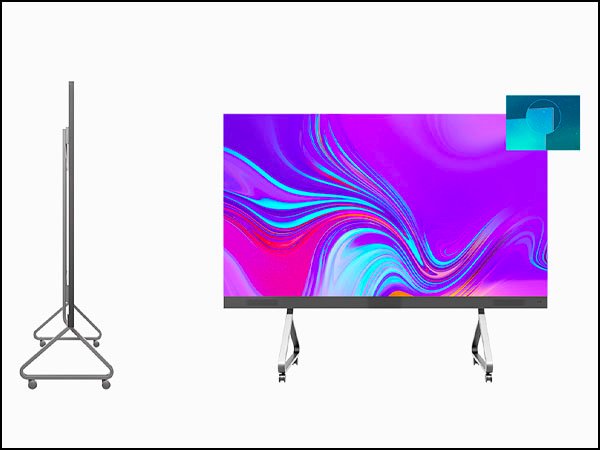

Ultra-Slim and a Bezel-Free Design
Experience a sleek 40mm screen, impressive 610mm ground clearance, wall mounting under 75mm, an ultra-slim 5mm frame, and whisper-quiet medical wheels.

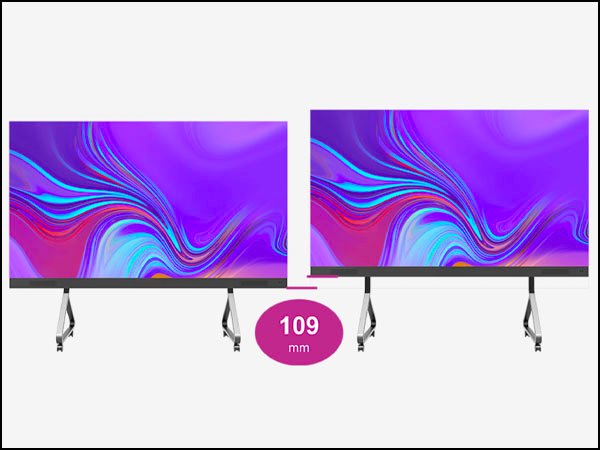

Height Adjustment
With a manual height adjustment feature that lifts the display up to 4 inches, you can easily tailor your viewing experience for any setting, from bustling conference rooms to lively stages and beyond.

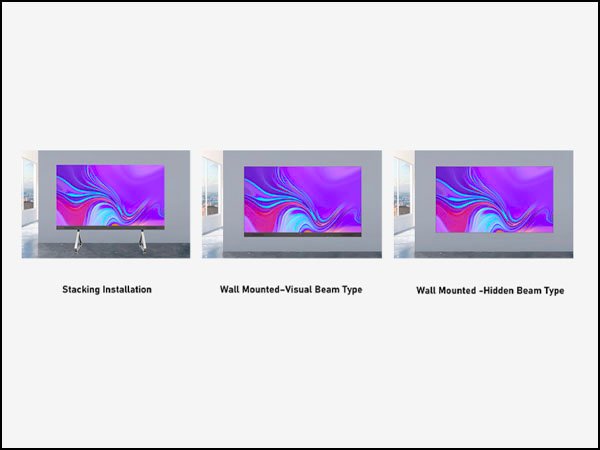

Available Installation Type
Enjoy flexible installation options: choose stacking, wall mounting with a visible beam, or wall mounting with a concealed beam.

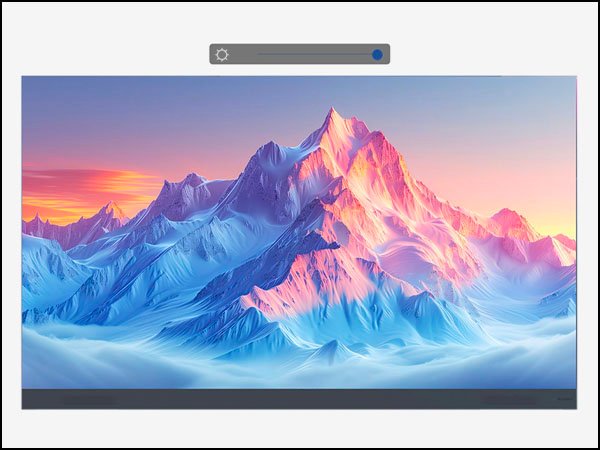

Eye Protection with Adjustable Brightness
Brightness adjustment from 100-500nits

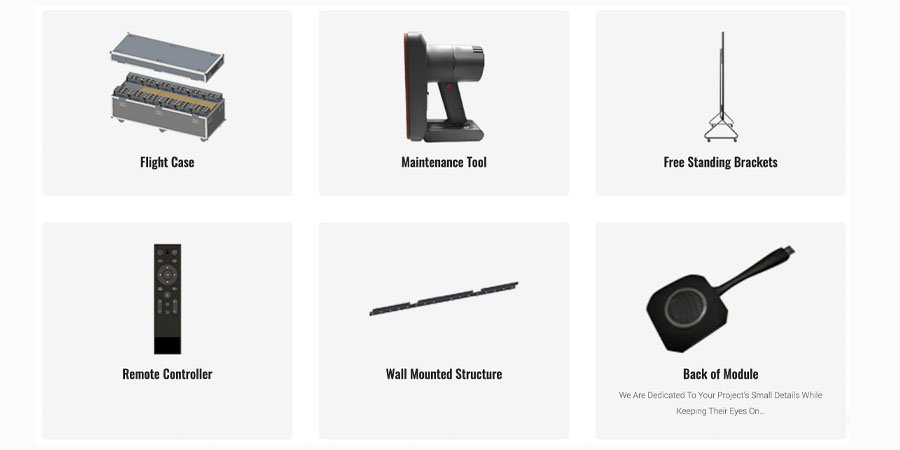

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate100-500NITS
BrightnessAndroid 11.0
Color Capability1920x1080
Viewing Angle6000:1
Contrast RatioCTV SERIES 1.25MM SMD INDOOR -CTV121-108”
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
OPERATING SYSTEM::
Android 11.0
PIXEL RESOLUTION (H X W)::
1920x1080
BRIGHTNESS::
100-500nits
REFRESH RATE::
3840Hz
DISPLAY SIZE::
108”-2400x1350mm (94.48x53.14 inch)
CABINET WEIGHT::
110Kgs (242.50 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30

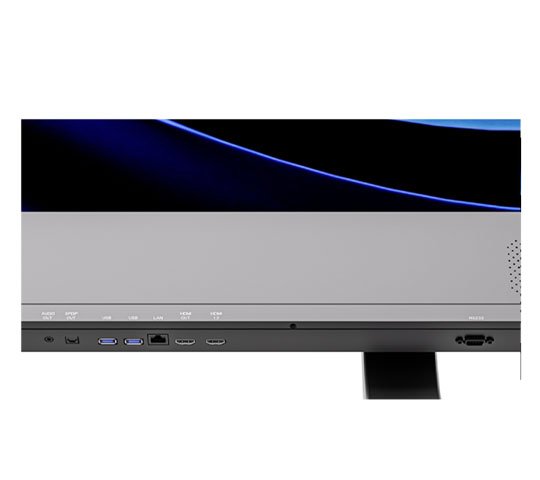

VIDEO INTERFACE::
HDMI IN*2， HDMI OUT*1， USB *3
WORKING TEMPERATURE::
-20℃~+40℃
1) BRIGHTNESS (NITS) IS AN ADJUSTABLE SPECIFICATION DEPENDING ON THE APPLICATION AND HOW USERS OPT TO DRIVE DIODES. BRIGHTNESS LEVELS SHOULD BE PROPERLY
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
CTV SERIES 1.56MM SMD INDOOR -CTV151-135”
▾
PIXEL PITCH::
1.5625mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
OPERATING SYSTEM::
Android 11.0
PIXEL RESOLUTION (H X W)::
1920x1080
BRIGHTNESS::
10-500nits
REFRESH RATE::
3840Hz
DISPLAY SIZE::
135”-3000x1687.5mm (118.11x66.43 inch)
CABINET WEIGHT::
130Kgs (286.60 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
VIDEO INTERFACE::
HDMI IN*2， HDMI OUT*1， USB *3
WORKING TEMPERATURE::
-20°C~+40°C
1) BRIGHTNESS (NITS) IS AN ADJUSTABLE SPECIFICATION DEPENDING ON THE APPLICATION AND HOW USERS OPT TO DRIVE DIODES. BRIGHTNESS LEVELS SHOULD BE PROPERLY
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
CTV SERIES 1.8MM SMD INDOOR -CTV181-163”
▾
PIXEL PITCH::
1.875mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
OPERATING SYSTEM::
Android 11.0
PIXEL RESOLUTION (H X W)::
1920x1080
BRIGHTNESS::
100-500nits
REFRESH RATE::
3840Hz
DISPLAY SIZE::
163”-3600x2025mm (141.73x79.72inch)
CABINET WEIGHT::
170Kgs (374.78 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
VIDEO INTERFACE::
HDMI IN*2， HDMI OUT*1， USB *3
WORKING TEMPERATURE::
-20°C~+40°C
1) BRIGHTNESS (NITS) IS AN ADJUSTABLE SPECIFICATION DEPENDING ON THE APPLICATION AND HOW USERS OPT TO DRIVE DIODES. BRIGHTNESS LEVELS SHOULD BE PROPERLY
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
CTV SERIES 2.5MM SMD INDOOR -CTV251-216”
▾
PIXEL PITCH::
2.5mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
OPERATING SYSTEM::
Android 11.0
PIXEL RESOLUTION (H X W)::
1920x1080
BRIGHTNESS::
100-500nits
REFRESH RATE::
3840Hz
DISPLAY SIZE::
216”-4800x2700mm (188.97x106.29 inch)
CABINET WEIGHT::
290Kgs (639.34 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
VIDEO INTERFACE::
HDMI IN*2， HDMI OUT*1， USB *3
WORKING TEMPERATURE::
-20°C~+40°C
1) BRIGHTNESS (NITS) IS AN ADJUSTABLE SPECIFICATION DEPENDING ON THE APPLICATION AND HOW USERS OPT TO DRIVE DIODES. BRIGHTNESS LEVELS SHOULD BE PROPERLY
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
MANAGED AS POWER CONSUMPTION AND LED LIFETIME CAN ALSO BE AFFECTED.
