Bozz Defense Led

CJ FOLD Series

Wireless Cascade Tri-fold GOB LED Poster Display

Experience the innovation of a fully tri-fold design, seamless wireless smart cascade, and breathtaking 2K or 2K+ clarity.

CJ FOLD SERIES Description

The CJ-FOLD SERIES LED Poster by Bozz Defense LED redefines visual storytelling for retail, exhibitions, and events where making an impression is everything. Its groundbreaking tri-fold design and smart wireless cascading deliver larger-than-life visuals, lightning-fast setup, and dramatically lower logistics costs than ordinary LED posters.

Thanks to its LED-to-LED inward-folding structure, packaging volume shrinks to just 25%, while keeping the screen fully protected in transit. This makes it a dream for rentals and frequent moves. The ultra-slim die-cast magnesium alloy cabinet blends featherlight strength with a sophisticated look, while hidden cables ensure a flawless, polished presentation.

CJ-FOLD shines as a dynamic standalone poster or effortlessly links into imaginative multi-screen arrangements, from side-by-side and vertical to striking 90° corner displays. Connect up to three units for a flawless 2K (16:9) screen with no external processor needed, while larger setups use fewer ports, slashing both system costs and complexity.

With HDMI, USB plug-and-play, wireless, LAN, and cloud control, CJ-FOLD puts flexible content management at your fingertips, wherever you are. Its seamless dual-sided display commands attention in busy spaces, packing more visual punch into every square inch of transport volume.

With a 5-year warranty, the CJ-FOLD SERIES stands as a forward-thinking LED poster solution, crafted for brands that expect nothing less than top-tier performance, adaptability, and unwavering reliability.
Get a quote

Key Features

Smart Wireless Cascade

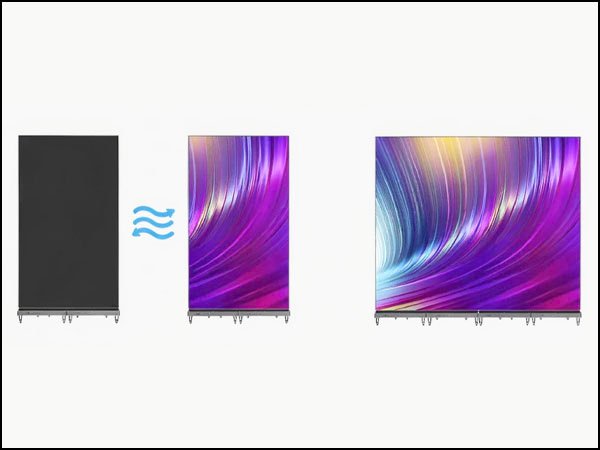

With the built-in wireless auto-cascading module, screens snap together in an instant, no data cables required. Experience effortless setup, a tidy space, and flawless performance.

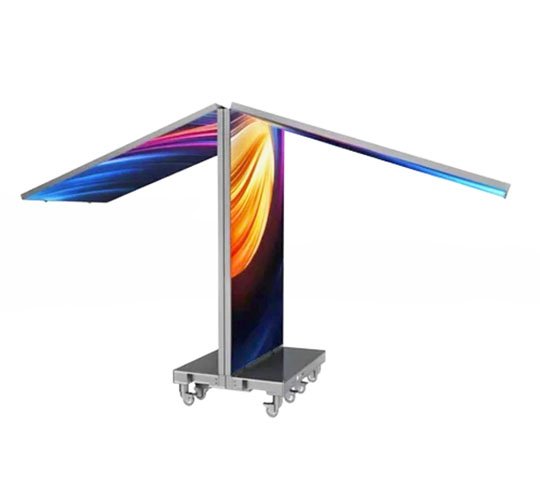

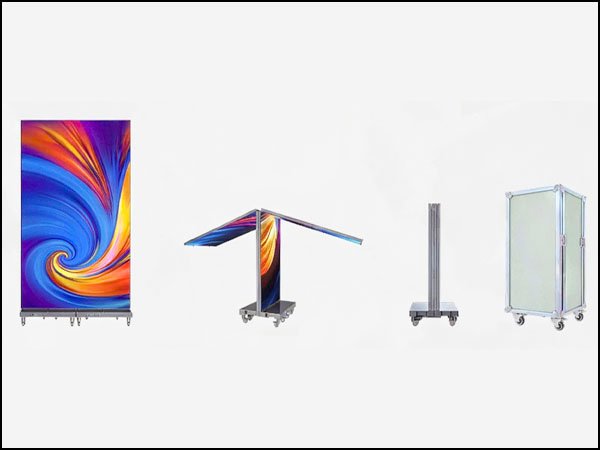

Revolutionary Tri-Fold Design

Experience the power of the Revolutionary Tri-Fold Structure, designed for seamless horizontal and vertical folding that shrinks packaging to a quarter of its original size and unlocks peak transport efficiency.

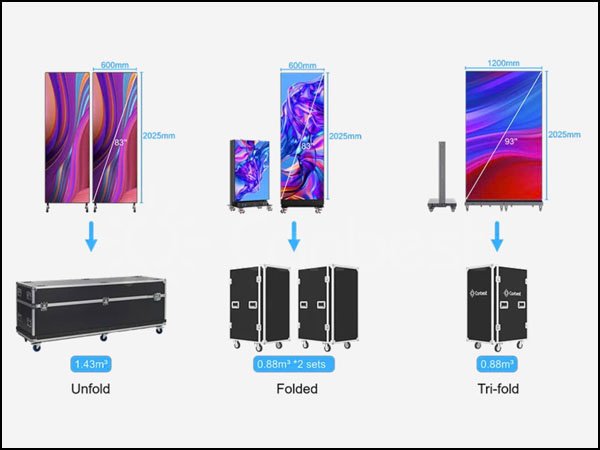

Super Package Saver

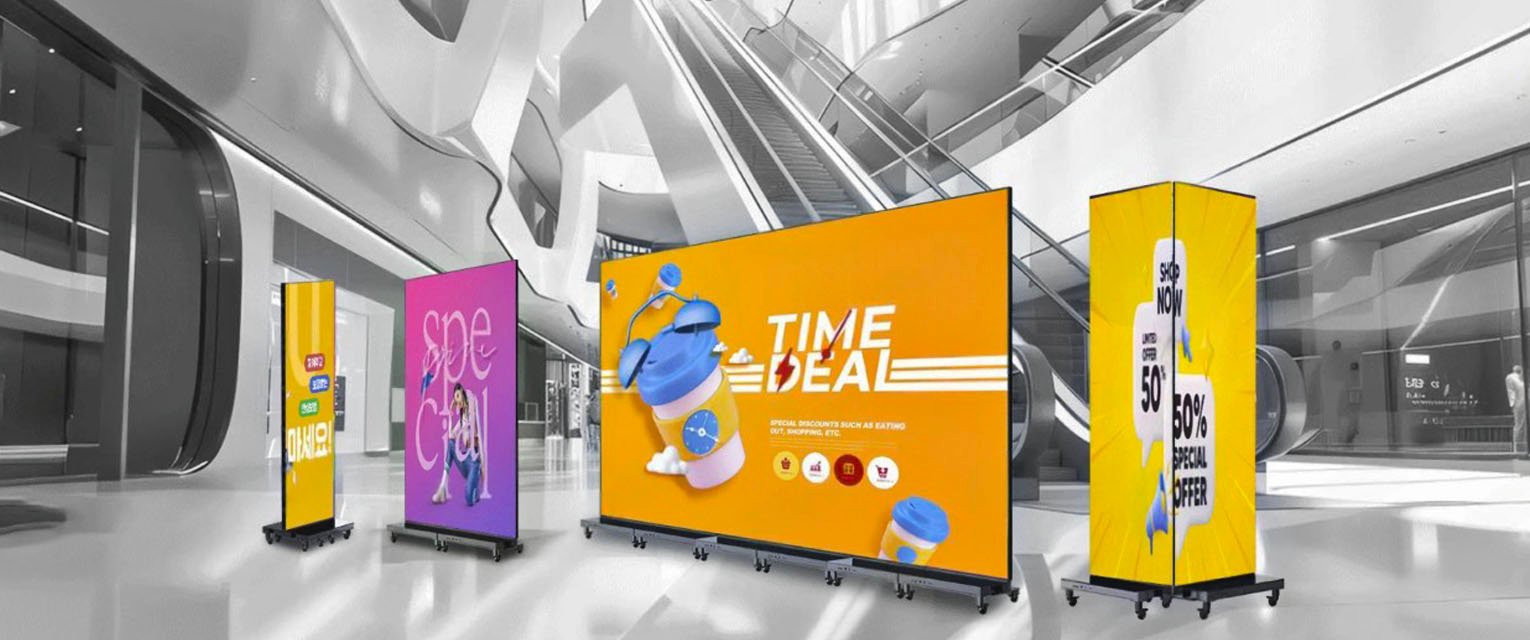

One Display and Various Layouts

+

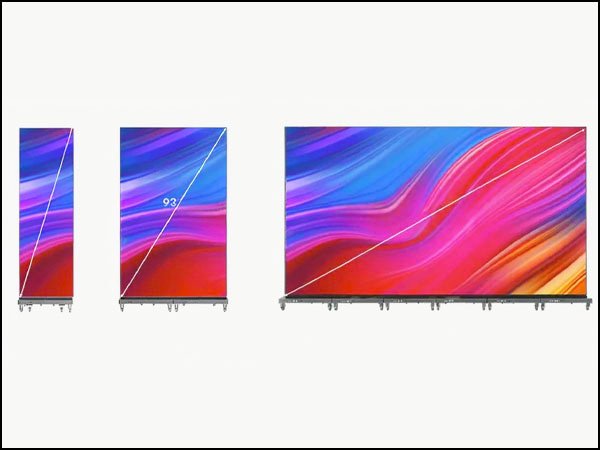

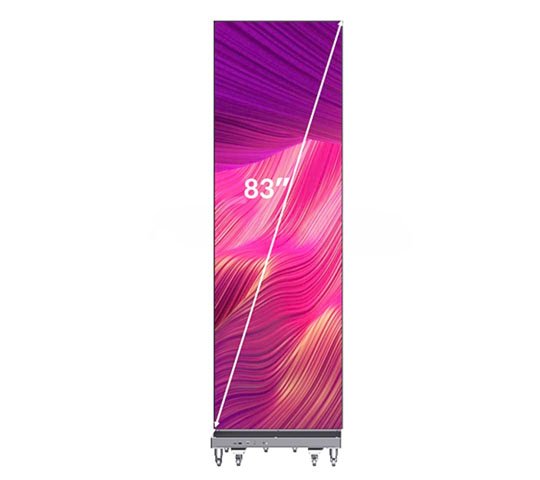

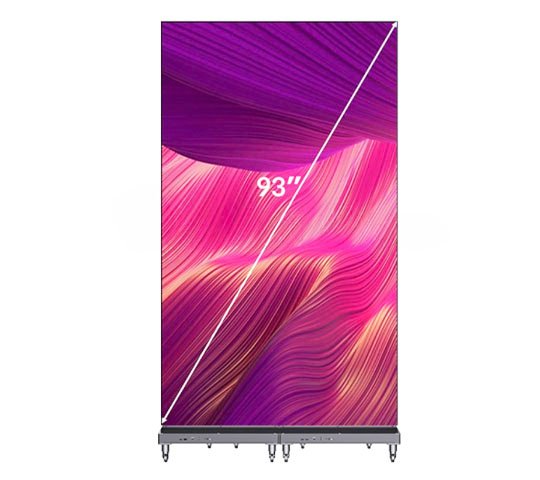

Watch a 93″ single-sided display transform into an 83″ double-sided screen in moments. Combine three units for a stunning 163″ display, ready to fit aisles, entrances, or island booths with unmatched versatility.

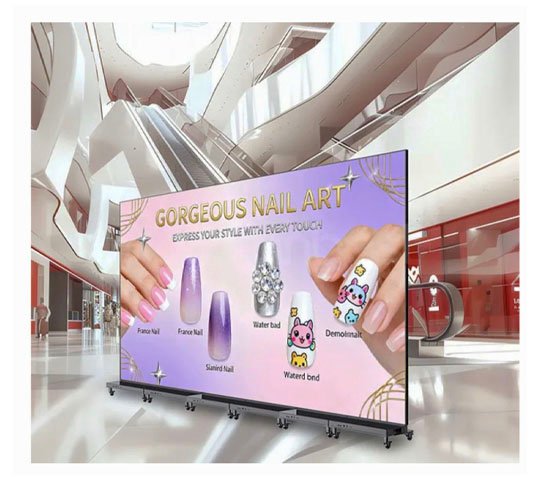

Seamless 2K Display / No External Video Processor

+

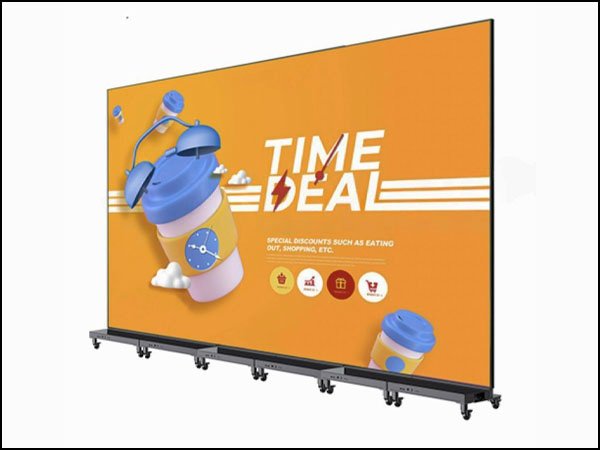

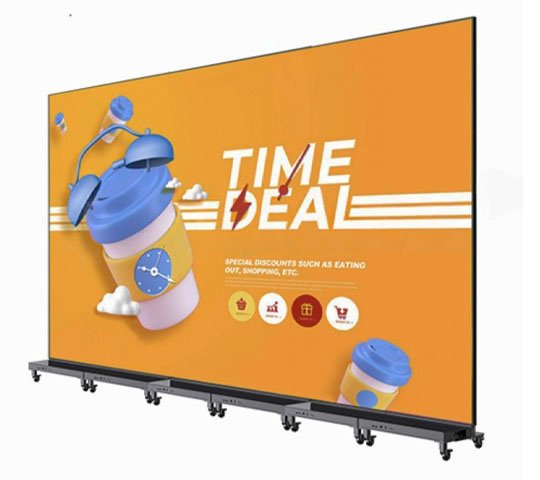

Connect up to three sets effortlessly- no external video processor needed- to build a stunning 2K (16:9) display. Instantly transform your space with a big-screen experience for videos, presentations, and beyond.

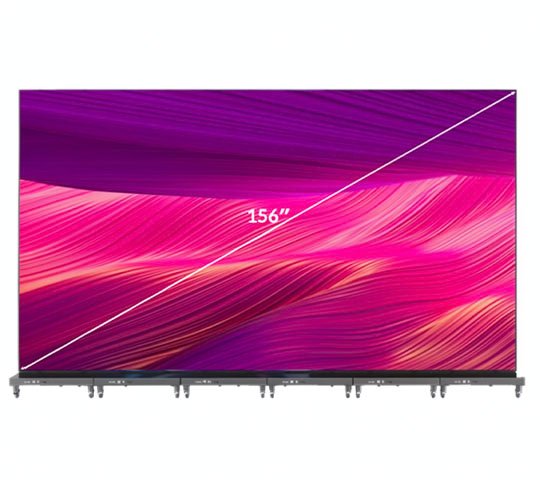

Beyond 2K / Simpler System / Lower Cost

+

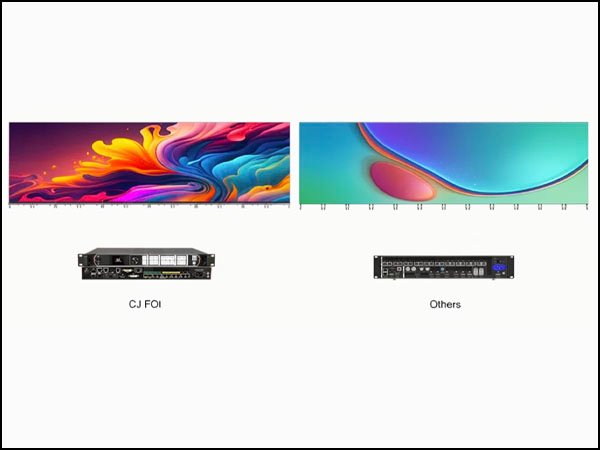

With the same expansive beyond-2K display, a 6-set CJ FOLD setup needs just a 2-port video processor. In contrast, other systems demand 12 ports, driving up both costs and cabling headaches.

Ultra-slim Design

+

-Unfold Thickness: 25mm
-Fold Thickness: 50mm

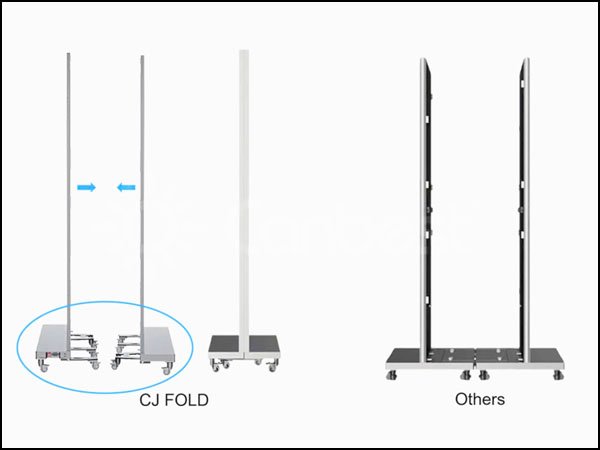

Total Gap- Free Dual Sided Display

+
CJ FOLD’s dual-sided design clicks into place with no gaps, turning any space into a sleek, compact showcase that radiates professionalism.

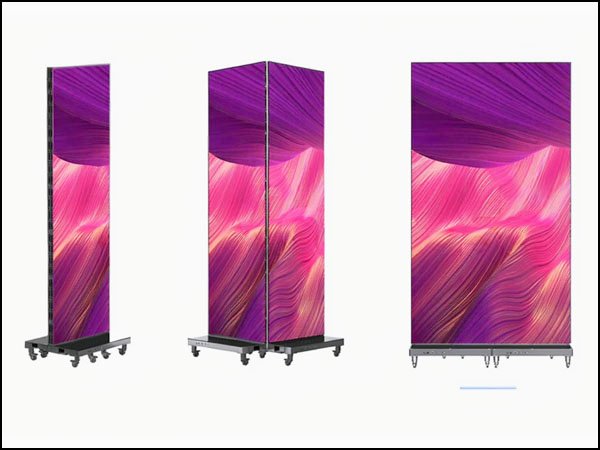

Creative Designs for Single Units

+

Unique Designs by Multiple Sets

+

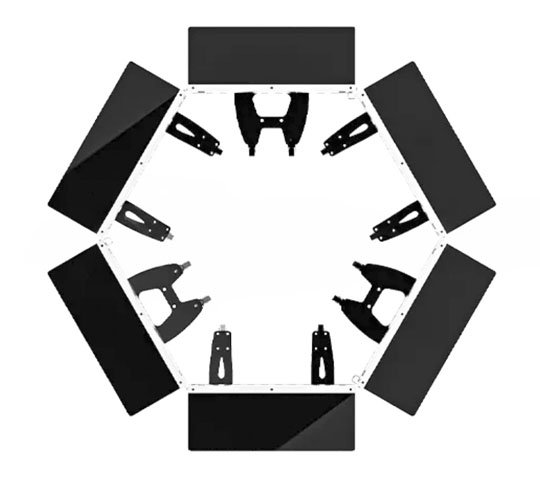

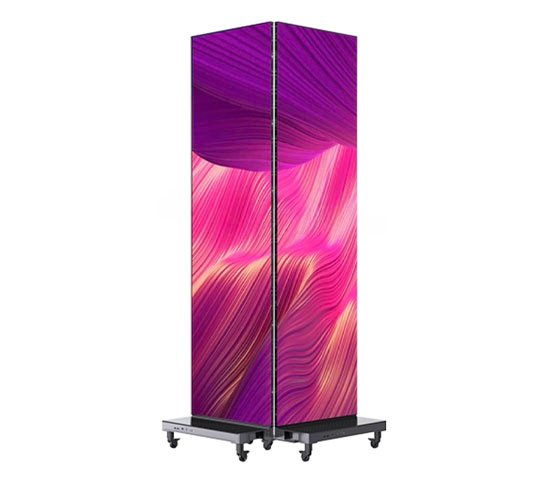

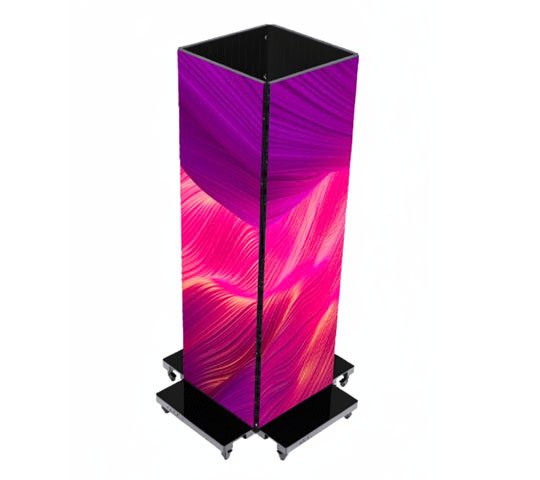

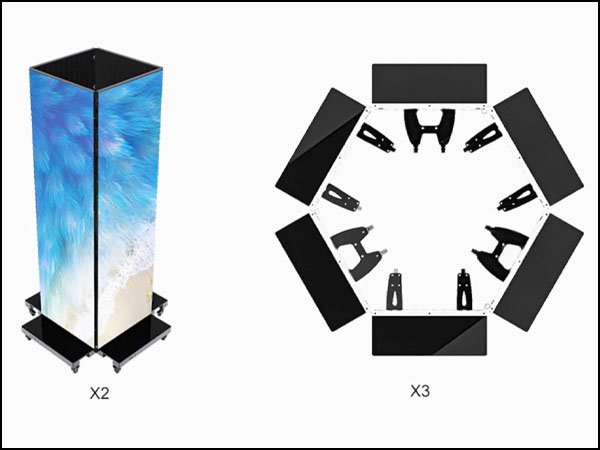

Easily create striking 90° splicing displays, arranging multiple panels into eye-catching columns, regular hexagons, and more unique shapes.

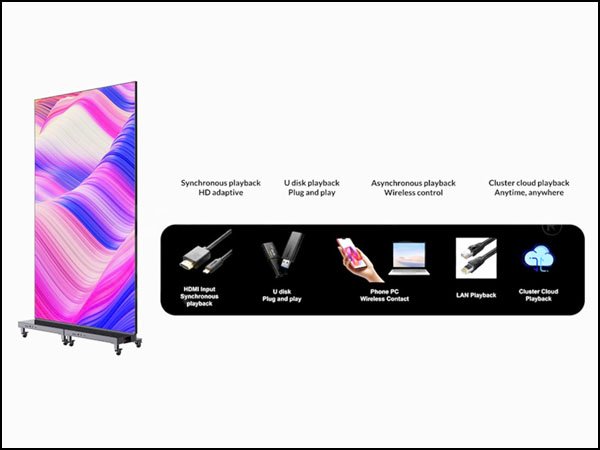

Multiple Playback Types / Convenient Operation

+

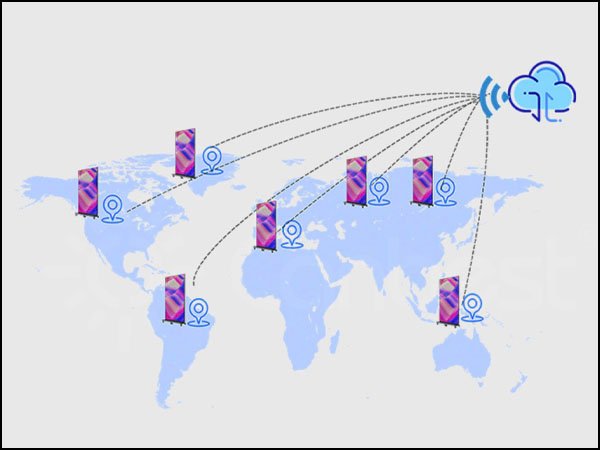

Smart Cloud Cluster Management

+
Take command in real time and unlock insights wherever you are, keeping operations running smoothly and monitoring effortlessly.

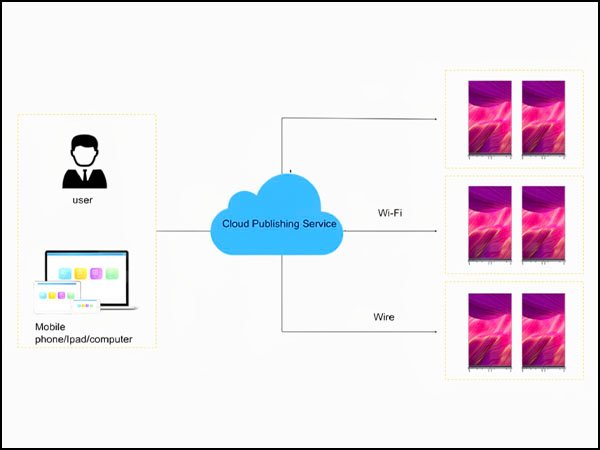

Intelligent Cloud Playback Architecture

+

Texture LED Series Specifications

3840Hz

Refresh Rate

600 / 1000NITS

Brightness

281 Trillion

Color Capability

140° / 140°

Viewing Angle

5000:1

Contrast Ratio

CJ FOLD SERIES 1.5MM SMD INDOOR -CJ151 FOLD 93”

PIXEL PITCH:: 1.5625mm
PIXEL CONFIGURATION & PACKAGE:: GOB
OPERATING SYSTEM:: Android 11
PIXEL RESOLUTION ( H X W):: 384*1080/384*1296dots
BRIGHTNESS:: 600/1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: 600mm×2025mm(83inch)fold | 1200mm×2025mm(93inch)unfold
CABINET WEIGHT:: 93Kg (205lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
VIDEO INTERFACE:: HDMIx2(1in1out),USB 3.0x1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.

CJ FOLD SERIES 1.8MM SMD INDOOR -CJ181 FOLD-93”

PIXEL PITCH:: 1.875mm
PIXEL CONFIGURATION & PACKAGE:: GOB
OPERATING SYSTEM:: 208x104dots
PIXEL RESOLUTION ( H X W):: 320*1080dots( fold) | 640x1080dots (unfold)
BRIGHTNESS:: 600/1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: 600mm×2025mm(83inch)fold | 1200mm×2025mm(93inch)unfold
CABINET WEIGHT:: 93Kg (205lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
VIDEO INTERFACE:: HDMIx2(1in1out),USB 3.0x1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.

CJ FOLD SERIES 2.5MM SMD INDOOR -CJ251 FOLD 93”

PIXEL PITCH:: 2.5mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
OPERATING SYSTEM:: Android 11
PIXEL RESOLUTION ( H X W):: 240*810dots ( fold) | 480x810dots (unfold)
BRIGHTNESS:: 600/1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: 600mm×2025mm(83inch)fold | 1200mm×2025mm(93inch)unfold
CABINET WEIGHT:: 93Kg (205lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
VIDEO INTERFACE:: HDMIx2(1in1out),USB 3.0x1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.

    READY TO GET STARTED?


    Fill out the form and we'll start designing a custom solution together.

    CONTACT US

    ALL OUR LED DISPLAYS COME WITH 5-YEAR WARRANTY AND WE OFFER ONE-STOP PURCHASE FROM DESIGN TO INSTALLATION. GET STARTED WITH US NOW!
