SPRO Series
3-in-1 Hub 16:9 Indoor LED Video Wall
Blends cutting-edge precision and remarkable energy efficiency to deliver visuals that captivate with breathtaking clarity
SPRO SERIES Description
The SPRO Series redefines indoor LED displays with its advanced small-pixel pitch technology, delivering unmatched precision and clarity for demanding environments. -Its ultra-thin, stylish profile and 16:9 aspect ratio blend seamlessly into any space, creating a sophisticated, contemporary atmosphere. With a modular, cable-free connection and an innovative 3-in-1 hub board, the SPRO Series delivers reliable performance and hassle-free maintenance, with convenient front access that minimizes interruptions.

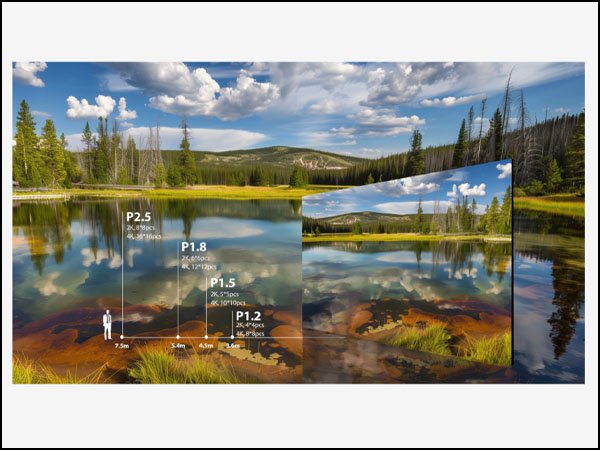

With pixel pitches of P1.25, P1.5, and P1.8, the SPRO Series brings vibrant visuals and true-to-life color to spaces like corporate offices, control rooms, and broadcast studios. Its energy-saving design helps lower operating costs, while the sturdy build delivers long-lasting performance. The SPRO Series also features integrated installation solutions, ensuring a perfectly flat display and easy scalability for any professional setting.
By uniting energy efficiency, stunning visual clarity, and effortless maintenance, the Smakess stands out as the ideal solution for professional indoor LED display requirements.
Key Features

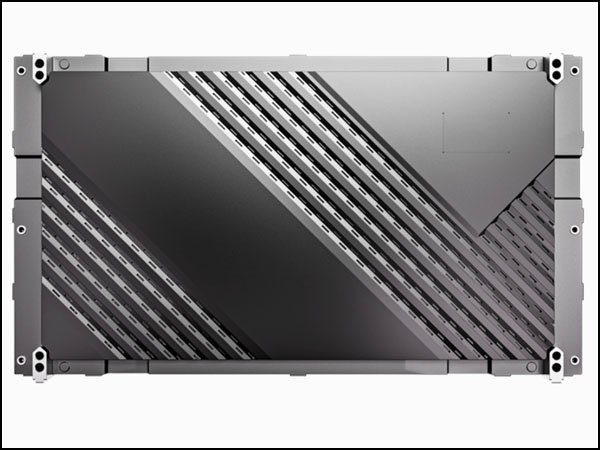

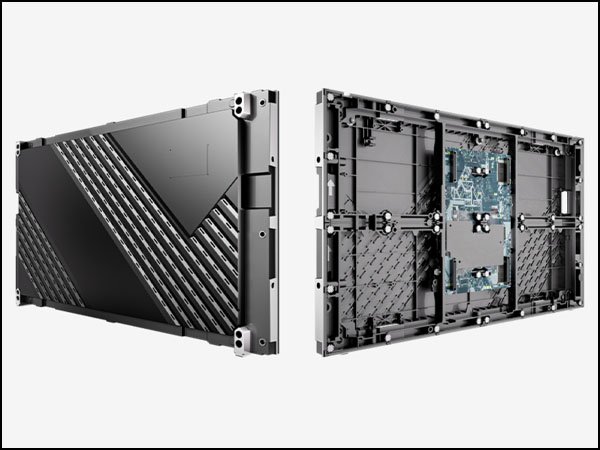

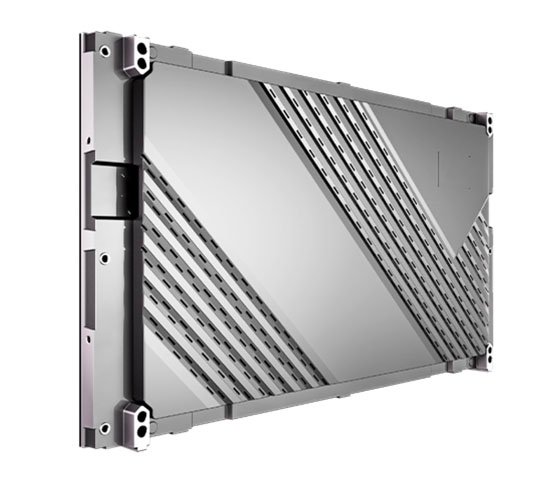

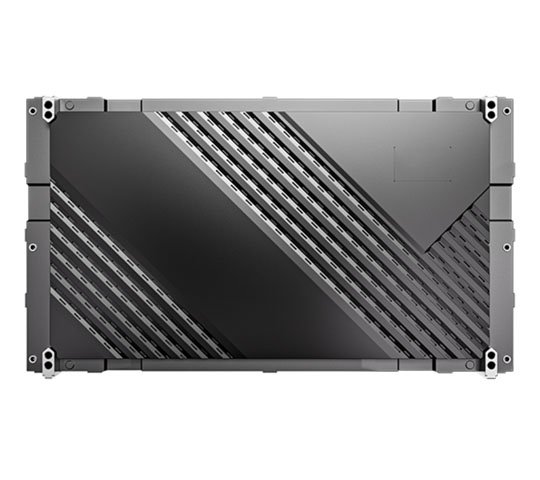

Die-cast Aluminum Design
-Exceptional flatness with a margin of error no greater than 0.1mm
-Amazingly lightweight at just 3.5kg per panel
-Amazingly lightweight at just 3.5kg per panel
16:9 Aspect Ratio
-Generous 27.5″ Standard Size
-Crystal-clear FHD or 4K Pixel-to-Pixel Resolution
-Crystal-clear FHD or 4K Pixel-to-Pixel Resolution

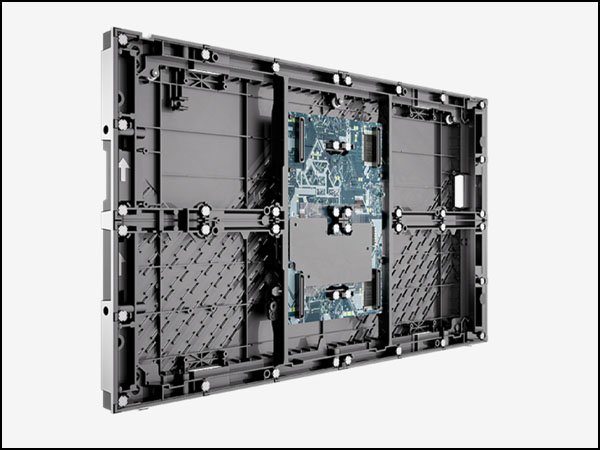

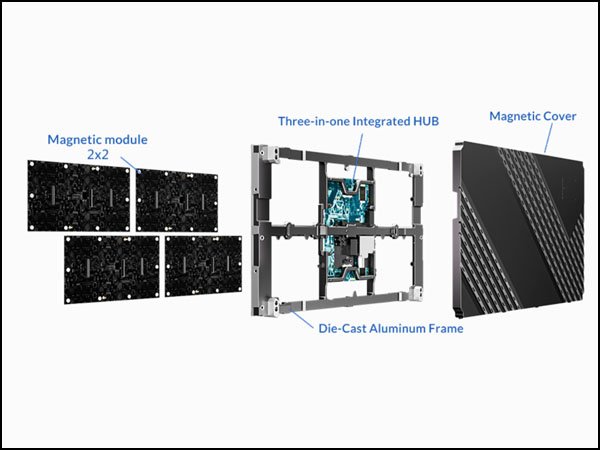

Three-in-one Integrated HUB with High Efficient Operation
Hidden Wire Design
All wires are cleverly hidden, creating a sleek and uncluttered look.
Modular Design
Experience front-line service powered by cutting-edge technology and seamless maintenance access.

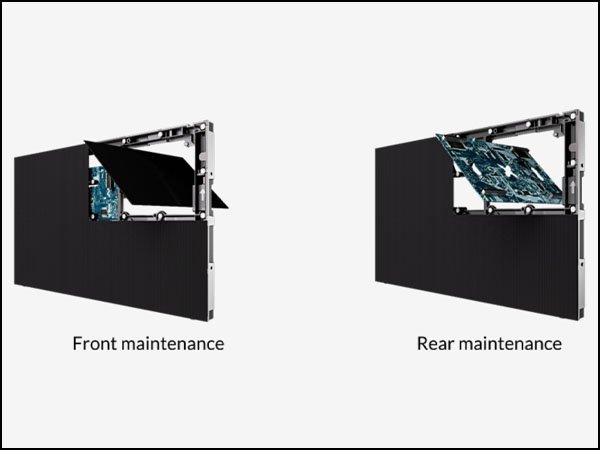

LED Module Front & Rear Access
GOB technology transforms LED screens, making them waterproof, moisture-resistant, and impact-resistant. Maintenance and cleaning become effortless, while stability and lifespan reach new heights.
Hard-pin Connected Modules Interchangeable Left and Right
Discover seamless technology that lets you install and replace modules in no time.
Energy Saving
Experience over 50% power savings with our innovative Integrated 3-in-1 Hub design, which combines the power supply, receiving card, and hub board into one. Enjoy efficient performance with just 21w per panel on average and a maximum of 75w per panel, translating to only 100w/m² on average and up to 300w/m² at peak.

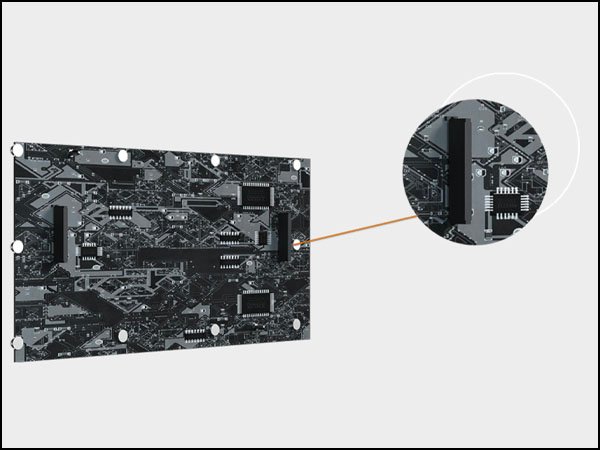

Memory on Module Management

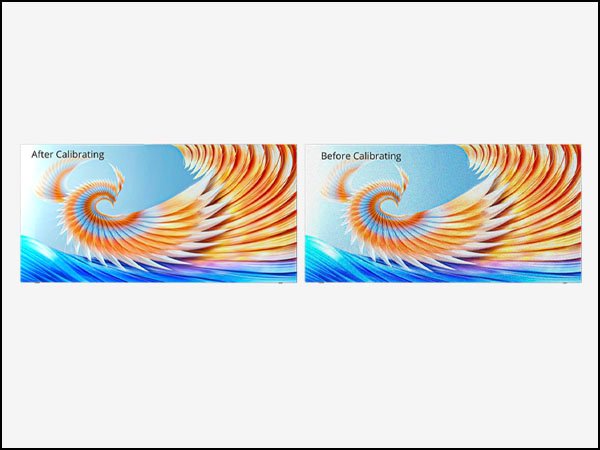

-Automatic color calibration transforms your visuals, delivering richer, more vibrant images every time.
-The intelligent module design seamlessly detects and applies your uploaded screen calibration data for effortless setup.
-The intelligent module design seamlessly detects and applies your uploaded screen calibration data for effortless setup.

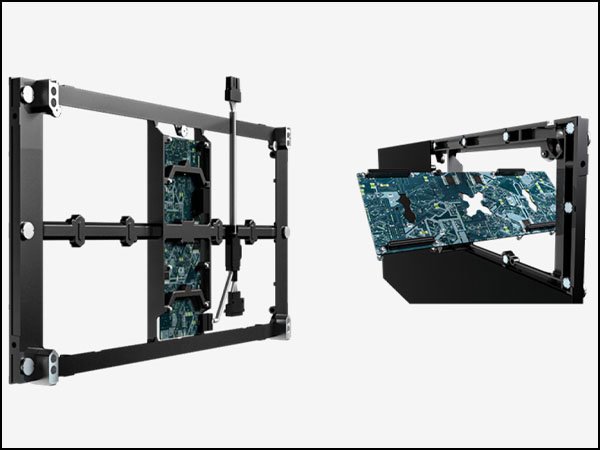

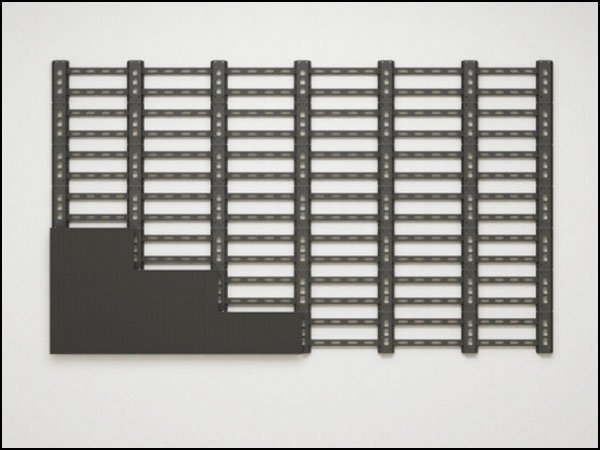

Unique Aluminum Back Brackets
With a self-positioning design and seamless automatic leveling between structures, you can ensure flawless alignment every time.

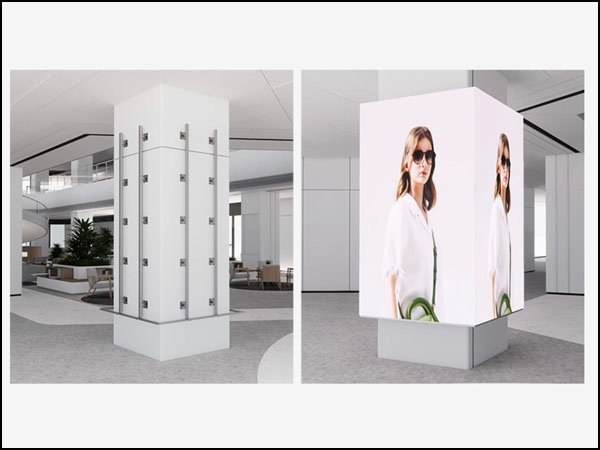

Right-angle Installation
Perfectly suited for indoor spaces, especially where right angles or corners call for a tailored installation

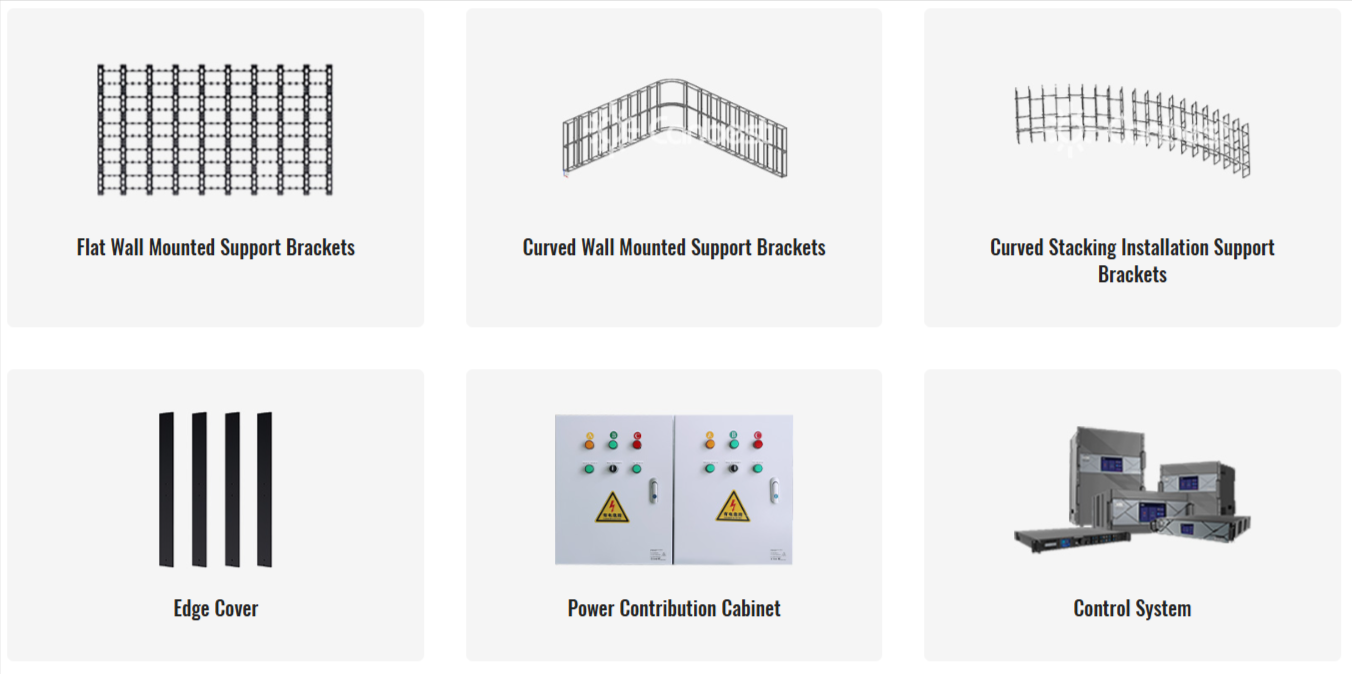

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate450-1000NITS
Brightness281 Trillion
Color Capability140° / 140°
Viewing Angle5000:1
Contrast RatioSPRO SERIES 1.25MM SMD INDOOR-S121PRO
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
240x135dots
CABINET PIXEL RESOLUTION ( H X W)::
480x270dots
BRIGHTNESS::
400nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
3.4Kgs ( 7.71 lbs)
ACCESSIBILITY::
Front Acess
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
SPRO SERIES 1.56MM SMD INDOOR-S151PRO
▾
PIXEL PITCH::
1.5625mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
192x108dots
CABINET PIXEL RESOLUTION ( H X W)::
384x216dots
BRIGHTNESS::
400-450nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
3.4Kgs ( 7.71 lbs)
ACCESSIBILITY::
Front Acess
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
SPRO SERIES 1.87MM SMD INDOOR-S181PRO
▾
PIXEL PITCH::
1.875mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
160x90dots
CABINET PIXEL RESOLUTION ( H X W)::
320x180dots
BRIGHTNESS::
450-450nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
3.4Kgs ( 7.71 lbs)
ACCESSIBILITY::
Front Acess
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
