V COB Series
COB Fine Pitch Indoor LED Video Wall
Available in a range of sizes, each piece is crafted with exceptional precision and built to last, setting a new standard for visual brilliance.
VCOB SERIES Description
V COB Series harnesses the power of advanced COB (Chip-on-Board) technology to deliver a versatile selection of panel sizes, from 250*500mm to 500*1000mm. This flexibility empowers you to tailor your display to any installation, ensuring a perfect fit every time. Engineered for small-pitch LED applications, these panels achieve breathtaking clarity and vibrant detail, transforming any space with their remarkable visual impact.
With flawless light consistency, robust durability, and striking contrast, the V COB Series delivers image quality that stands out in any professional environment. Its ultra-slim, modular panels make installation effortless and integration seamless, creating a captivating, uninterrupted viewing experience even across expansive video walls.

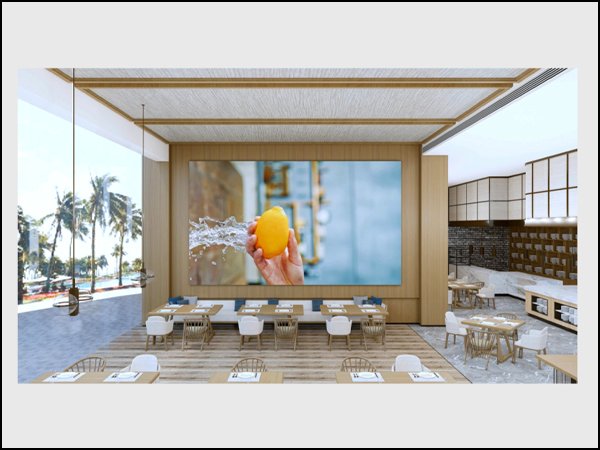

The V COB Series shines in settings where every detail matters, from control rooms and broadcast studios to conference centers and corporate offices. It elevates museums, galleries, and retail spaces with its premium display capabilities. Built for reliability and efficiency, its advanced COB technology ensures lasting performance, vivid colors, and exquisite detail that captivate every audience.
This series is ideal for venues seeking a cutting-edge LED display system that blends the precision of small-pitch technology with the trusted reliability and efficiency of COB innovation.
The available pixel pitch is P1.2, P1.5, and P1.9.
Key Features

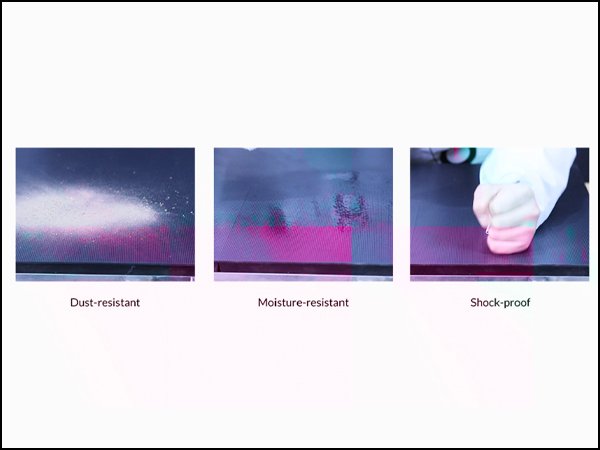

Strong Against External Impact
Our COB technology stands ready to shield against every external impact, offering powerful, all-encompassing protection with impressive efficiency.
Ultra-high Contrast and Consistency
Brings colors to life with vivid accuracy, preserves every detail in flawless quality, and achieves striking contrast while ensuring deep, consistent blacks throughout.
Peerless Picture Effect

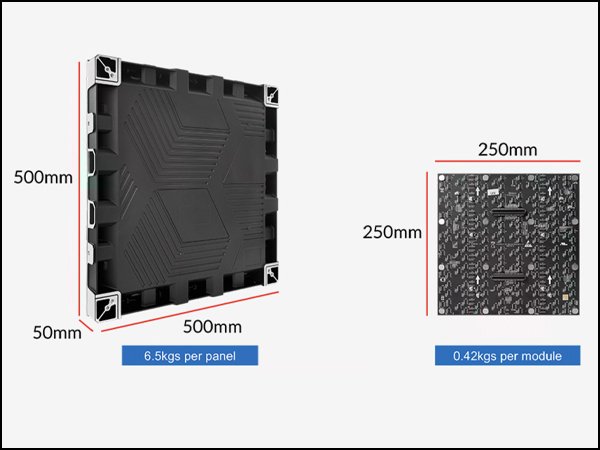

Ultra Slim Lightweight Design
Simple to use, while helping you cut down on both installation and transportation expenses

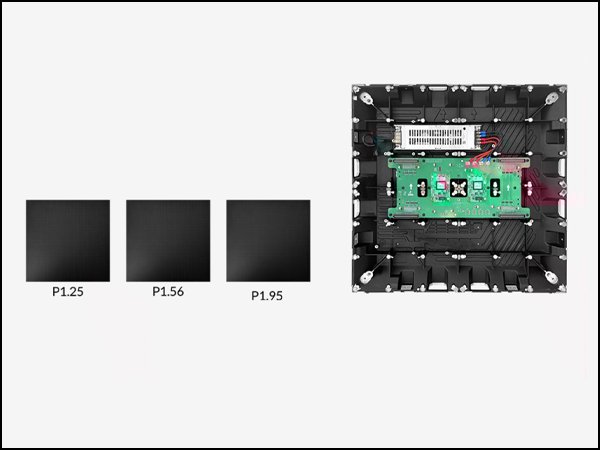

Long-lasting Platform and Multiple Pixels Available
Unlock future upgrade possibilities while keeping your wallet happy with lower upfront costs.

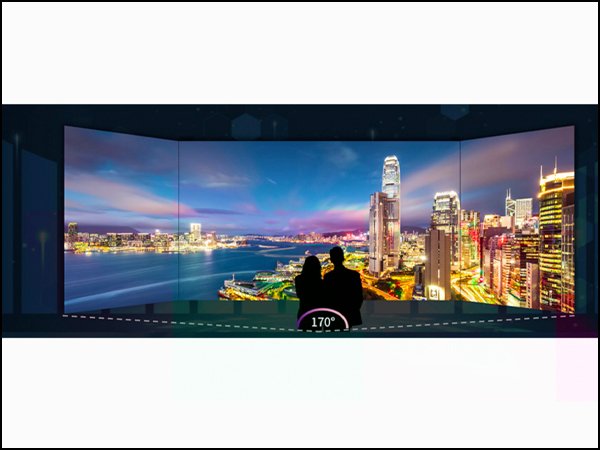

Larger Viewing Angle
Enjoy a wide vertical and horizontal viewing angle, with consistent brightness and color no matter where you sit. Experience visuals free from color distortion and glare.

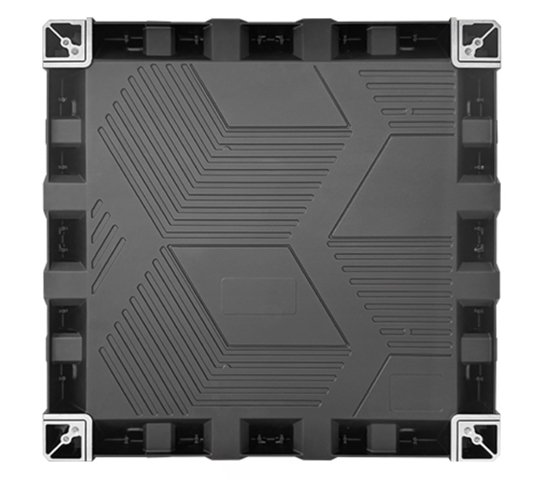

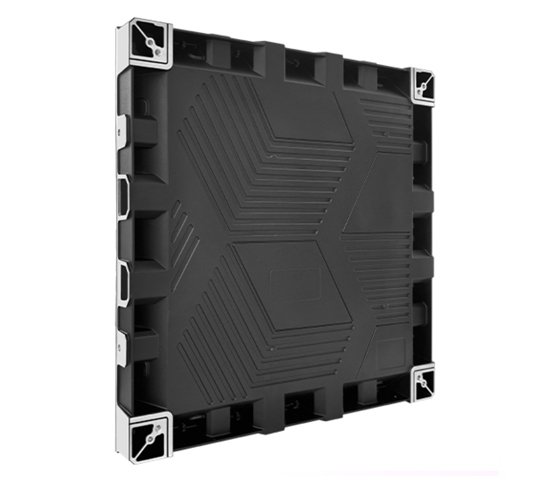

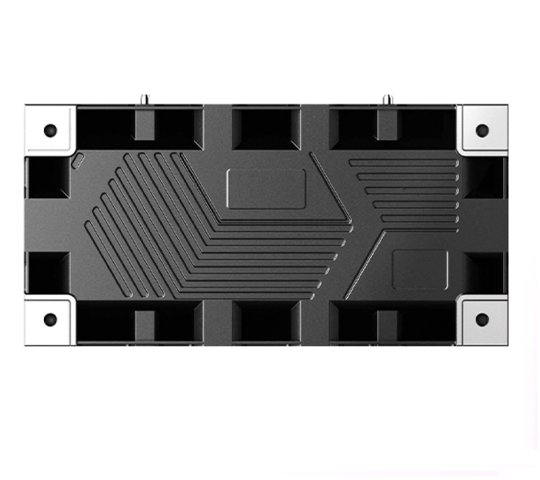

Super Flatness and Die-casting Aluminum Cabinet
A die-cast aluminum frame ensures an ultra-flat installation, creating a seamless look that remains smooth and clear even when viewed up close.
Small Pixel Pitch / Infinite Display
The V Series boasts a cabinet that pairs seamlessly with 2K, 4K, and 8K displays, creating an immersive, captivating visual experience.

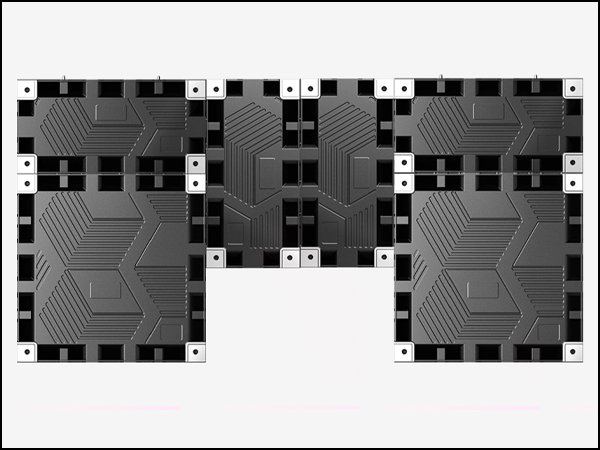

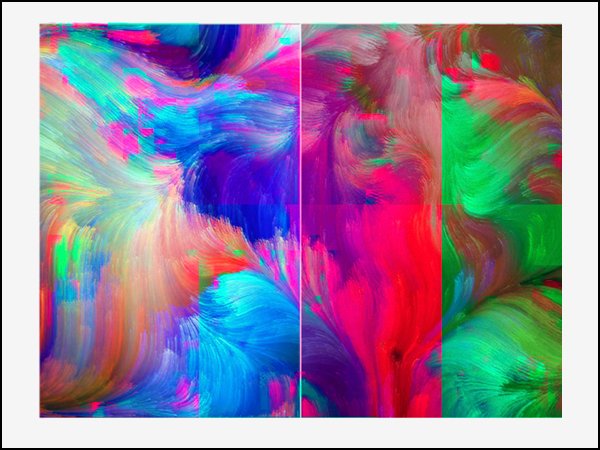

Flexible Splicing and Multiple Panel Sizes
500x500mm, 500x250mm, and 250x500mm panels can be combined to create a variety of sizes and imaginative shapes.
Cable-less Connection
Enjoy a cable-less design that delivers consistently stable performance, a neat internal layout, and effortless module replacement for hassle-free maintenance.

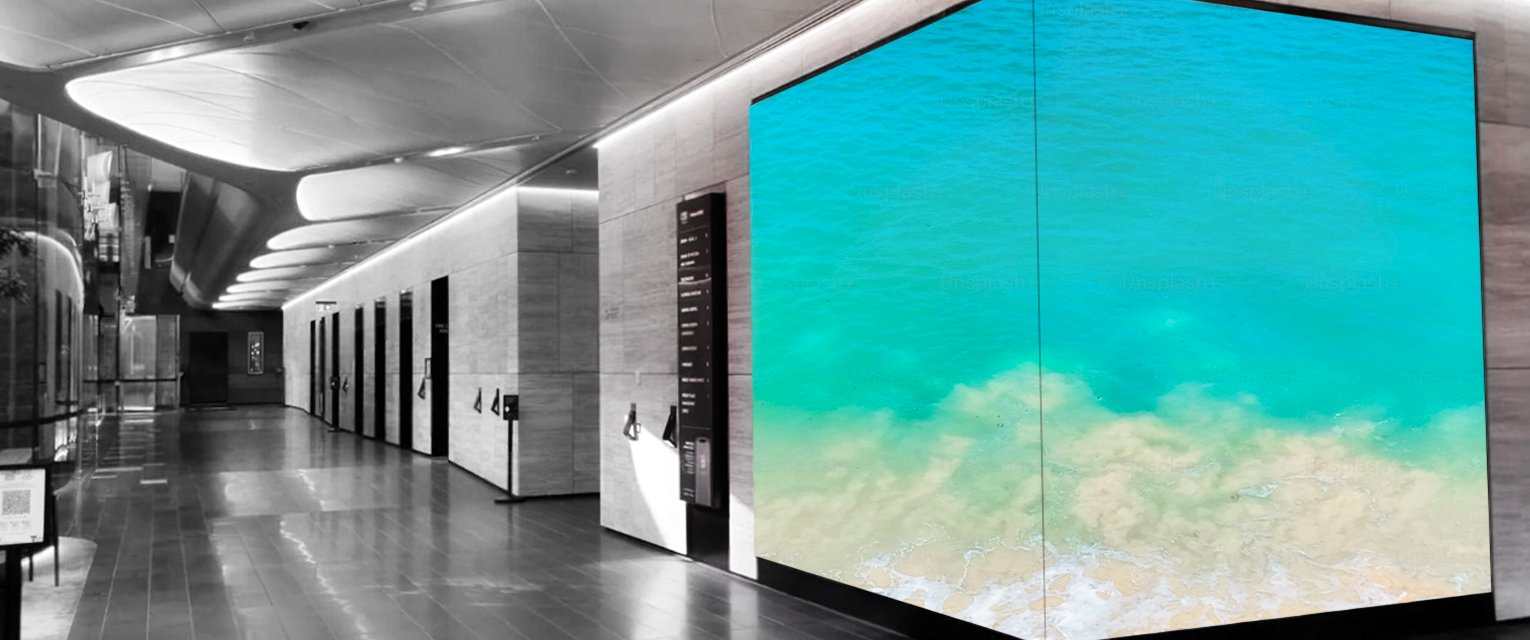

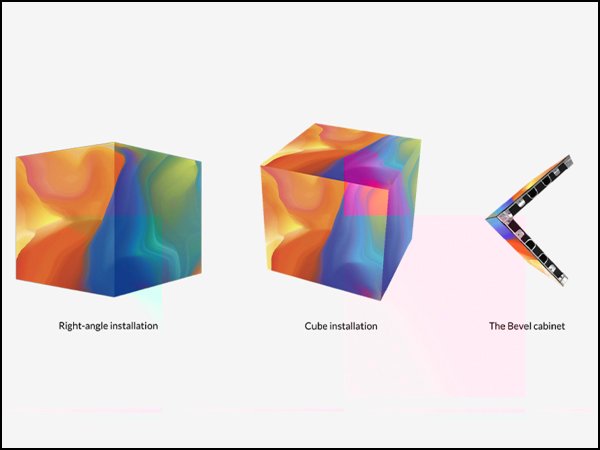

Right-angle Installations
With die-cast aluminum, the cabinet takes on a beveled shape, unlocking creative splicing options like right-angle and cube installations and opening up new possibilities for indoor applications.

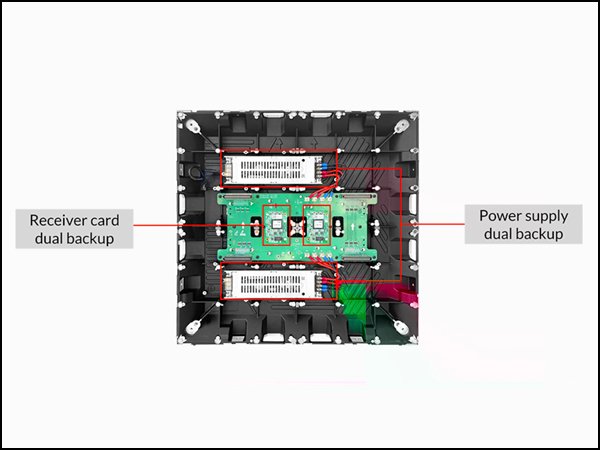

Dual Data and Power Backup
Optional power and data redundancy ensures a seamless experience during important moments, giving you peace of mind with safety and reliability.

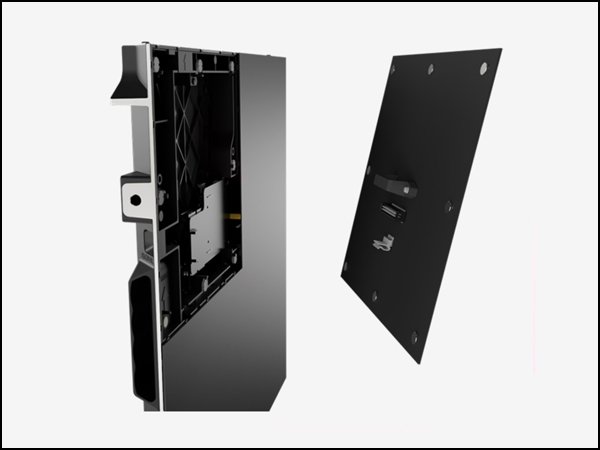

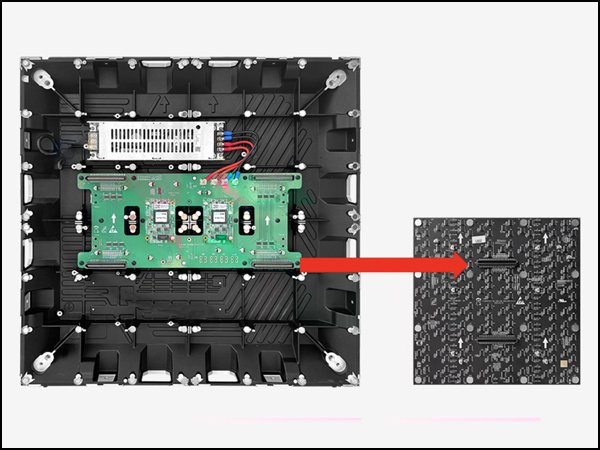

Front Installation and Maintenance
The magnetic structure makes front maintenance effortless and enables easy wall installation.

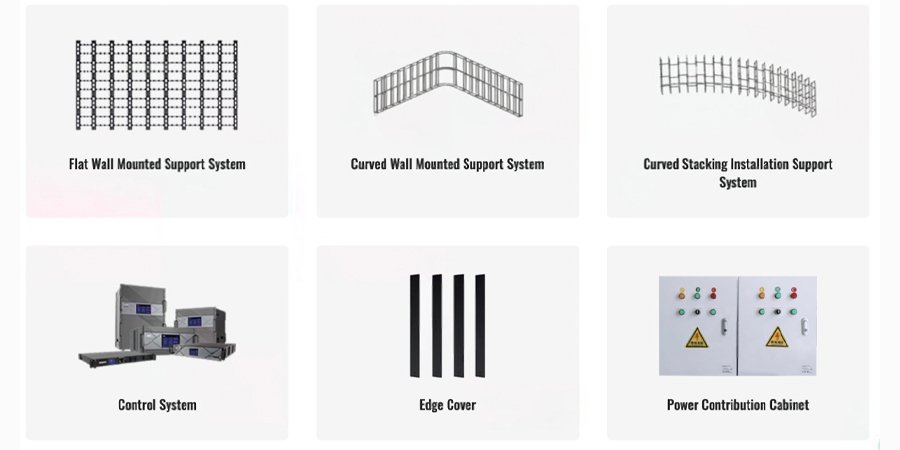

Accessories
Texture LED Series Specifications
3840HZ
Refresh Rate1000NITS
Brightness281 Trillion
Color Capability170° / 170°
Viewing Angle20000:1
Contrast RatioV COB SERIES 1.25MM COB INDOOR-V121 COB
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGING::
COB
MODULE PIXEL RESOLUTION (H x W)::
200x200dots
CABINET PIXEL RESOLUTION ( H X W)::
400x400 dots | 800x200 dots | 200x400dots | 800x400dots
BRIGHTNESS::
600-700nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500*500mm |1000*250mm | 250*500mm | 1000*500*mm
CABINET WEIGHT::
6.5Kgs ( 14.33 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
V COB SERIES 1.56MM COB INDOOR-V151 COB
▾
PIXEL PITCH::
1.5625mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
160x160dots
CABINET PIXEL RESOLUTION ( H X W)::
320x320dots | 640x160dots | 160x30dots | 640x 320dots
BRIGHTNESS::
800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500*500mm |1000*250mm | 250*500mm | 1000*500*mm
CABINET WEIGHT::
6.5Kgs ( 14.33 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
V COB SERIES 1.9MM COB INDOOR-V191 COB
▾
PIXEL PITCH::
1.953mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
128x128dots
CABINET PIXEL RESOLUTION ( H X W)::
256x256dots | 512x128dots | 128x256dots | 512x256dots
BRIGHTNESS::
800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500*500mm |1000*250mm | 250*500mm | 1000*500*mm
CABINET WEIGHT::
6.5Kgs ( 14.33 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
V COB SERIES 1.9MM COB INDOOR-V191 COB
▾
PIXEL PITCH::
1.953mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
128x128dots
CABINET PIXEL RESOLUTION ( H X W)::
256x256dots | 512x128dots | 128x256dots | 512x256dots
BRIGHTNESS::
2000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500*500mm |1000*250mm | 250*500mm | 1000*500*mm
CABINET WEIGHT::
6.5Kgs ( 14.33 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
