FL Series

Shape Your Screen

Unleash your creativity with a flexible, bespoke LED wall solution that turns your vision into reality, guiding you from the first sketch to the final installation.
More Information Specifications

FL SERIES Description

The FL Series Flexible LED screen unlocks creative freedom, turning any vision into reality with its limitless shapes and sizes. Imagine columns, tunnels, trees, spirals, spheres, ribbons, and more—this display adapts to your boldest ideas.

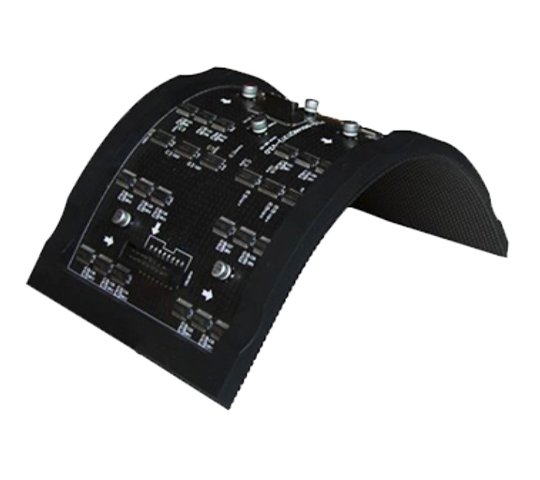

Its bendable structure, crafted with soft yet resilient PCBs, lets you shape dazzling convex and concave curves that snap easily onto metal frames with built-in magnets. This flexibility makes it the go-to choice for ambitious projects in TV studios, museums, trade shows, exhibition halls, bars, shopping malls, casinos, hotels, and theme parks. Create captivating, dynamic displays that transform any space into a visually stunning experience.

From the first sketch to the final installation, we bring your wildest ideas to life.

Unleash your creativity with the FL Series—the ultimate solution for building seamless, one-of-a-kind LED displays that effortlessly adapt to any structure or environment.

Get a quote
❮
❯

Key Features

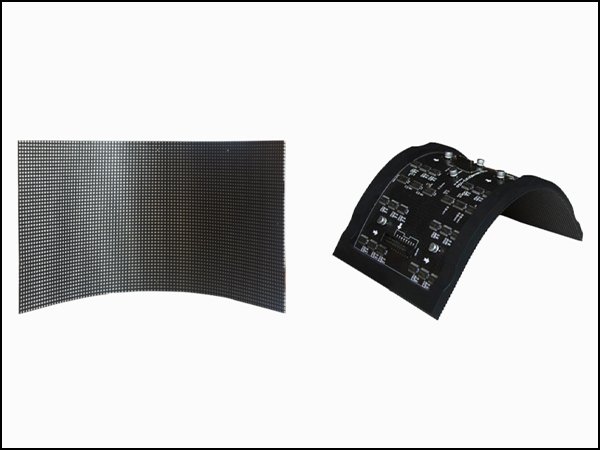

Highly Flexible / Concave and Convex Curves

−

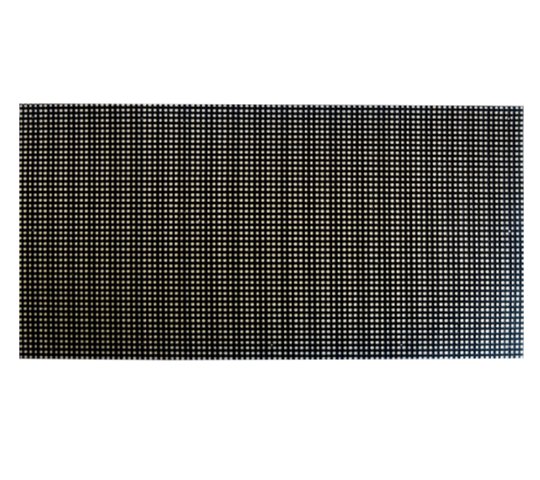

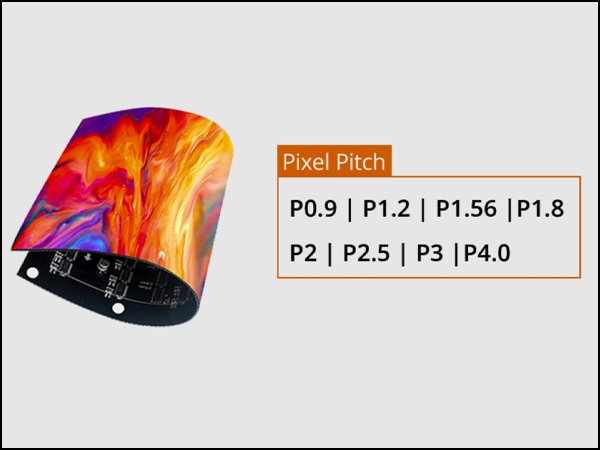

High Resolution Modules

−
With a broad spectrum of pitch options, you can enjoy crisp high-resolution video and unlock imaginative possibilities for architectural displays.

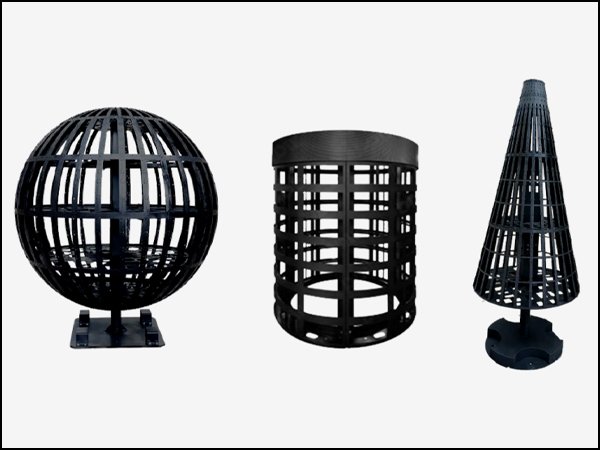

Custom Frames

−
Our FL LED tiles snap onto almost any surface with powerful magnets, while the custom framing structure brings your unique vision and shapes to life.

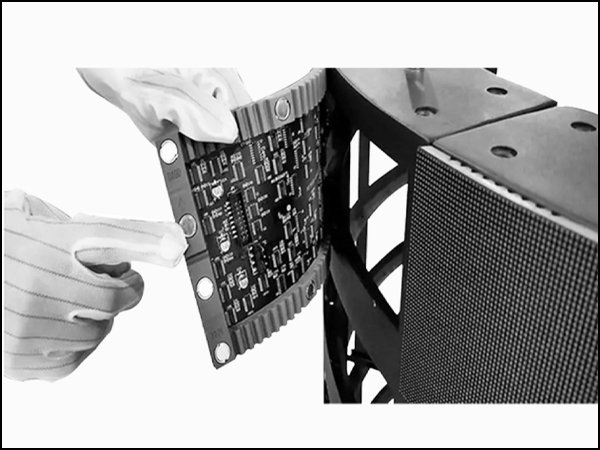

Advanced Magnetic Connection System

+
With magnetic mounts and set screw ports, you can easily secure these to almost any metal surface or LED video setup, unlocking endless creative possibilities.

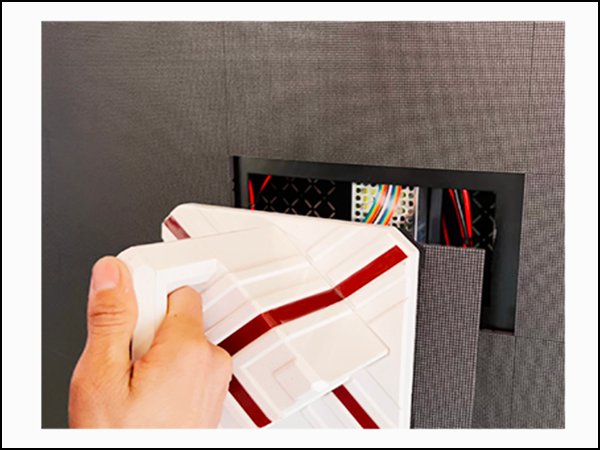

Easy Front Maintenance

+
Effortless single-module swaps boost serviceability right where you need it most: out in the field.

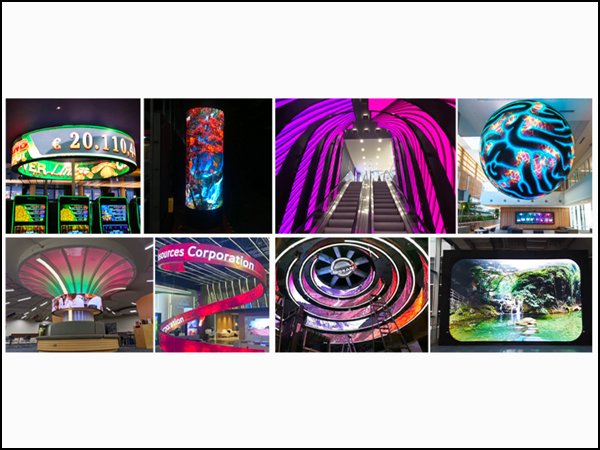

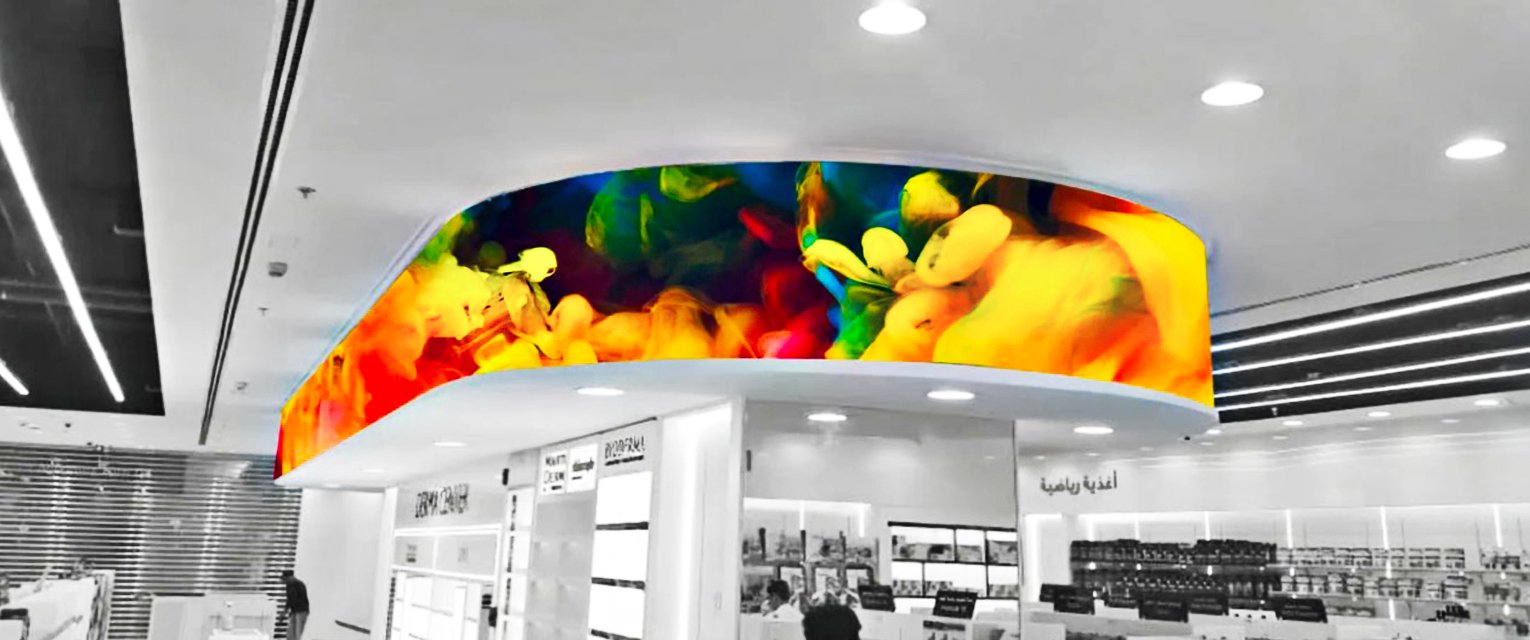

Creative Configurations

+
With FL Series Flexible LED displays, bringing angles, curves, and seamless cylindrical designs to life becomes effortless and inspiring.

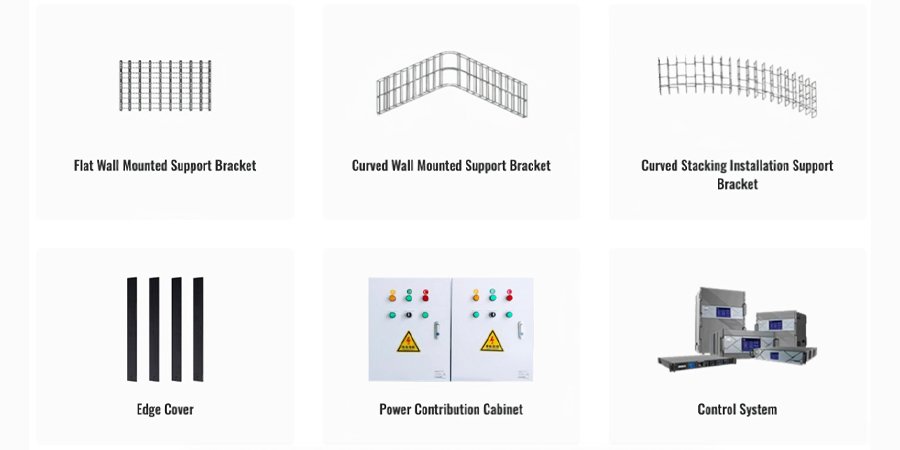

Accessories

+

Texture LED Series Specifications

3840Hz

Refresh Rate

1000NITS

Brightness

281 Trillion

Color Capability

140° / 140°

Viewing Angle

5000:1

Contrast Ratio

FL SERIES 0.9MM SMD INDOOR-FL091

▾
PIXEL PITCH:: 0.9375mm
PIXEL CONFIGURATION & PACKAGING:: 3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W):: 256x128dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 800nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
MODULE WEIGHT:: 0.12Kgs ( 0.26 lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Access Product Spec Sheet

FL SERIES 1.2MM SMD INDOOR-FL121

▾
PIXEL PITCH:: 1.25mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 256x128dots | 192x96dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 800 nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
MODULE WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Access Product Spec Sheet

FL SERIES 1.56MM SMD INDOOR-FL151

▾
PIXEL PITCH:: 1.56mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 204x102dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 800nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Access Product Spec Sheet

FL SERIES 1.8MM SMD INDOOR-FL181

▾
PIXEL PITCH:: 1.8mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 172x86dots | 128x64dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Rear Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Access Product Spec Sheet

FL SERIES 2MM SMD INDOOR-FL201

▾
PIXEL PITCH:: 2.0mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 160x80dots | 120x60dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.

FL SERIES 2.5MM SMD INDOOR-FL251

▾
PIXEL PITCH:: 2.5mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 128x64dots | 96x48dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃

FL SERIES 3MM SMD INDOOR-FL301

▾
PIXEL PITCH:: 3.0mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 104x52dots | 80x40dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃

FL SERIES 4.0MM SMD INDOOR-FL401

▾
PIXEL PITCH:: 4mm
PIXEL CONFIGURATION & PACKAGE:: 3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W):: 60x30dots
CABINET PIXEL RESOLUTION ( H X W):: Customized
BRIGHTNESS:: 1000nits
REFRESH RATE:: 3840Hz
CABINET SIZE:: Customized
CABINET WEIGHT:: 0.17Kgs ( 0.37lbs)
ACCESSIBILITY:: Front Access
IP RATING:: IP30
CONTRAST RATIO:: 5000:1
WORKING TEMPERATURE:: -20℃~+40℃
ACCESS PRODUCT SPEC SHEET
