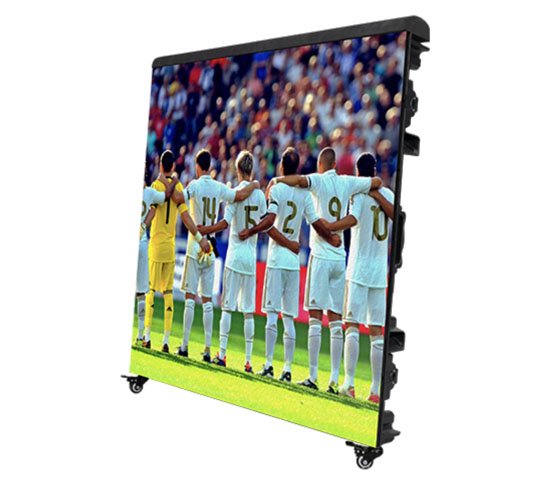

Q Series
Capture Every Moment
Q Series transforms stadium sidelines with its outdoor LED screen, delivering a vibrant, high-definition experience that draws every spectator into the action.
Q SERIES Description

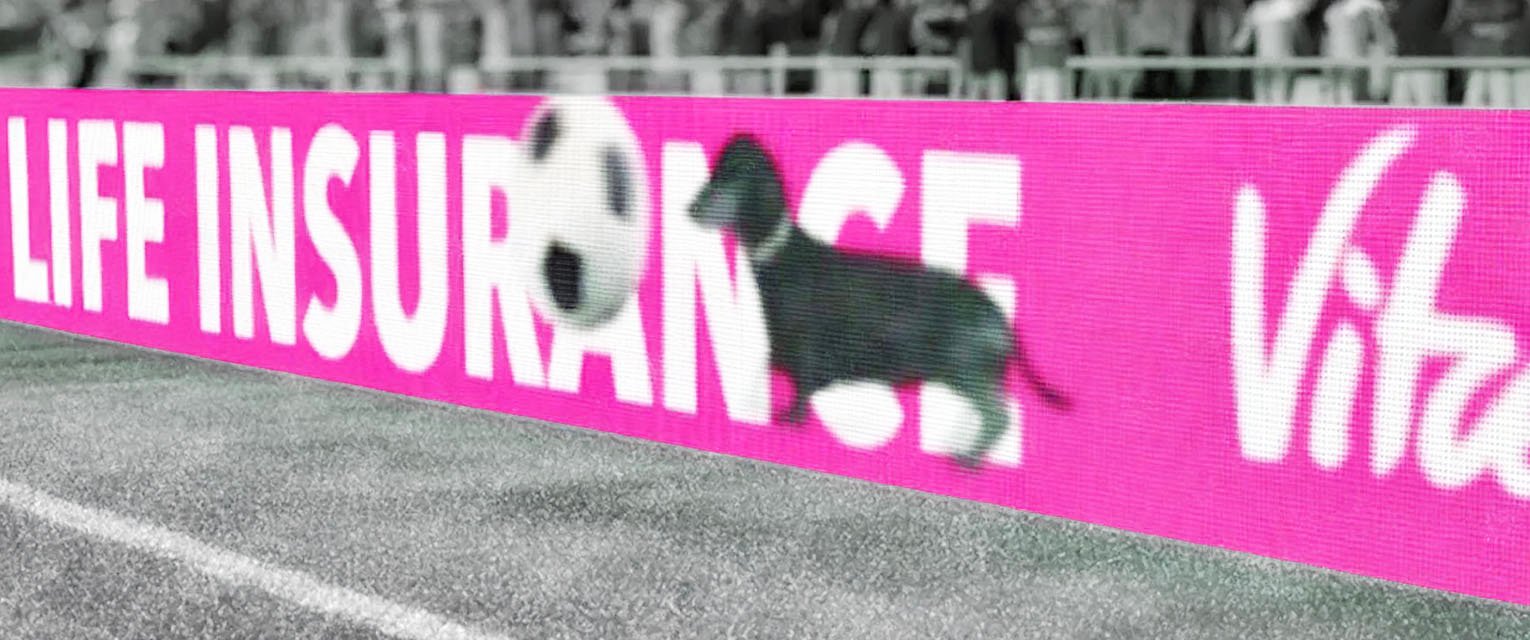

Q Series perimeter LED Displays transform stadiums with massive, vibrant banners that light up both outdoor and indoor arenas.
•Flexible installation lets you showcase sponsor messages on one or both sides of the stadium. Their modular design fits perfectly along the sidelines or behind the goalposts, adapting to any sports field.
•They are typically used in stadiums, sports halls, racetracks, multi-purpose sports facilities, and other professional sports applications.
•Our most popular models, P6, P8, and P10, are in high demand for their outstanding performance.
•Flexible installation lets you showcase sponsor messages on one or both sides of the stadium. Their modular design fits perfectly along the sidelines or behind the goalposts, adapting to any sports field.
•They are typically used in stadiums, sports halls, racetracks, multi-purpose sports facilities, and other professional sports applications.
•Our most popular models, P6, P8, and P10, are in high demand for their outstanding performance.
Key Features

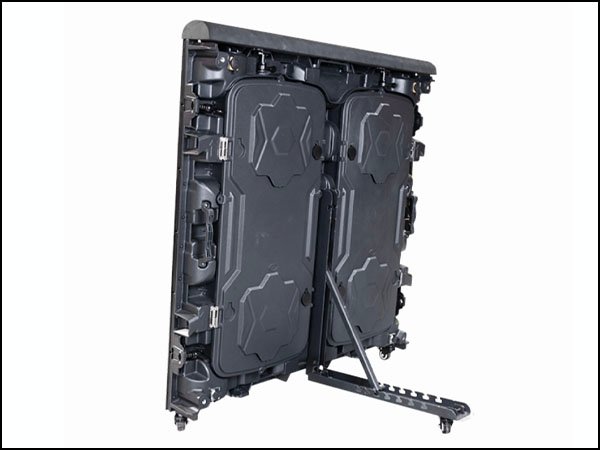

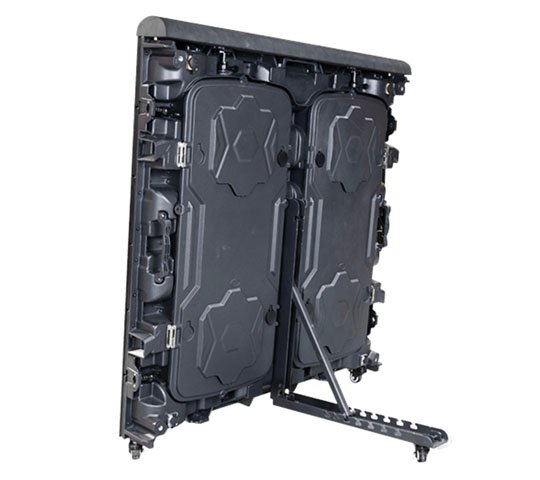

Die Casting Magnesium Cabinet
-Each panel weighs just 28kg, making it 30% lighter than standard iron cabinets and helping you reduce both labor and shipping costs.
-Eco-friendly design that is both recyclable and conserves valuable resources.
-Crafted with high-precision CNC processing for exceptional flatness and quality.
-Eco-friendly design that is both recyclable and conserves valuable resources.
-Crafted with high-precision CNC processing for exceptional flatness and quality.
Humanization Design

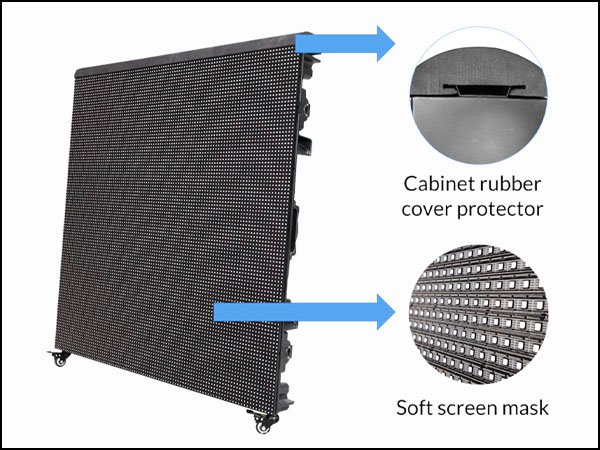

A soft screen mask, crafted with a three-layer sloped design, absorbs impacts with ease and quickly sheds rain. Meanwhile, the cabinet’s rubber cover protector stands guard, keeping players safe even in the heat of fierce matches.

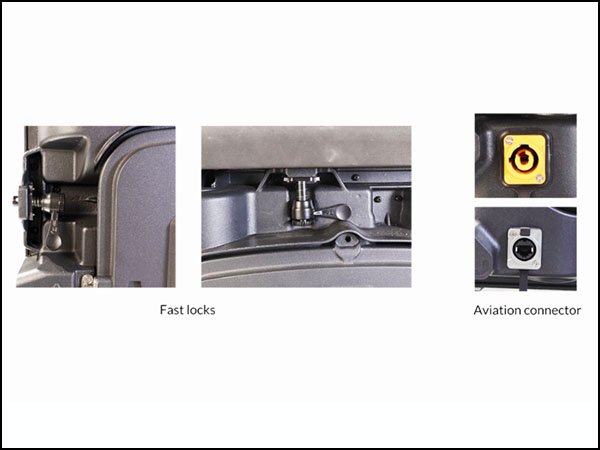

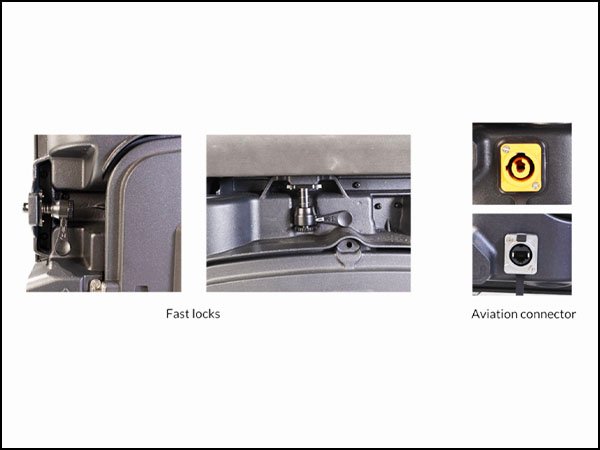

Quick Installation and High Standard Aviation Connector
By saving installation time and using aviation connectors, you guarantee the screen remains stable and dependable, even during the most critical events.

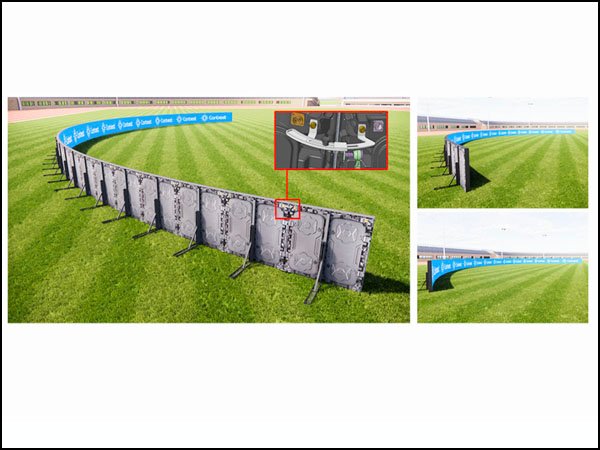

Curved Splicing
The LED screen offers dynamic 0° to 20° arc-splicing effects, unlocking new creative options for innovative stadium design.

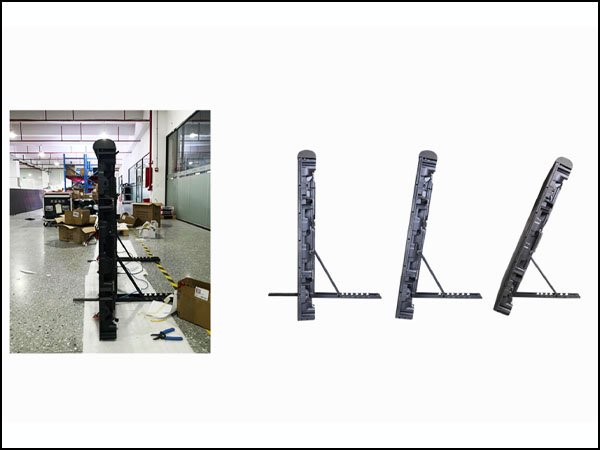

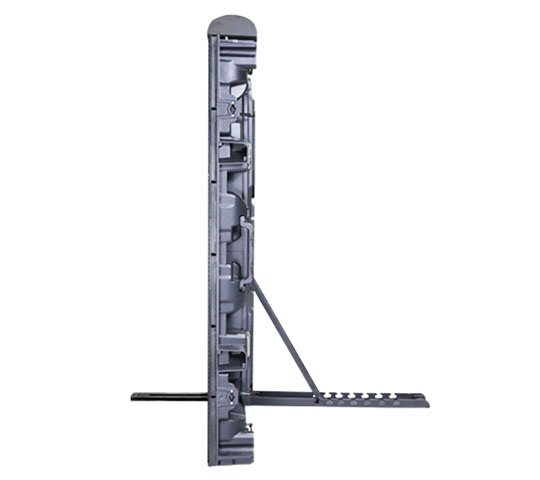

Independent Support Structure / Multi-angle Adjustment
The independent brackets adjust flexibly between 60° and 90° to suit both audience and camera setups.
Foldable Design
Easy to transport and cost-effective, this screen is ready for action—perfect for advertising or stage rentals —offering endless possibilities with one versatile solution.

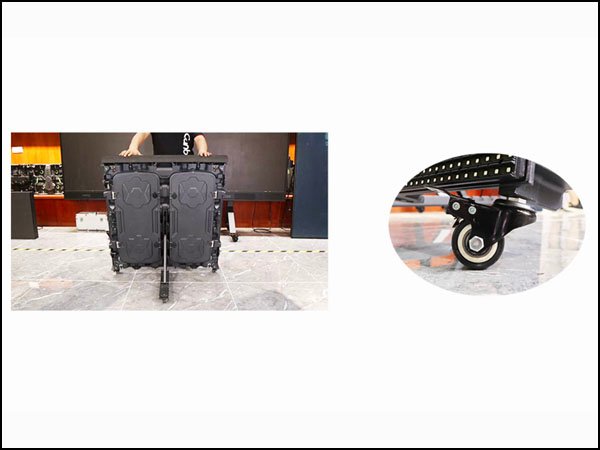

Rotating Design and Wheels Emergency Exit
The Q Series features a rotating base and wheels, ensuring perimeter LED displays in stadiums can be swiftly moved for emergency exits. This design meets the urgent escape needs set by most football associations.
High IP Rating
Whether you need it inside or out, this device rises to the occasion with cutting-edge outdoor SMD technology. Its IP65 rating means it stands up to water, no matter the weather.

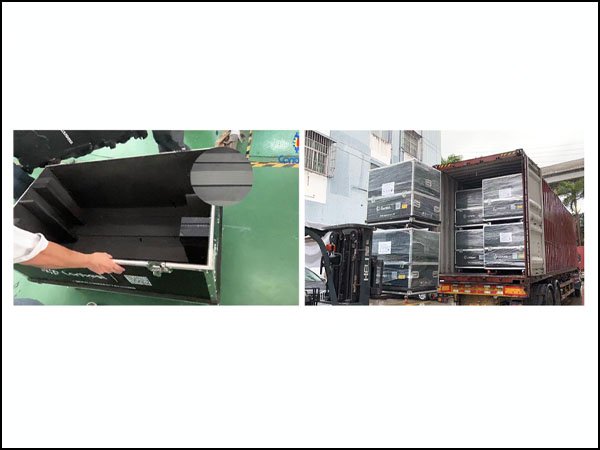

Customized Flight Case Package /Easy and Convenient
Texture LED Series Specifications
3840Hz
Refresh Rate5500-8000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioQ SERIES 6.67MM SMD OUTDOOR-Q6
▾
PIXEL PITCH::
6.67
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
48x24dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
5500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Rear Acess
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Q SERIES 8MM SMD OUTDOOR-Q8
▾
PIXEL PITCH::
8mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
40x20dots
CABINET PIXEL RESOLUTION ( H X W)::
120x120dots
BRIGHTNESS::
4500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Rear Acess
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
Q SERIES 10MM SMD OUTDOOR-Q10
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
32x16dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
6500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Rear Acess
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
