APRO Series
The Best Common Cathode Aluminum Outdoor LED Billboard Display
Experience a premium outdoor LED screen that dazzles with over 10000-nit brightness, delivers reliable power and data redundancy, and thrives in both scorching heat and freezing cold.

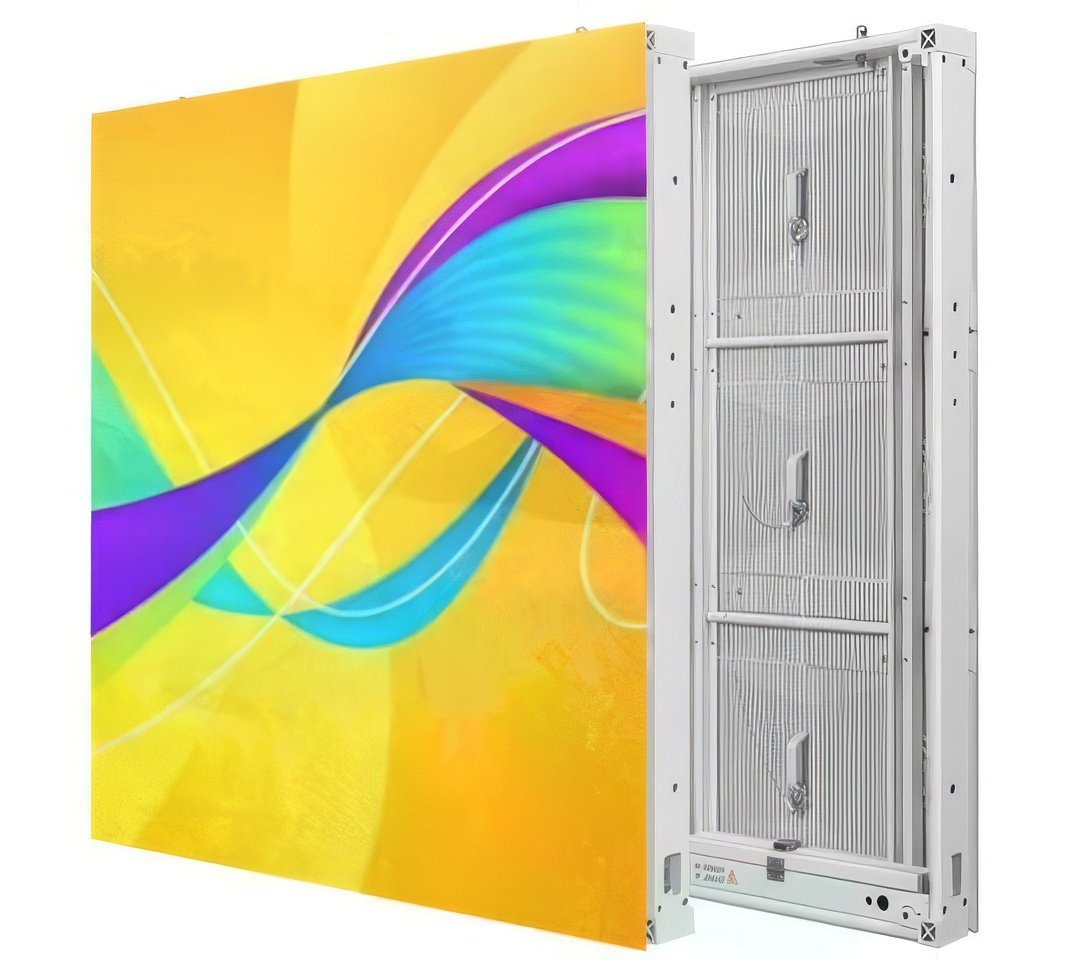

APRO SERIES Description
The APRO Series outdoor LED display is purpose-built to thrive in scorching heat, freezing cold, and dazzling sunlight. Its rugged, weatherproof aluminum construction shields it from rain, snow, dust, and more, guaranteeing unwavering performance no matter what nature throws its way.
Harnessing advanced LED technology, it slashes power consumption without sacrificing brilliance. With cutting-edge thermal management, dazzling brightness up to 12000 nits, and an IP66 weatherproof rating, your content shines vividly and captivates audiences with rock-solid reliability.
The A Pro Series offers customizable curved installations, perfect for breathtaking giant 3D naked-eye displays. We also provide a complete package kit for a seamless, one-stop purchase. Let our premium LED screen elevate your brand and leave a lasting impression.
Key Features
Super High Brightness

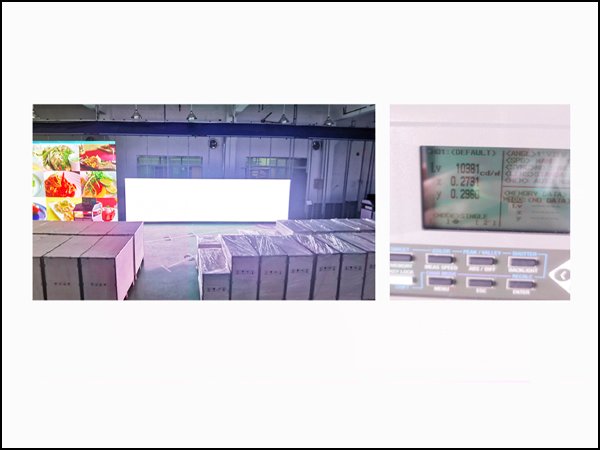

Boasting dazzling brightness above 10,000 nits and minimal light decay under 5%, this display shines as brilliantly as day one, even after five years.

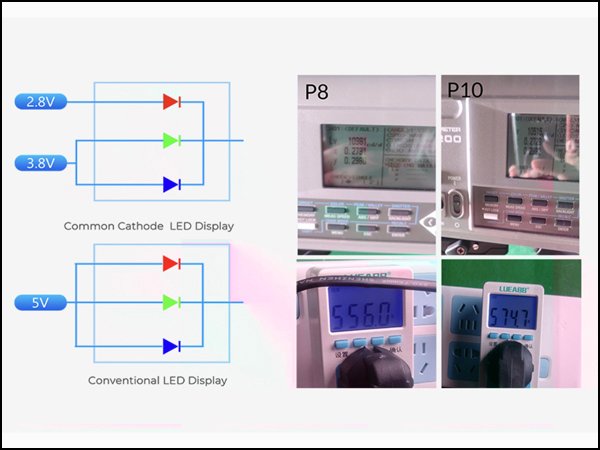

Super Energy Saving
Featuring a common-cathode design, this system delivers 10,000 brightness at peak white balance while consuming just 550W. Even at 7,000 brightness, it sips only 280w. With minimal heat and excellent dissipation, you can forget about needing air conditioning.

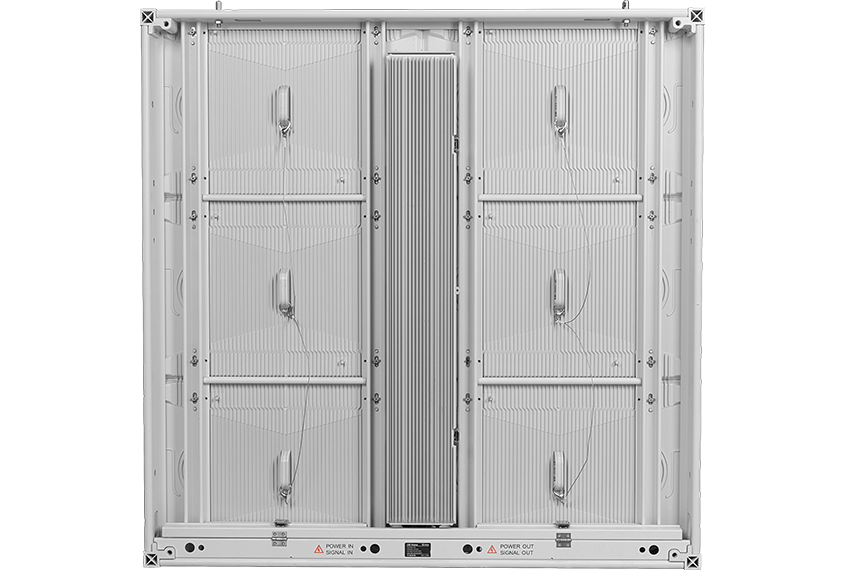

Super Lightweight

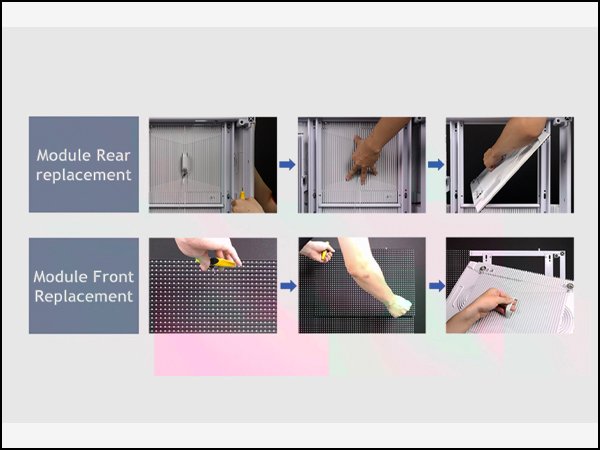

This lightweight aluminum panel weighs just 28kg per square meter and measures 75mm thick. It offers full front and rear maintenance access, with front access allowing direct wall installation. The cleverly designed cable slot helps keep insects and rodents at bay.

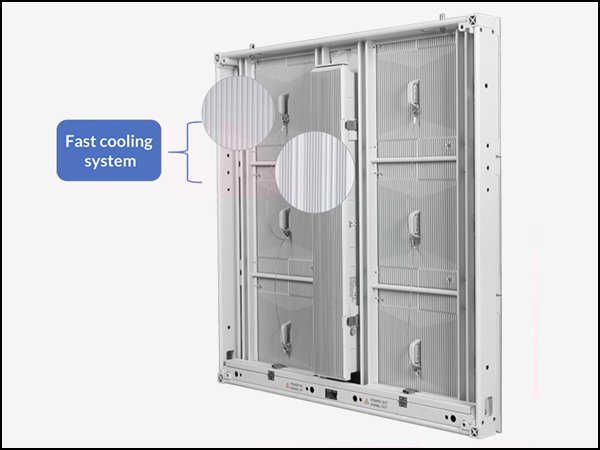

Super Stable - Engine Cooling Technology

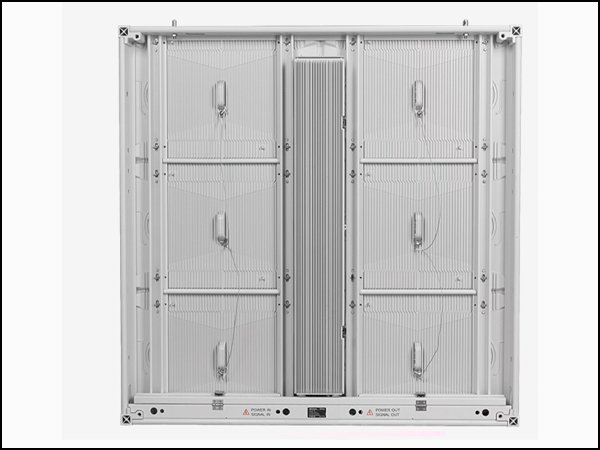

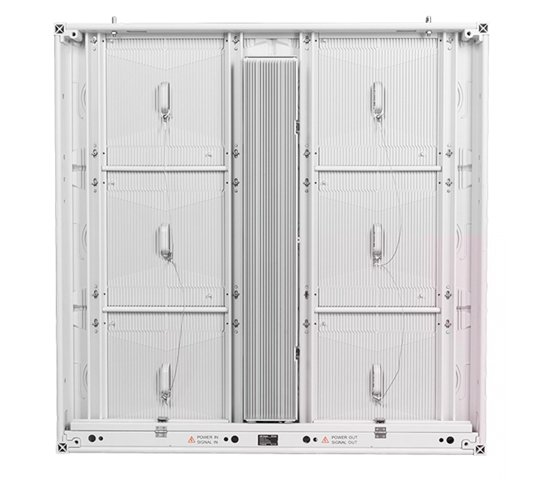

Featuring a common-cathode, energy-saving design for minimal heat, these products boast an all-aluminum bottom shell for excellent heat dissipation. Engine-inspired technology ensures high efficiency, while premium brand materials and rigorous temperature testing guarantee unwavering stability. Enjoy wireless connectivity that surpasses the stability of traditional 5V cable connections.

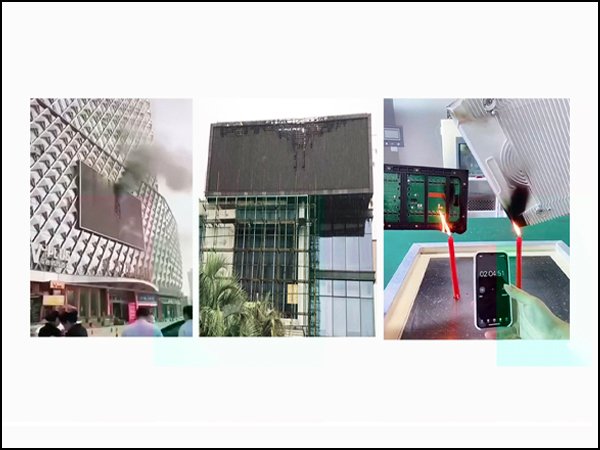

Super Safe -5VB Fire Rating
Super Safe- IP66 Waterproof

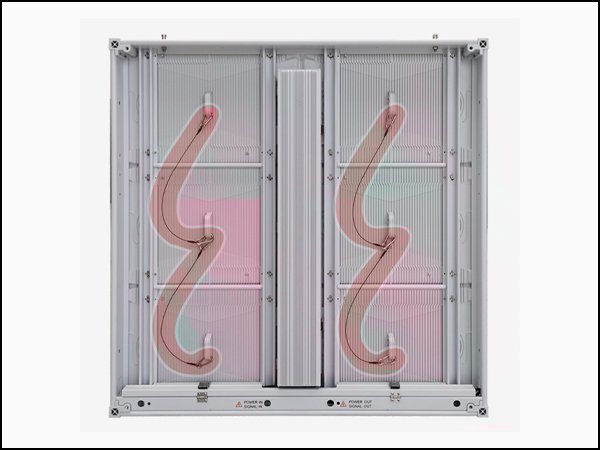

Security Cable Design
Ensure the module stays secure and safe from falling during maintenance work
Excellent Performance for Harsh Conditions
Perfectly suited for everything from icy winters to scorching summers, whether by the seaside or at the pool and beyond

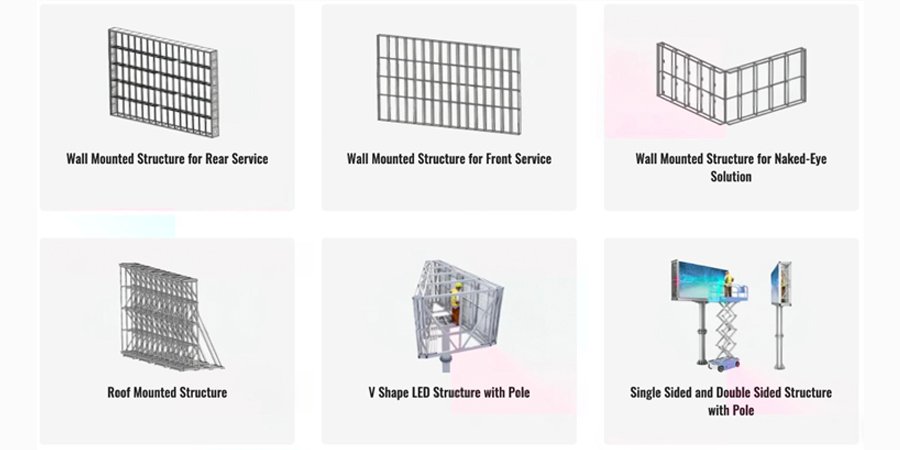

All Inclusive Package
Whether you need a wall, pole, rooftop, or truck mount for your outdoor DOOH setup, we provide perfectly matched structures for our A Pro Panels, making your purchase process faster and easier.
Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate5500~10000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000：1
Contrast RatioAPRO SERIES 4.4MM SMD OUTDOOR-A4PRO
▾
PIXEL PITCH::
4.4mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
108x54dots
CABINET PIXEL RESOLUTION ( H X W)::
216x216dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79Inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO SERIES 5.7MM SMD OUTDOOR-A5PRO
▾
PIXEL PITCH::
5.7mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
84x56dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
5500~7500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
APRO SERIES 6.67MM SMD OUTDOOR-A6PRO
▾
PIXEL PITCH::
6.67
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
72x48dots
CABINET PIXEL RESOLUTION ( H X W)::
144x144dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-30℃~+60℃
APRO SERIES 8MM SMD OUTDOOR-A8PRO
▾
PIXEL PITCH::
8mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
60x40dots
CABINET PIXEL RESOLUTION ( H X W)::
120x120dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-30℃~+60℃
APRO SERIES 10MM SMD OUTDOOR-A10PRO
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
48x32dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79inch)
CABINET WEIGHT::
25Kgs ( 55.11 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000：1
WORKING TEMPERATURE::
-30℃~+60℃
