XS Series
NEVER Black Screen (Black Lamps Option)
Experience the ultimate all-in-one LED platform, adaptable to flat, curved, or 90° designs, and driven by PST and PMS for unwavering, round-the-clock performance.
XS SERIES Description

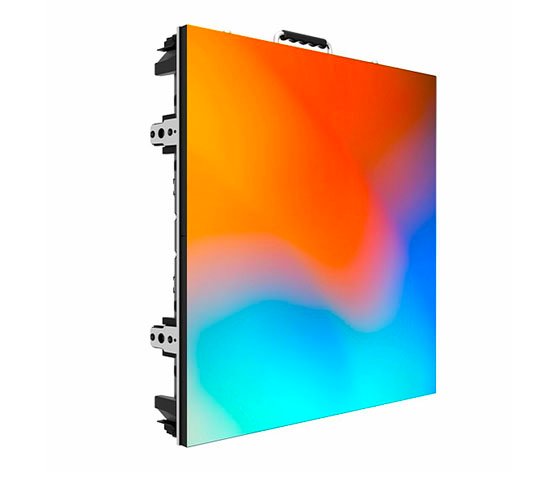

XS Series (PST Version)- Indoor & Outdoor Smart Modular LED Displays for Events.
Step into a world of vivid digital storytelling and mesmerizing visuals with top-tier modular LED displays, designed to transform any indoor or outdoor setting.
XS Intelligent LED Wall is crafted for demanding rental environments, boasting cutting-edge PST (Power Share Technology) and an intelligent PMS (Power Monitoring System). Within the XS series, if a power unit falters, backup supplies step in instantly, keeping your display running smoothly and without interruption. This built-in redundancy boosts reliability and ensures seamless transitions during failures, so blackouts never disrupt your visuals.
PST technology works hand in hand with the PMS intelligent monitoring system, constantly tracking the health and workload of every power module in real time. If a problem arises, the system swiftly adapts, balancing the load and switching to backup power to keep everything running. Operators receive instant software alerts pinpointing the exact issue, making maintenance quick and hassle-free.
Thanks to the power load balancing and redundancy of PST+PMS technology, the XS display delivers unwavering performance, even during power hiccups or imbalances. Blackouts and interruptions become a thing of the past.
-With its modular LED cabinet design, you can build video walls tailored to any content or venue. The XS Series offers pixel pitches of P1.9, P2.6, and P3.9, with panel sizes of 500x500mm and 500x1000mm, giving you the flexibility to bring your vision to life.
Key Features

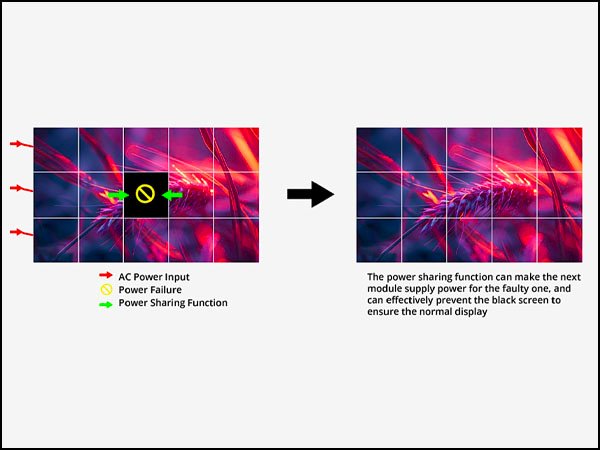

Never Black Screen with Power Sharing Technology (PST)
If the AC circuit fails, the LED screen seamlessly switches to DC power from a nearby panel, ensuring uninterrupted, stable operation. Thanks to our PST technology, the entire display achieves a ‘Never Black Screen’ effect, making it the top choice for critical applications.

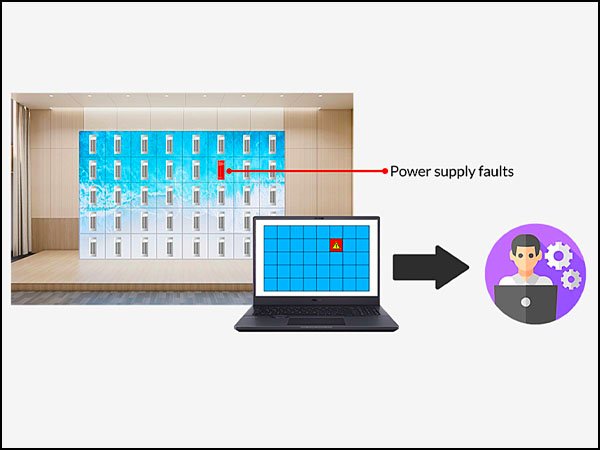

1 Second Detection
Our PMS system keeps a vigilant eye on every power supply, monitoring its status in real time. If a failure occurs, it quickly pinpoints the issue and alerts the operator, making replacements fast and easy. This improves troubleshooting efficiency and reduces operational costs.

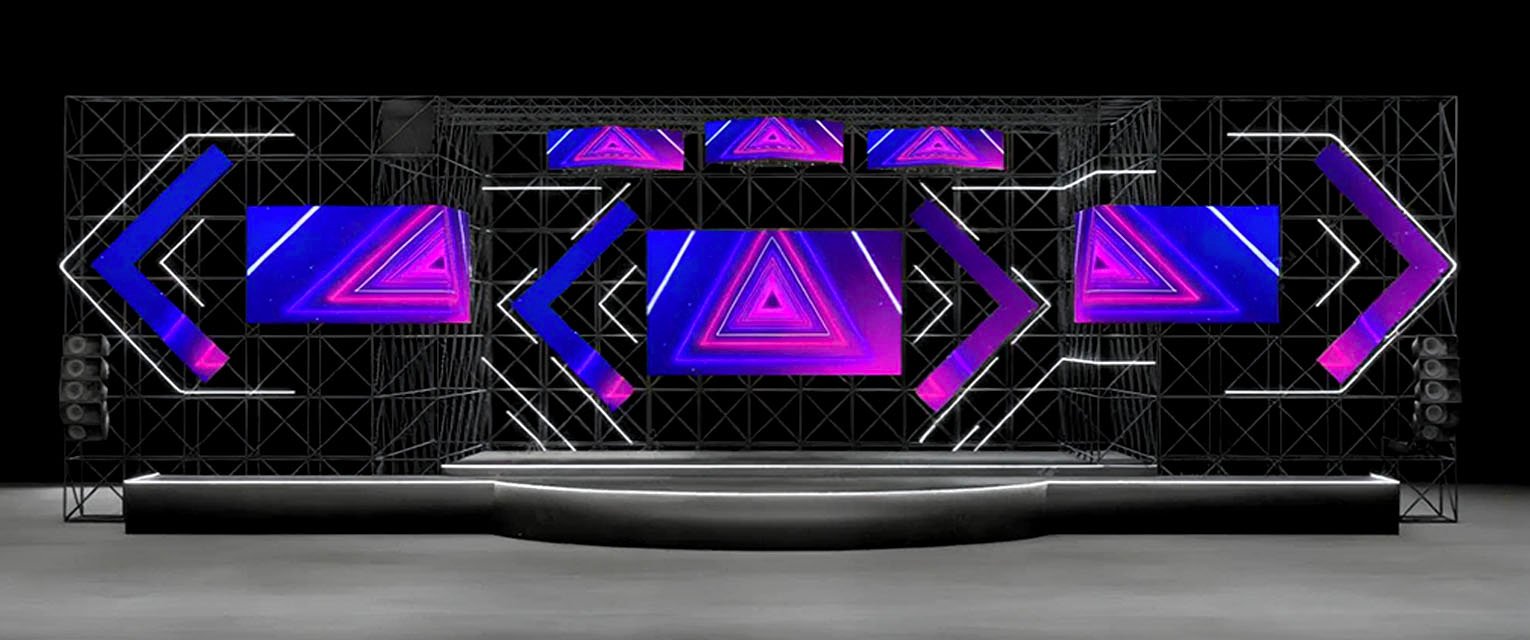

Mutually Splicing / Creative Design
The XS series comes in Regular, Flex, and 90-degree angle options, making assembly and repairs a breeze. It stands toe-to-toe with the highly expandable XSC series and is perfectly suited for imaginative display needs.

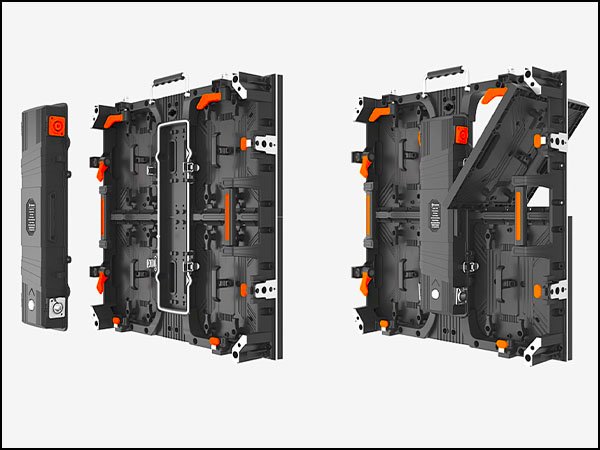

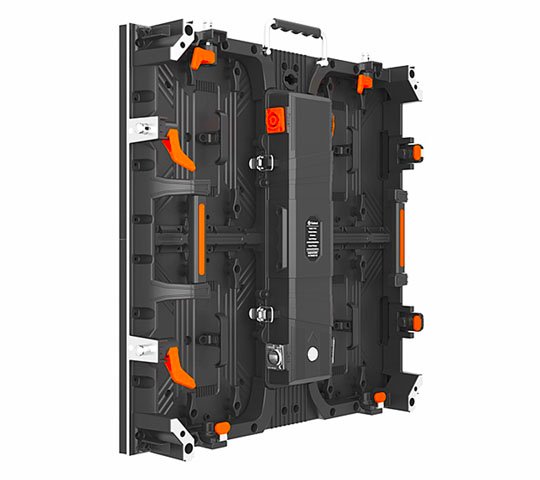

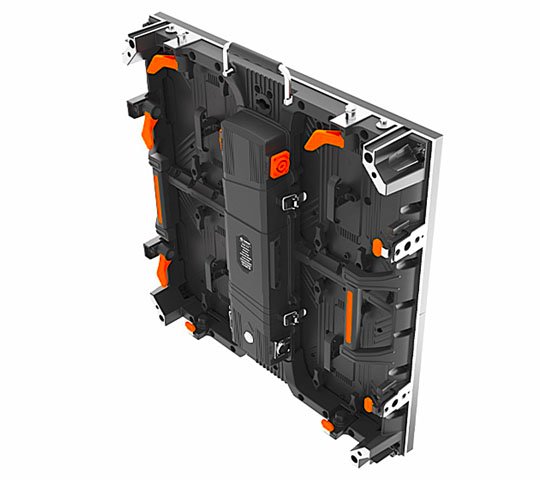

Modular Design Enables Hassle-Free Maintenance
With support for both front and rear service, the universal modules can be used interchangeably on the left or right, helping to lower spare part costs. The highly integrated power box makes maintenance simple and independent.
Perfect and Stunning Visuals with 7680Hz
Boasting up to 1000 nits of brightness, 16-bit grayscale, and a refresh rate of at least 7680Hz, the XS Series delivers breathtaking visuals that draw audiences in with its remarkable performance.

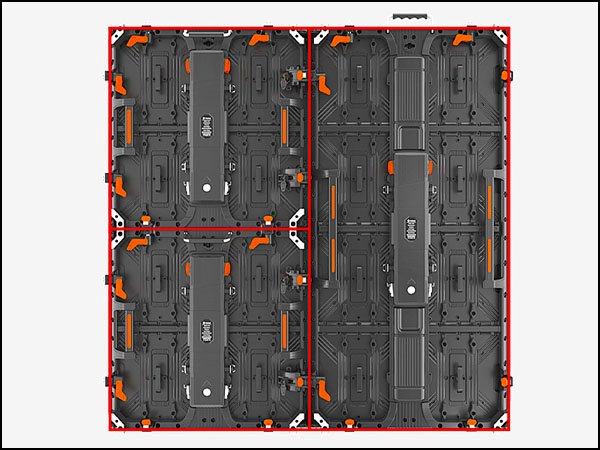

Mixed and Match

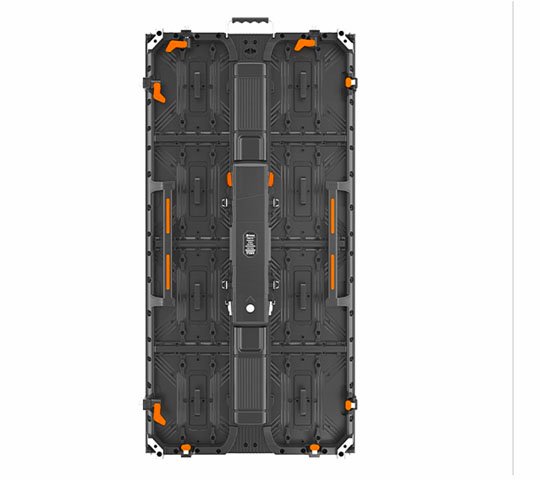

500x500mm and 500x1000mm cabinets seamlessly link together in any direction, unlocking endless possibilities for creative configurations.

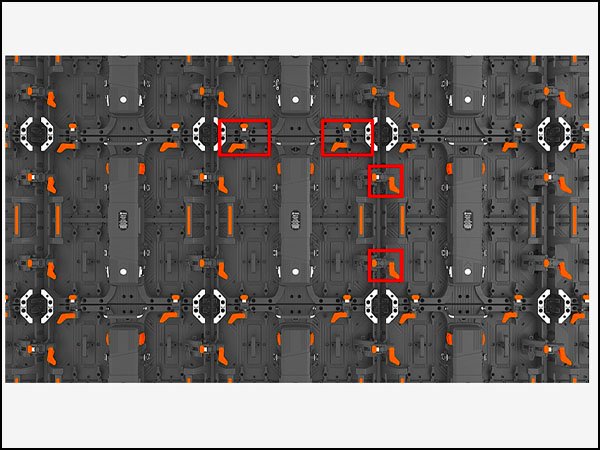

Fast Locking System / The XS series features a rapid locking system with instant feedback and cleverly placed magnets at both ends of each module, so operators can set up quickly.Quick Assembly and Disassembly
The XS series features a rapid locking system with instant feedback and cleverly placed magnets at both ends of each module, so operators can set up quickly.

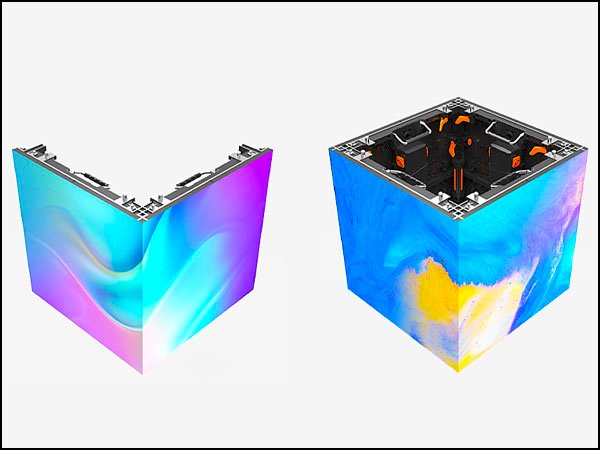

Perfect 90° Installation
A 45° bevel opens up new possibilities for splicing L shapes and cubes, inviting even greater creativity.

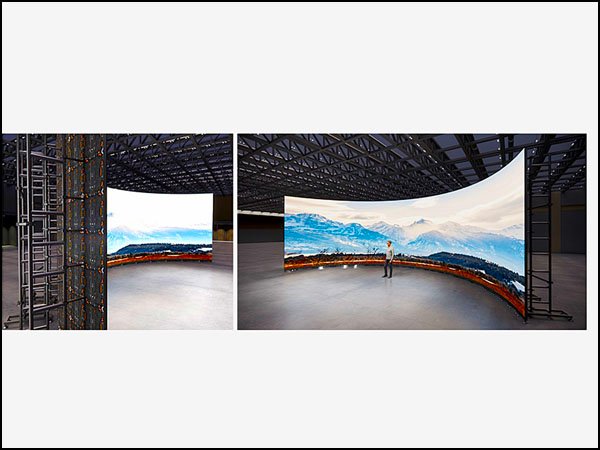

Curving Installation
XS series panels effortlessly shape from -12.5° convex to +12.5° concave, while the advanced curve lock system ensures flawless connection accuracy in any setup and delivers breathtaking stage visuals.
Accessories
Texture LED Series Specifications
7680HZ
Refresh Rate1000NITS
Brightness281 Trillion
Color Capability140° / 140°
Viewing Angle5000:1
Contrast RatioXS SERIES 1.9MM SMD INDOOR-XS191
▾
PIXEL PITCH::
1.9mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD / GOB
MODULE PIXEL RESOLUTION (H x W)::
128x128dots
CABINET PIXEL RESOLUTION ( H X W)::
256x256dots
BRIGHTNESS::
800nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch)
CABINET WEIGHT::
7.1Kgs ( 15.65 lbs )
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
XS SERIES 2.6MM SMD INDOOR-XS261
▾
PIXEL PITCH::
2.604mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
96x96dots
CABINET PIXEL RESOLUTION ( H X W)::
192x192dots | 192x384dots
BRIGHTNESS::
1000 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.1Kgs ( 15.65 lbs) | 13Kgs (28.66 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
XS SERIES 2.6MM SMD OUTDOOR-XS260
▾
PIXEL PITCH::
2.604mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD ( Black Lamp option)
MODULE PIXEL RESOLUTION ( H X W)::
96x96dots
CABINET PIXEL RESOLUTION ( H X W)::
192x192dots | 192x384dots
BRIGHTNESS::
4500 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.1Kgs ( 15.65 lbs) | 13Kgs (28.66 lbs)
ACCESSIBILITY::
Rear Acess
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
XS SERIES 3.9MM SMD OUTDOOR-XS390
▾
PIXEL PITCH::
3.91mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
64x64dots
CABINET PIXEL RESOLUTION ( H X W)::
128x128dots | 128x256dots
BRIGHTNESS::
5000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.1Kgs ( 15.65 lbs) | 13Kgs (28.66 lbs)
ACCESSIBILITY::
Rear Access
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
