FO Series
FRONT SERVICE Outdoor LED Display
Built to withstand the elements, this display delivers reliable performance in any outdoor setting.

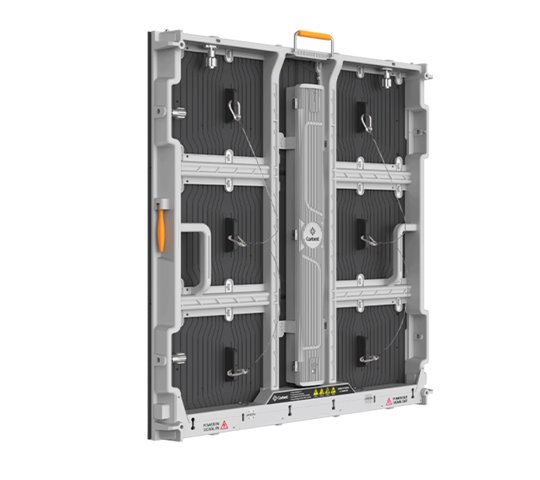

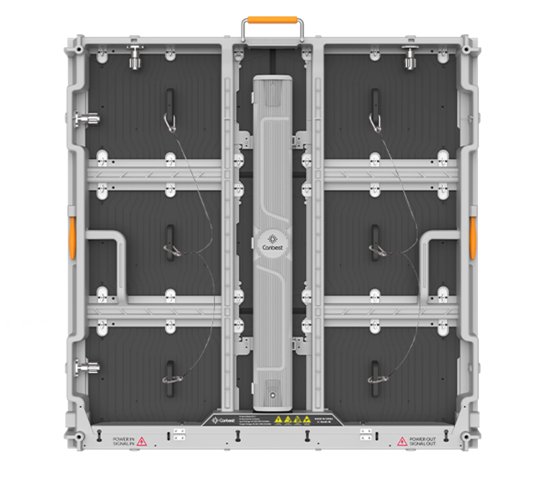

FO SERIES Description

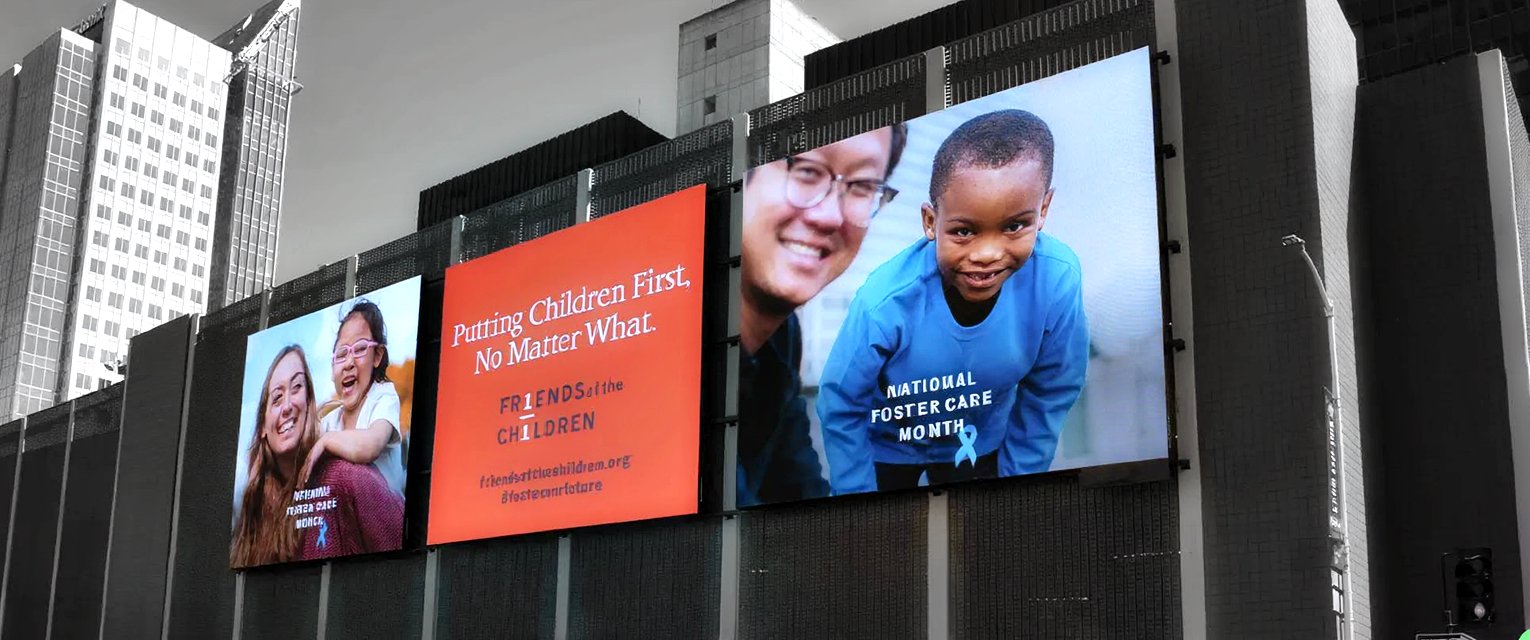

FO Series transforms outdoor advertising and permanent installations with LED displays that offer pixel pitches from p4 to p10. Built with a tough, full aluminum frame, these panels outperform traditional cabinets in strength and durability, making them the ideal choice for large-scale digital billboards, amenity decks, sports stadiums, shopping malls, parks, building-mounted displays, and vibrant outdoor retail spaces.
The FO Series offers flexible front or rear installation and servicing, making it an ideal fit for fixed setups in any setting. Engineered to brave the elements, these displays stand strong against direct sunlight, fluctuating temperatures, relentless vibrations, and even the harshest weather.
Our panels deliver outstanding image quality and dependable performance. With high brightness, rapid refresh rates, and striking contrast, these displays excel in any environment and lighting condition.
Available pixel pitches include P4.4, P5, P6, P8, and P10.
Key Features

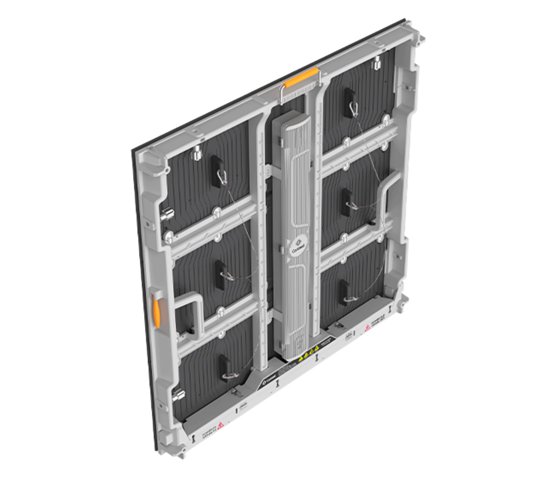

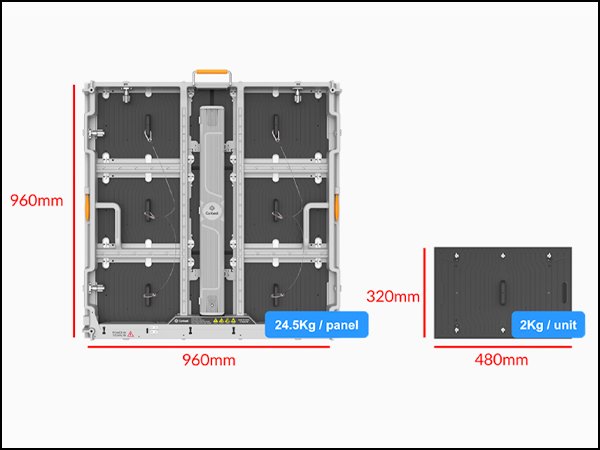

Lighter and Thinner Design
The die-cast aluminum profile is impressively light and slim, yet resists deformation. It mounts directly to the wall, eliminating extra structures for a sleek, cost-effective, and ultra-neat finish.

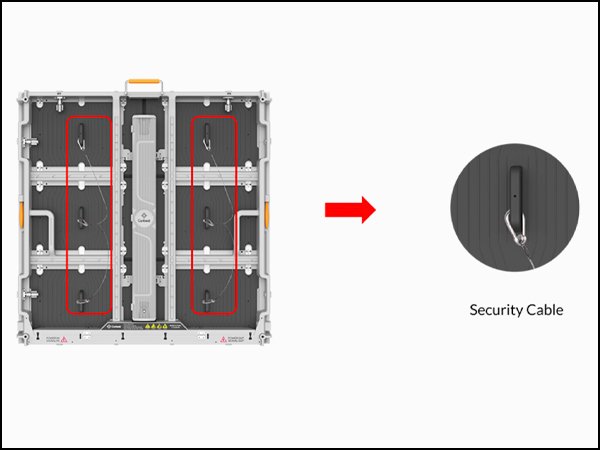

Security Cable Design
Secure the module during maintenance to prevent it from falling.

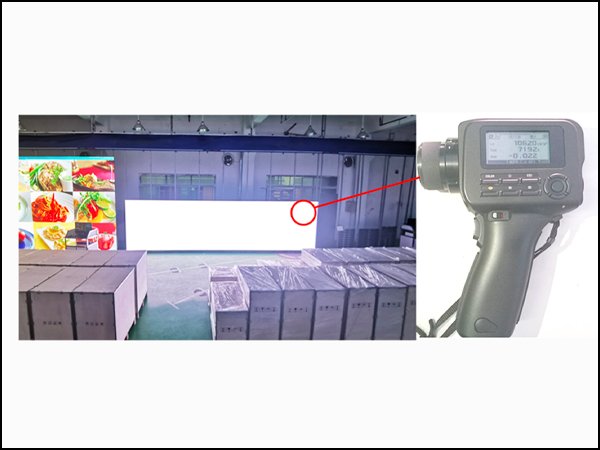

Super High Brightness
With a dazzling brightness of up to 10000 nits, this display grabs attention instantly and keeps your content vivid, even in the harshest sunlight.

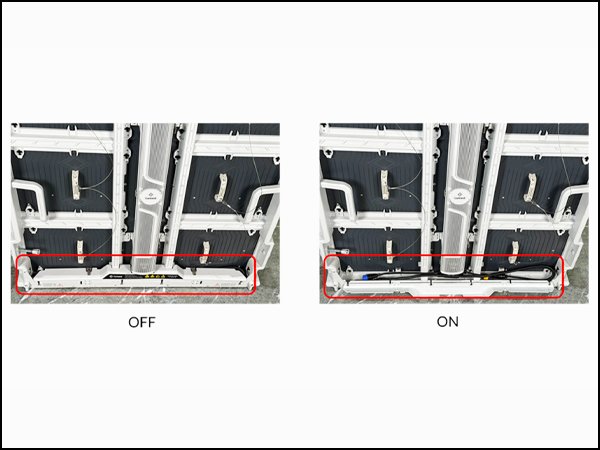

Hidden Cable Box Design
High-density silicone cables offer outstanding resistance to both high and low temperatures, along with superior electrical insulation. They protect cables from animal damage and greatly reduce maintenance needs.

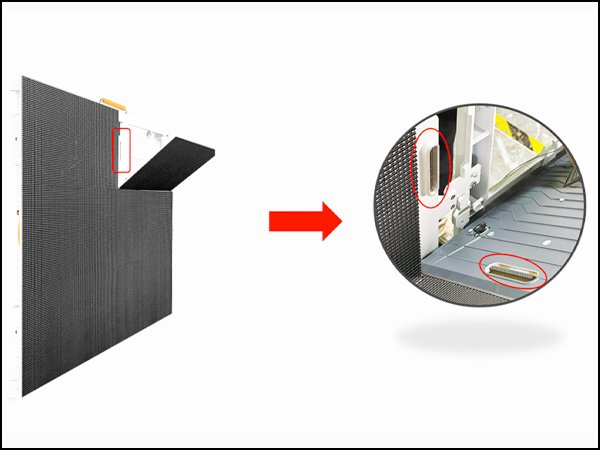

Cable-less Design
Reducing cable-related failures not only boosts reliability but also gives the entire screen a clean, sophisticated look.

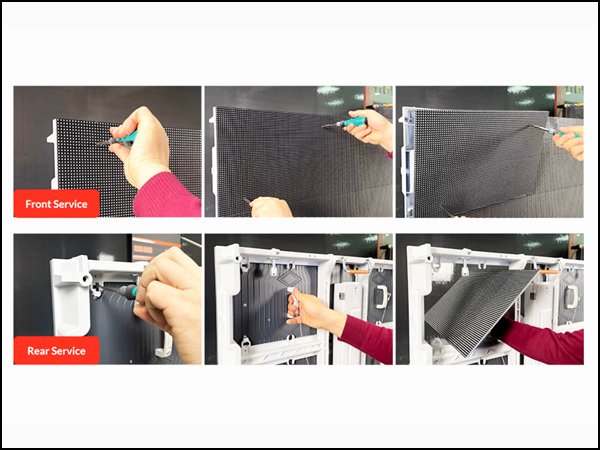

Front and Rear Service
Effortless to use, this solution streamlines your workflow and cuts down on both maintenance time and expenses.

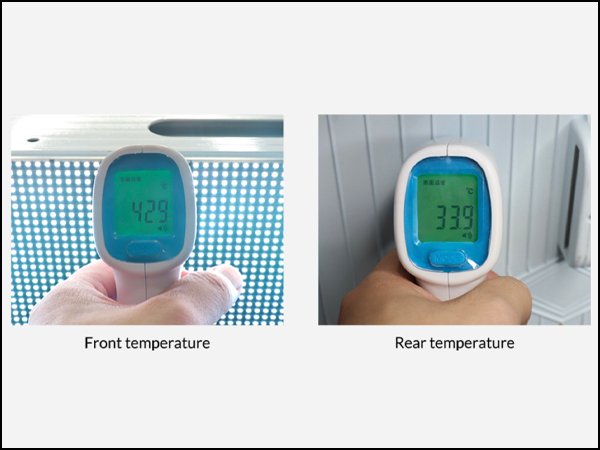

Fanless Design / Good Heat Dissipation
Experience superior heat dissipation with our all-aluminum bottom shell products.

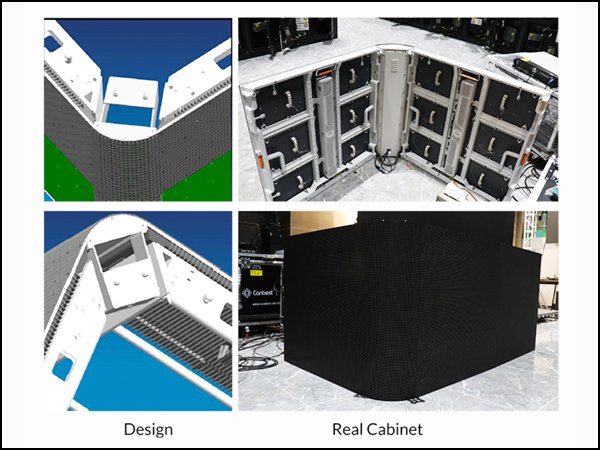

Curved Splicing
Experience the future of display with our uniquely crafted curved panels, perfectly suited for breathtaking 3D giant digital billboards.

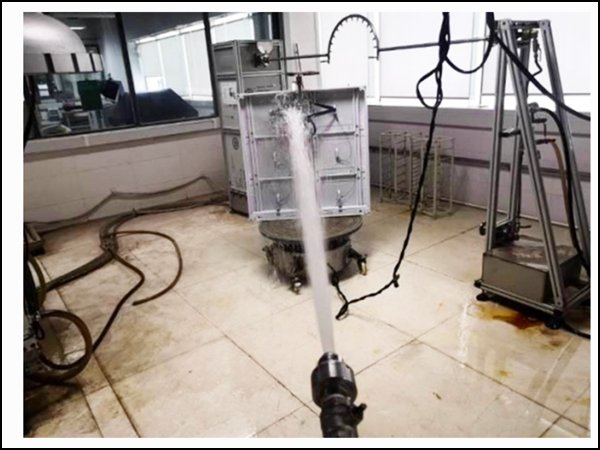

IP66 Protection Level

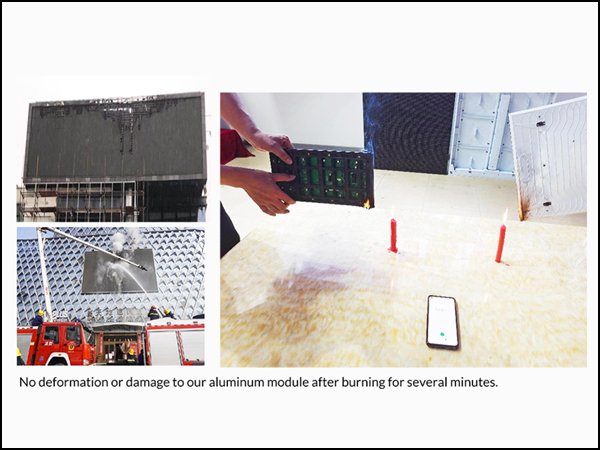

Super Safe and Fire Resistant Design
Our aluminum module emerged unscathed, showing no signs of deformation or damage even after enduring several minutes of intense burning.

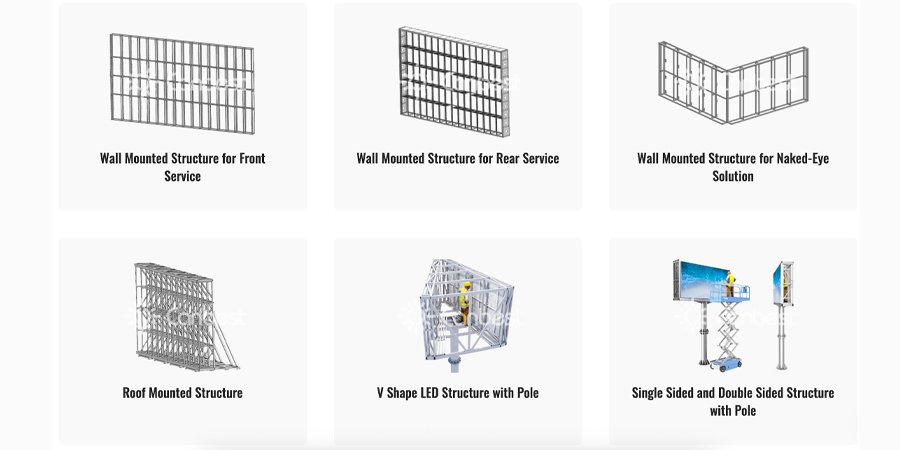

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate5500-9000nits
Brightness281 Trillion
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioFO SERIES 4MM SMD OUTDOOR-FO4
▾
PIXEL PITCH::
4.4mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
109x72dots
CABINET PIXEL RESOLUTION ( H X W)::
218x218dots
BRIGHTNESS::
5500~7500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
24.5Kgs ( 54.01 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FO SERIES 5.7MM SMD OUTDOOR-FO5
▾
PIXEL PITCH::
5.7mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
84x56dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
5500~7500nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
24.5Kgs ( 54.01 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FO SERIES 6.67MM SMD OUTDOOR-FO6
▾
PIXEL PITCH::
6.67mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
72x48dots
CABINET PIXEL RESOLUTION ( H X W)::
144x144dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 inch)
CABINET WEIGHT::
24.5Kgs ( 54.01 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FO SERIES 8MM SMD OUTDOOR-FO8
▾
PIXEL PITCH::
8mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
60x40dots
CABINET PIXEL RESOLUTION ( H X W)::
120x120dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 Inch)
CABINET WEIGHT::
24.5Kgs ( 54.01 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-30℃~+60℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
FO SERIES 10MM SMD OUTDOOR-FO10
▾
PIXEL PITCH::
10mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
48x32dots
CABINET PIXEL RESOLUTION ( H X W)::
96x96dots
BRIGHTNESS::
6000~10000nits
REFRESH RATE::
3840Hz
CABINET SIZE::
960x960mm ( 37.79x37.79 Inch)
CABINET WEIGHT::
24.5Kgs ( 54.01 lbs)
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP66
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-2-30℃~+60℃0℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
