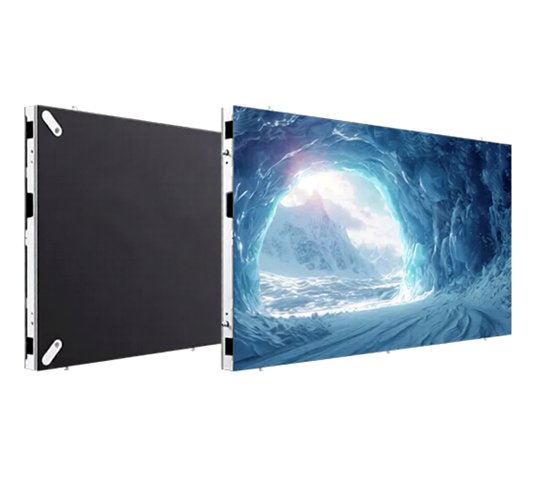

DM COB Series
ETL-Certified Dual Backup Video Walls
Step into a world of stunning detail with our 8K Micro LED video wall, powered by cutting-edge COB technology, dependable dual backup, and installation options designed to fit your vision.
DM COB SERIES Description

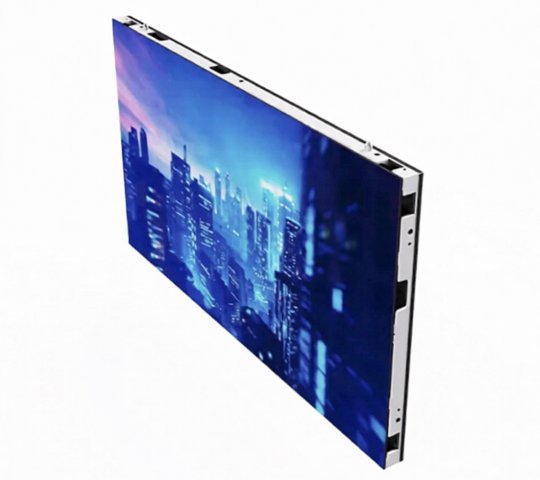

The DM COB Series redefines visual excellence with its cutting-edge Micro LED video wall, purpose-built for demanding environments. Dual backup systems for both power and receiving cards guarantee unwavering performance, even in the most critical moments. Available in pixel pitches as fine as P0.7 and up to P1.56, each 600×337.5mm panel in a cinematic 16:9 format brings breathtaking clarity, reaching true 8K resolution with a 10×10 panel array at P0.7.
Harnessing advanced COB (Chip-on-Board) technology and a common cathode design, the DM COB Series dazzles with brilliant brightness, deep contrast, and remarkable energy savings, all while keeping the screen cool for years of dependable use. Designed for effortless front installation and maintenance, it adapts seamlessly to wall-mounted, hanging, or curved setups, offering unmatched versatility across countless industries.

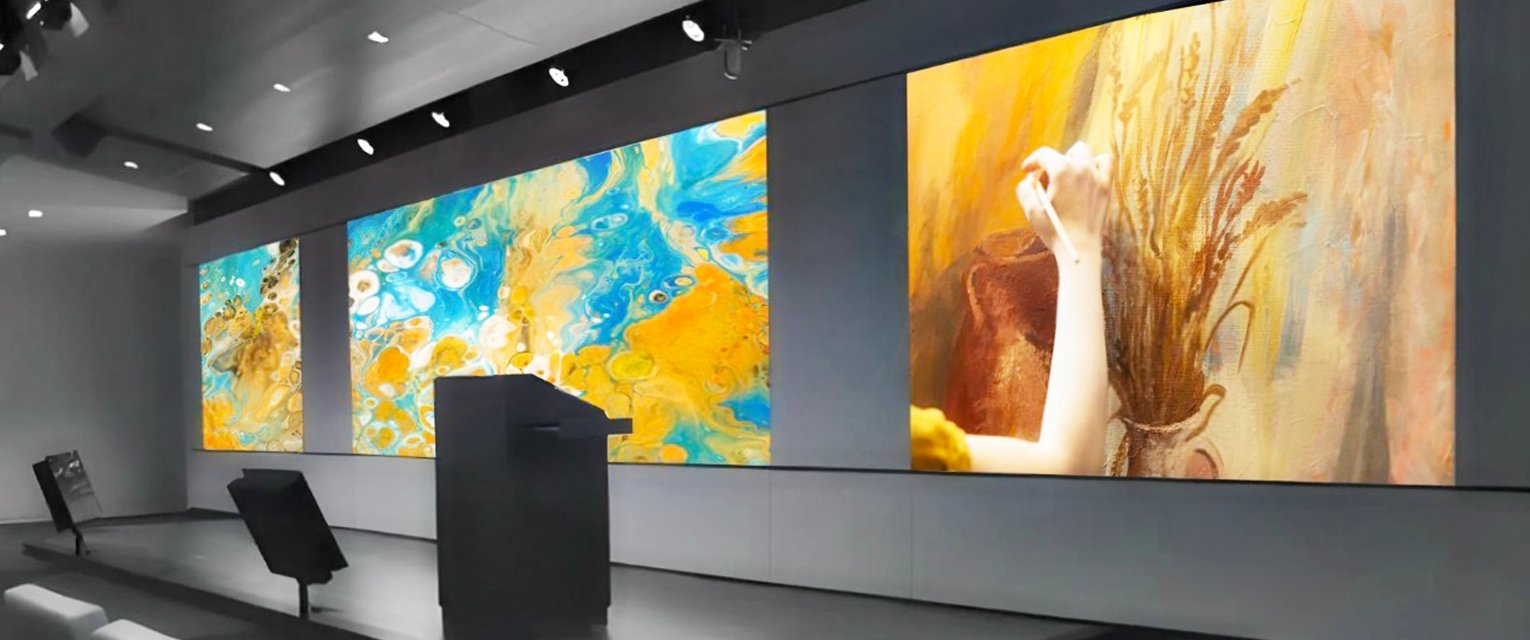

Perfectly suited for control rooms, surveillance hubs, broadcast studios, executive boardrooms, luxury retail, exhibition spaces, medical imaging, home theaters, universities, and places of worship, the DM COB Series delivers an immersive, glare-free experience with flawless, flicker-free visuals. Its comprehensive structural kit ensures swift, hassle-free setup and consistently delivers peak performance where clarity, reliability, and precision matter most.
Key Features

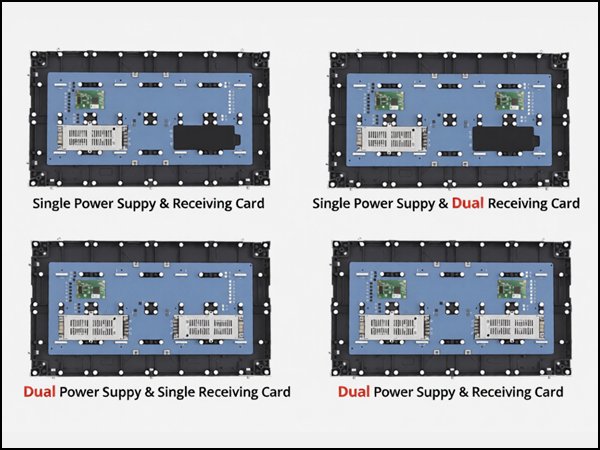

Dual Backup Available
Offers a range of backup solutions tailored to application needs, such as P0.9, P1.25, and P1.5. With a dual power supply and single redundancy, it guarantees reliable, uninterrupted screen performance.

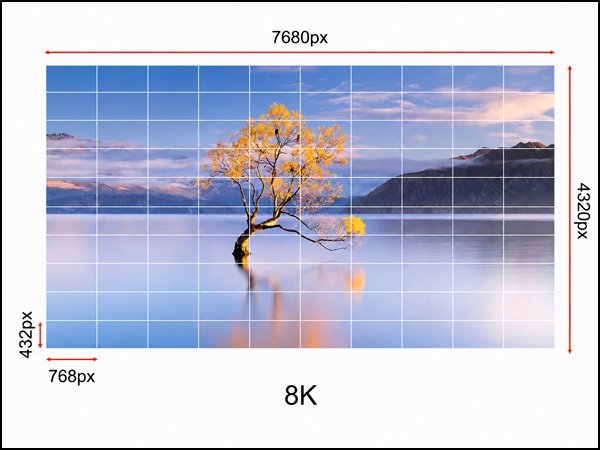

Effortless 8K Brilliance
With a 10×10 panel setup using P0.7, achieving stunning 8K resolution becomes effortless, making installation smoother and bringing large-scale displays to life in record time.

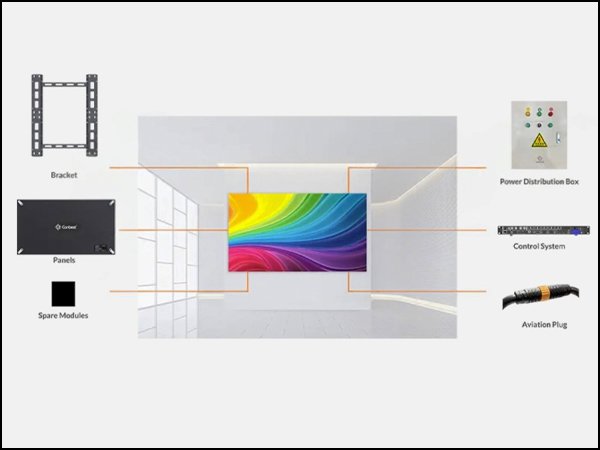

Alll Inclusive Package

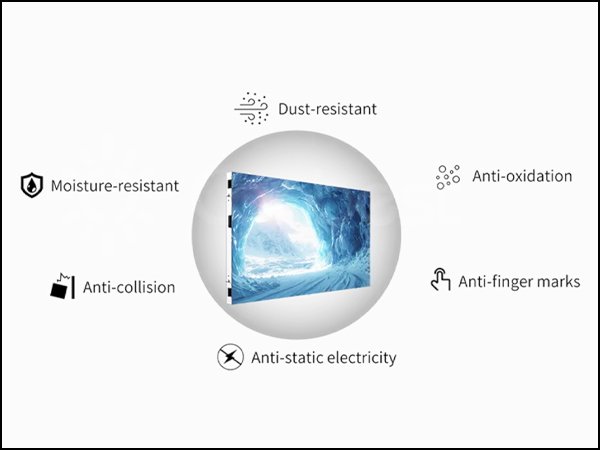

All Round Protection
Built to thrive in the toughest environments, the DM COB Series stands strong against impact, dust, and moisture, delivering unwavering performance you can count on for years.

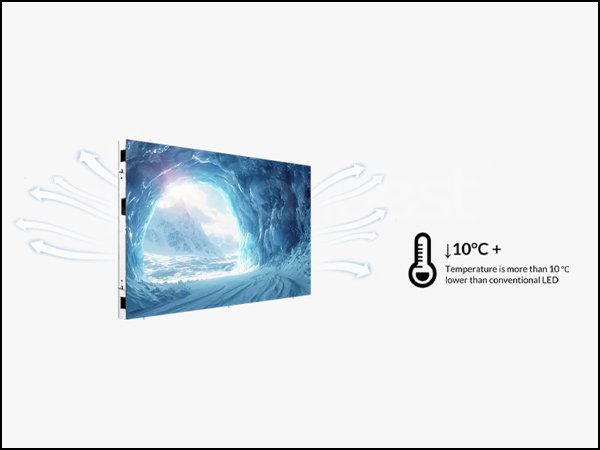

Cool Screen
With flip-chip COB and common-cathode technologies at its core, the DM Series stays cool even in the spotlight, delivering vivid, flawless visuals effortlessly.

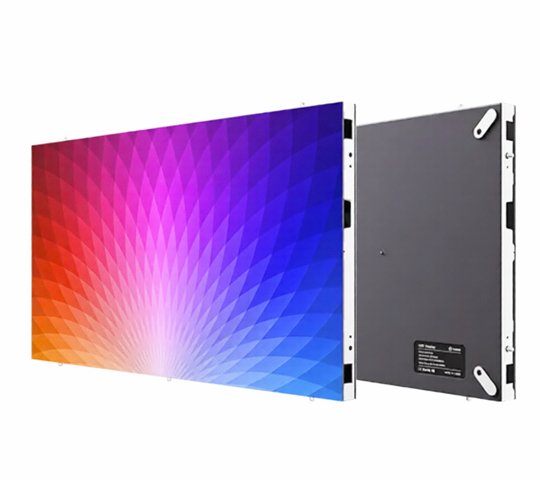

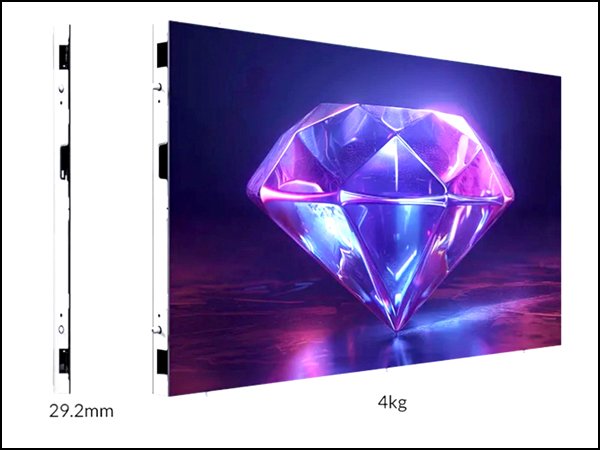

Ultra Slim Light Design
High Dynamic Range (HDR)
Step into a world of vivid colors and lifelike contrast, where enhanced brightness and rich shadow detail draw you into an unforgettable visual journey.
Memory On Module Management
With optional Memory on Module management, color calibration becomes effortless. Enjoy a richer visual experience thanks to automatic calibration, while the intelligent module instantly reads your uploaded screen data.

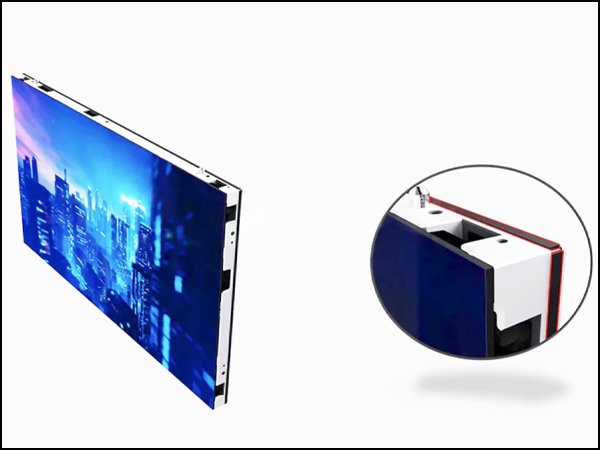

High Uniform and Light Leakage-proof Strip
The trip acts as a reliable barrier against light leakage between panels, delivering consistently uniform brightness while bringing out sharper clarity and richer color performance.

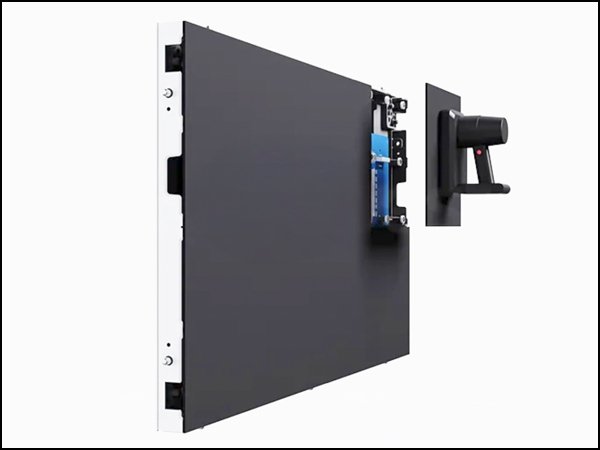

Convenient Maintenance

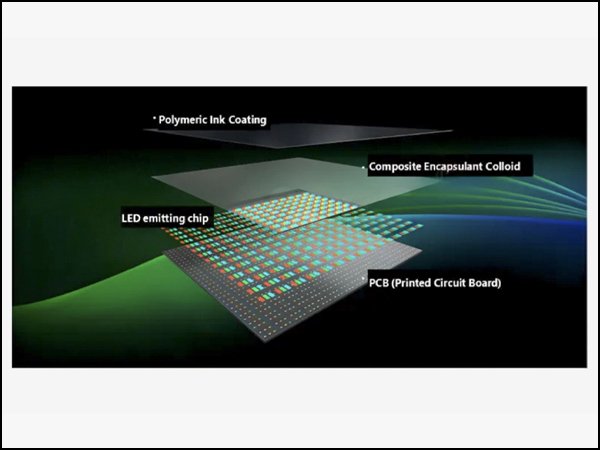

Unmatched Deep Blacks
Micro LED technology shines with intense brightness and stays cool even during extended use. Its tough black polymer finish creates a deep, uniform black that stands out.

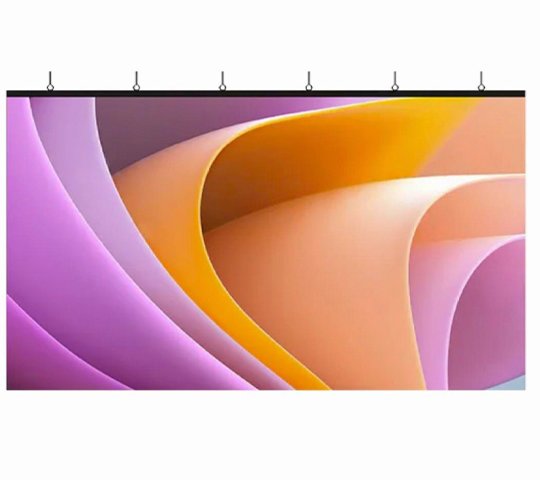

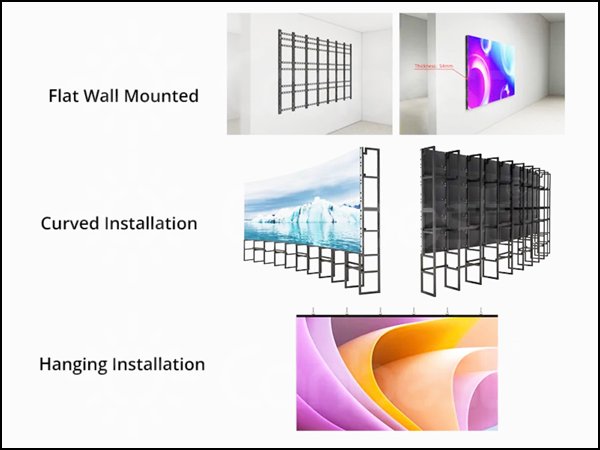

Flexible Installation Types

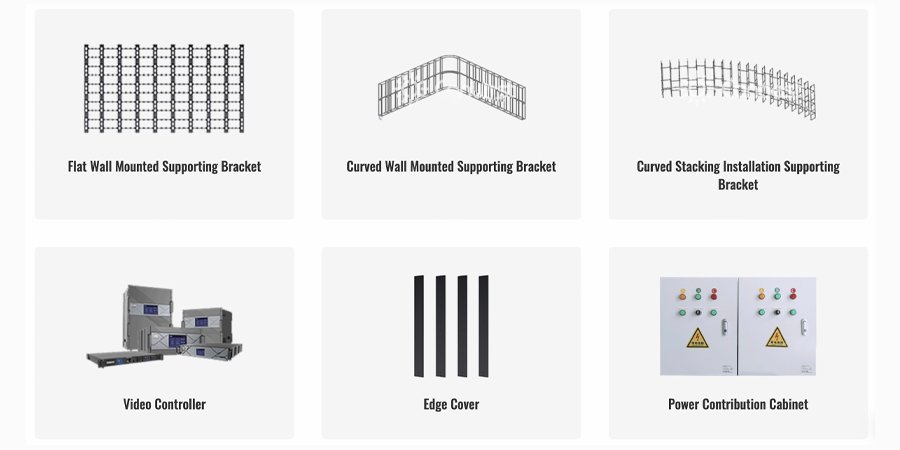

Accessories
Texture LED Series Specifications
3840Hz
Refresh Rate1000NITS
Brightness281 Trillion
Color Capability170° / 170°
Viewing Angle20000:1
Contrast RatioDM COB SERIES 0.7MM INDOOR-DM071
▾
PIXEL PITCH::
0.7mm
PIXEL CONFIGURATION & PACKAGING::
COB
MODULE PIXEL RESOLUTION (H x W)::
192x216dots
CABINET PIXEL RESOLUTION ( H X W)::
768x432dots
BRIGHTNESS::
600-800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
4Kgs ( 8.82lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
HDMI IN*2， HDMI OUT*1， USB *3
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
DM COB SERIES 0.9MM INDOOR-DM091
▾
PIXEL PITCH::
0.9375mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
160x180dots
CABINET PIXEL RESOLUTION ( H X W)::
640x360dots
BRIGHTNESS::
600-800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
4Kgs ( 8.82lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
DM COB SERIES 1.25MM INDOOR-DM121
▾
PIXEL PITCH::
1.25mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
120x135dots
CABINET PIXEL RESOLUTION ( H X W)::
480x270dots
BRIGHTNESS::
600-800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
4Kgs ( 8.82lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
DM COB SERIES 1.56MM INDOOR-DM151
▾
PIXEL PITCH::
1.5625mm
PIXEL CONFIGURATION & PACKAGE::
COB
MODULE PIXEL RESOLUTION ( H X W)::
96x108dots
CABINET PIXEL RESOLUTION ( H X W)::
384x216dots
BRIGHTNESS::
600-800nits
REFRESH RATE::
3840Hz
CABINET SIZE::
600x337.5mm (23.62x13.28 inch)
CABINET WEIGHT::
4Kgs ( 8.82lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
20000:1
WORKING TEMPERATURE::
-20°C~+40°C
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
