RH COB Series

COB ALUMINUM MODULE RENTALS LED

Experience the brilliance of our aluminum module design COB LED wall for outdoor events, delivering ultra-crisp visuals with P1.5 and P1.9 pitch options.

More Information Specifications

RH COB SERIES Description

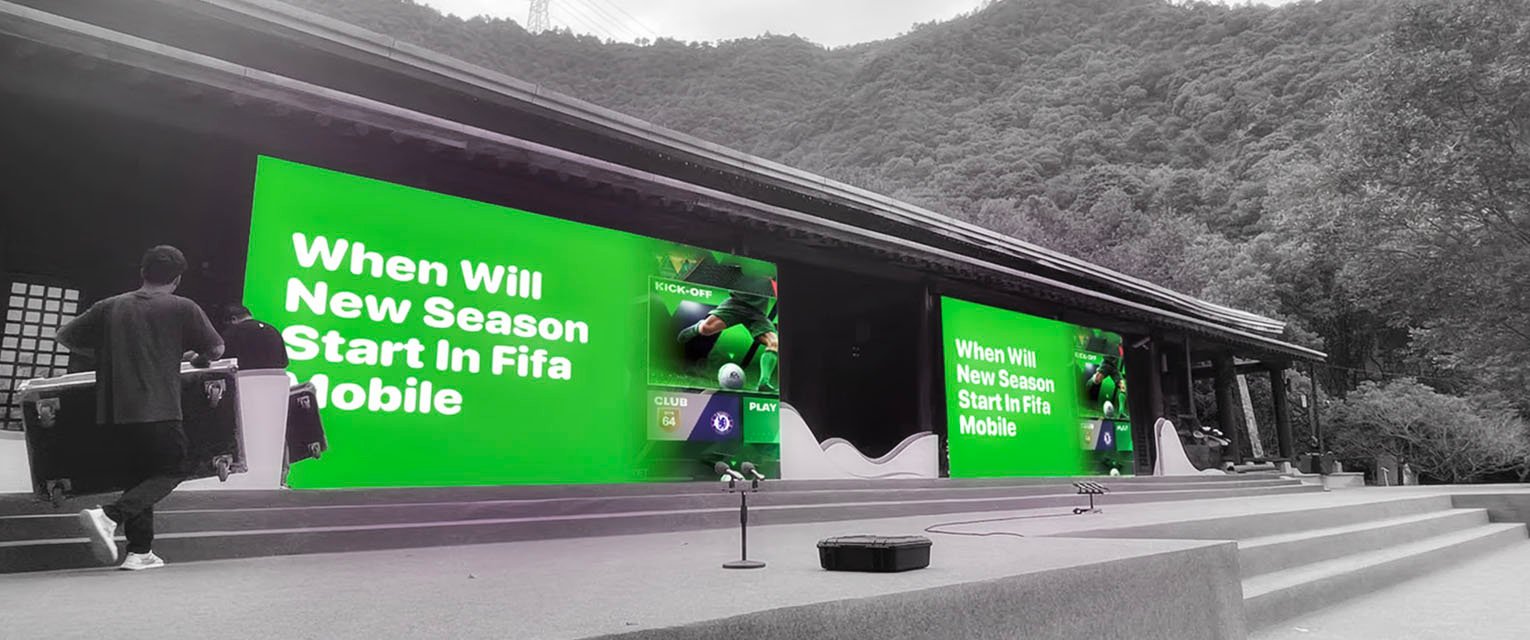

RH COB Series Stage LED Screens combine the strength of COB technology with robust aluminum modules, delivering exceptional durability and longevity. Ideal for outdoor events like concerts, major live shows, and sports streams, they deliver a stunning visual experience and versatile installation options.

Swapping out the separate power and data unit is effortless and tool-free. Cabinets are designed for both front and rear servicing, making maintenance quick and convenient.

With ultra-fine pixel pitches of P1.5 and P1.9, these screens are perfect for events where audiences are up close, ensuring every detail shines.

Get a quote

❮

❯

Key Features

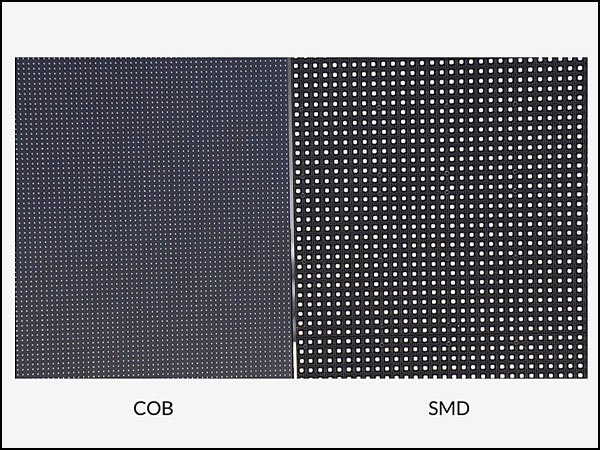

COB Packaging Technology / Superior Pixel Pitch

−

Shattering the boundaries of small pixel pitch in SMD packaging and achieving an even finer pitch than ever before.

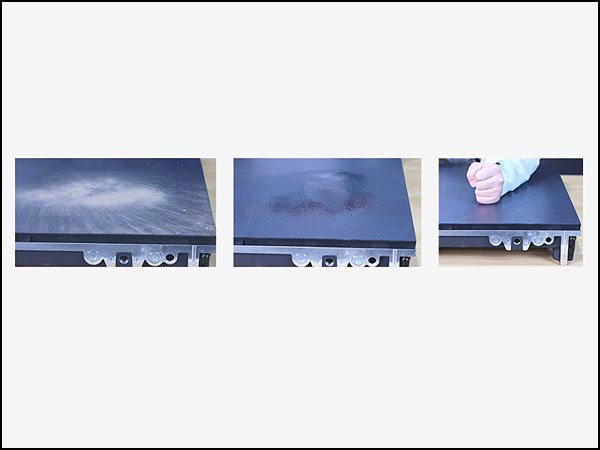

Superb Reliability

−

Thanks to a complete epoxy resin seal that protects the light-emitting chip, COB LEDs withstand shocks, collisions, moisture, dust, and water, ensuring worry-free transport and installation.

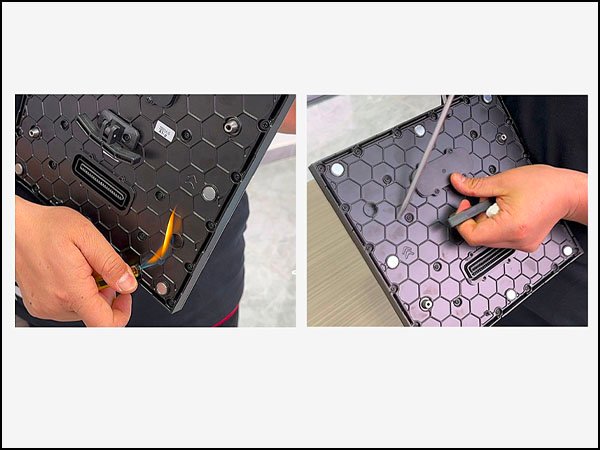

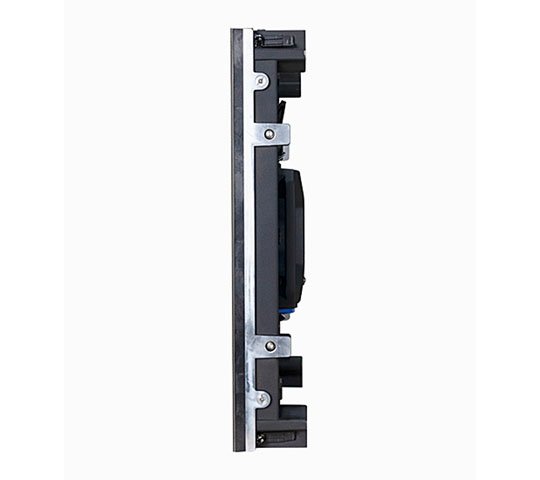

Aluminum Module Design

−

With excellent heat resistance, this module maintains its shape, dissipates heat efficiently, and lasts much longer than plastic alternatives.

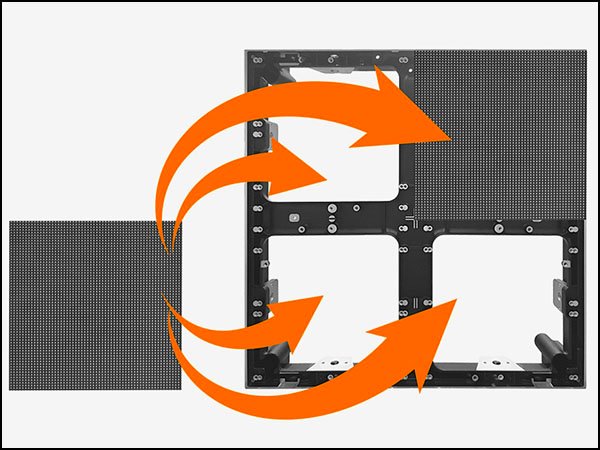

Intelligent Module Design

Modules can be effortlessly replaced in any direction, making operation and maintenance a breeze.

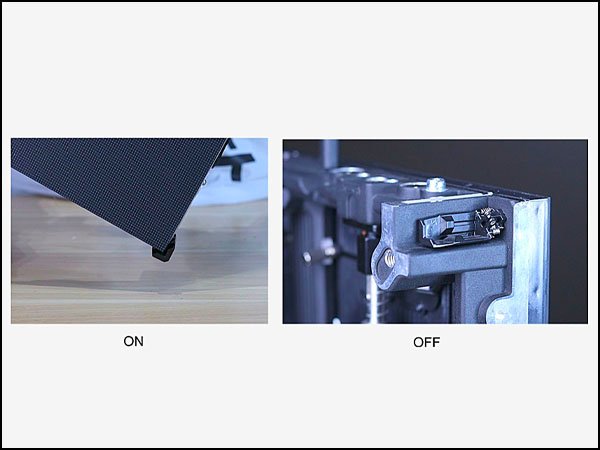

Corner Protector Design

Safeguarding every pixel from the bumps and tumbles of transport and installation.

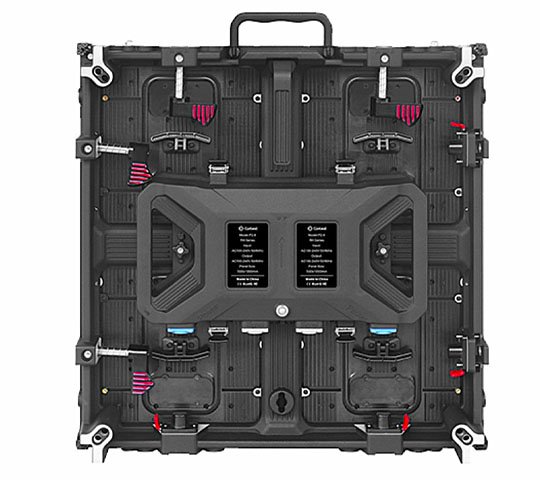

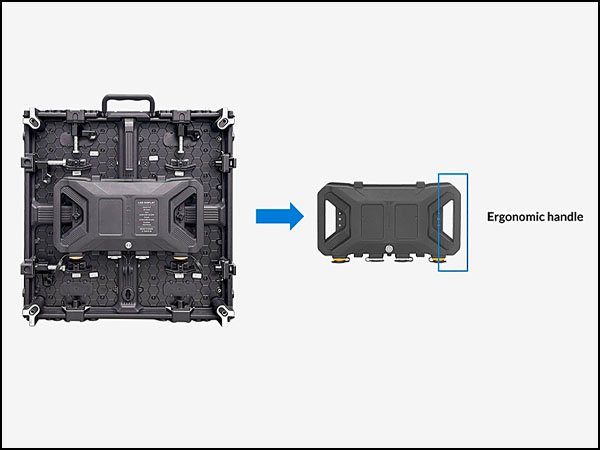

Independent Power Supply Design

-Experience hassle-free maintenance with a pluggable power box that requires no cable connections or tools, making every operation swift and simple.
-Enjoy a unique power supply design that seamlessly supports both 500*500mm and 500*1000mm panels.

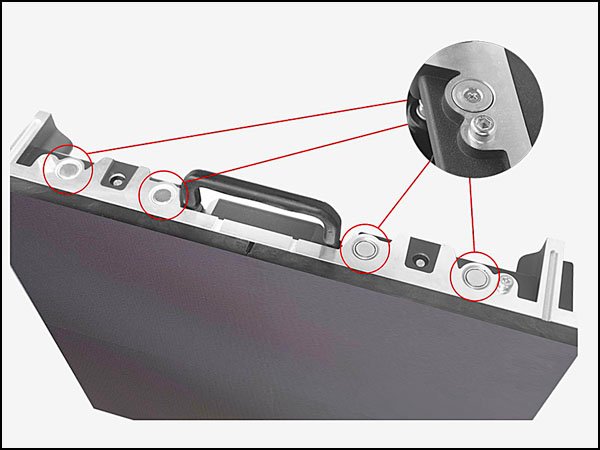

Strong Magnet / Automatic Pull-in Installation / One-person Installation

The powerful magnet snaps components into place, making solo installation a breeze.

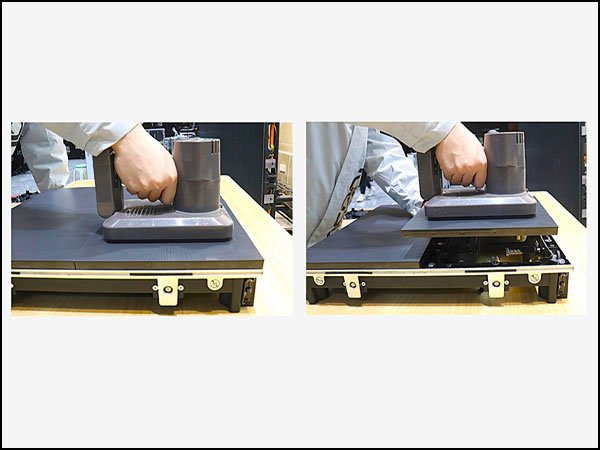

Front & Rear Access

Experience the power of a robust magnetic module design, offering effortless installation and maintenance from both the front and rear.

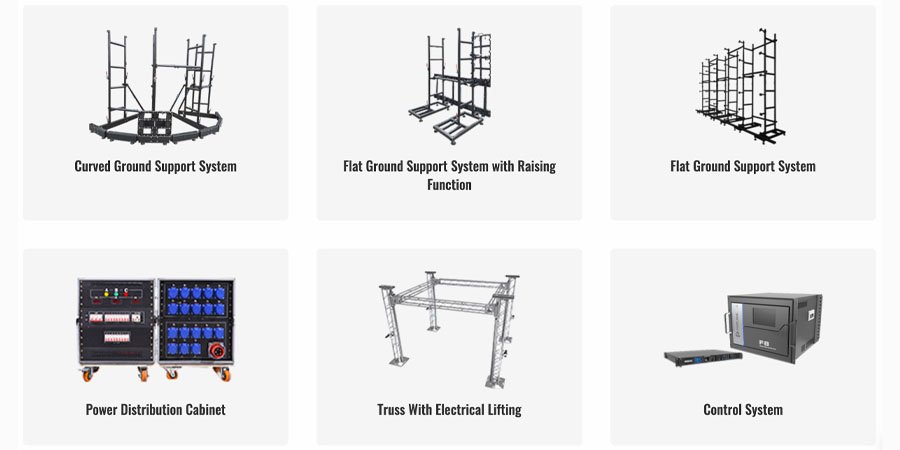

Accessories

Texture LED Series Specifications

3840Hz

Refresh Rate

1000-4500nits

Brightness

281 Trillion

Color Capability

170°/170°

Viewing Angle

10000:1

Contrast Ratio

RH COB SERIES 1.5mm OUTDOOR-RH151 COB

▾

PIXEL PITCH:: 1.5625mm

PIXEL CONFIGURATION & PACKAGE:: COB

MODULE PIXEL RESOLUTION (H x W):: 160x160dots

CABINET PIXEL RESOLUTION ( H X W):: 320x320dots

BRIGHTNESS:: 2600-3500 nits

REFRESH RATE:: 3840Hz

CABINET SIZE:: 500x500mm ( 19.69x19.69inch)

CABINET WEIGHT:: 7.8Kgs ( 17.19 lbs)

ACCESSIBILITY:: Front Access

IP RATING:: IP65

CONTRAST RATIO:: 10000:1

WORKING TEMPERATURE:: -30℃~+60℃

1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.

Access Product Spec Sheet

RH COB SERIES 1.9mm OUTDOOR-RH191 COB

▾

PIXEL PITCH:: 1.953mm
