RS Series
7680Hz Modular LED Screen Rentals
Transform your event stage with modular LED screen panel rentals featuring a stunning 7680Hz refresh rate. Shape them into curves or sharp angles to create unforgettable visual experiences.
RS SERIES Description

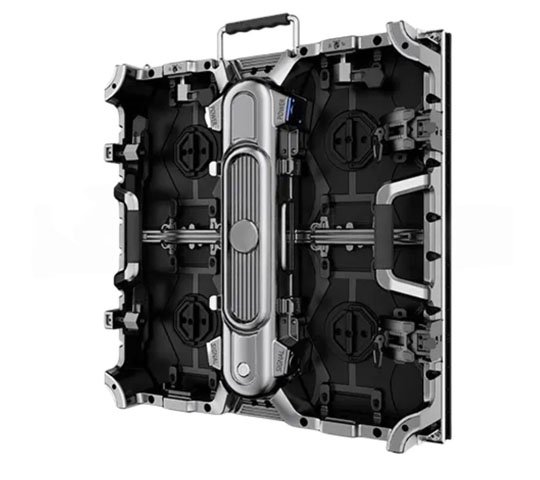

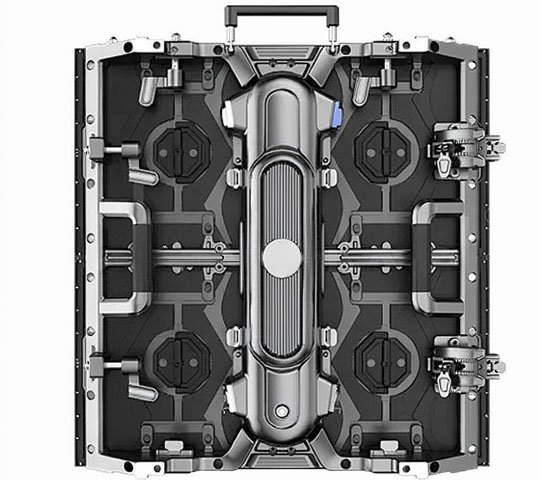

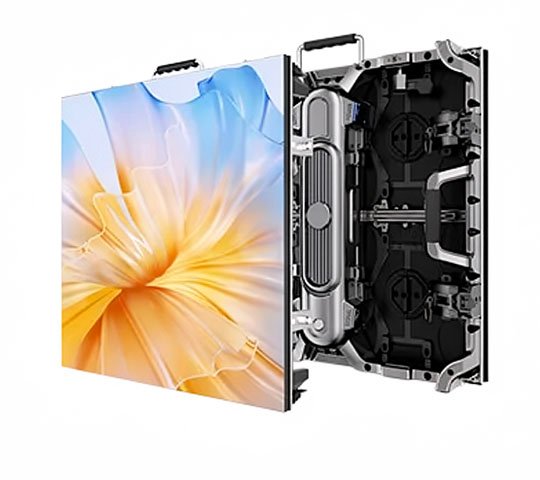

RS Series – Indoor/Outdoor HUB Connection LED Wall
The RS Series redefines LED wall performance, blending versatility and efficiency for any setting, indoors or out. From electrifying concerts to bustling trade shows and lively festivals, the RS Series brings your vision to life with vivid imagery, lightning-fast setup, and unwavering durability.
Key Specifications:
- Panel Sizes: 500×500mm and 500×1000mm – support mixed splicing for flexible configurations
- Pixel Pitch Options: Indoor: P1.9 / P2.6 / P2.9 / P3.9, Outdoor: P2.6 / P2.9 / P3.9
- HUB Connection System – The innovative cable-free design streamlines installation and slashes maintenance time
- Modular Design – Lightweight yet sturdy panels snap together effortlessly, no tools required
- Front & Rear Maintenance – Enjoy hassle-free access for speedy servicing, no matter how or where you install
- One-Person Installation – Set up or break down in record time, all by yourself
- Flexible Installation – Create sweeping curves or sharp corners with ease, thanks to adaptable panel connections
- High Refresh Rate – Experience ultra-smooth, flicker-free visuals at 7680Hz, perfect for cameras, live broadcasts, and XR productions
- Applications – Elevate live concerts, DJ sets, sports events, trade shows, festivals, corporate gatherings, houses of worship, and performing arts venues with stunning visuals
Key Features
Ultralight but Sturdy

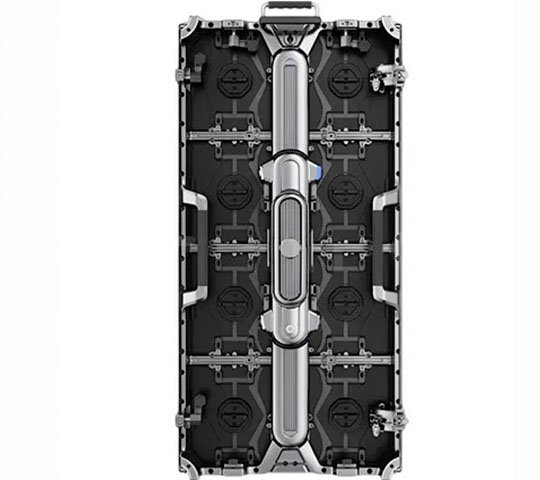

Enjoy effortless installation and lower costs with our lightweight cabinet. At only 13.5 kg for a 500×1000mm unit, you save on both labor and transportation.
Outstanding Visual Performance
Experience seamless, flicker-free visuals bursting with vibrant color depth, transforming high-end events, concerts, stages, and broadcast settings into unforgettable spectacles.

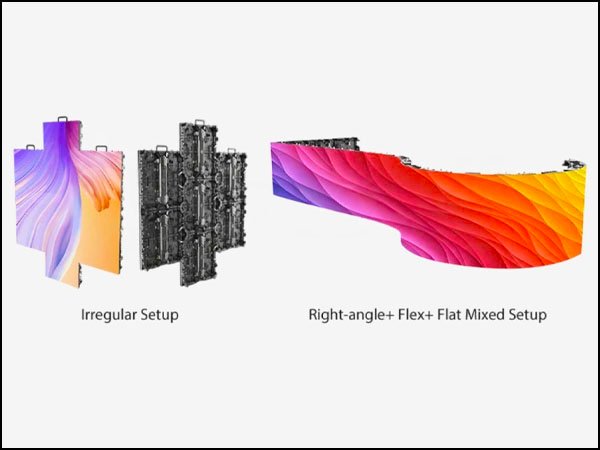

Creative Setup
Modular Design / Easy Maintenance

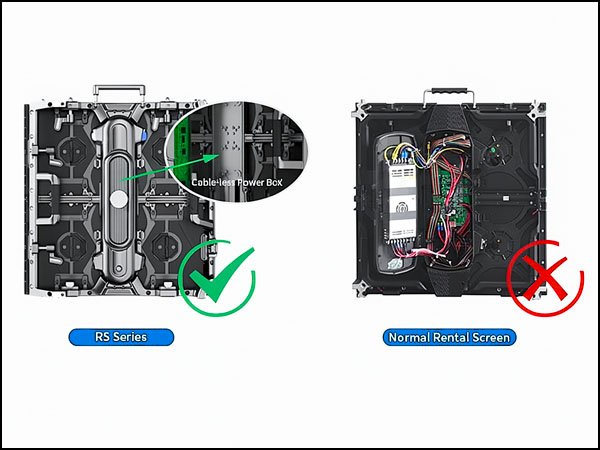

Thanks to its hub-connected design, the independent power supply makes maintenance easy, slashing upkeep time by up to 40% compared with old-fashioned wired systems.

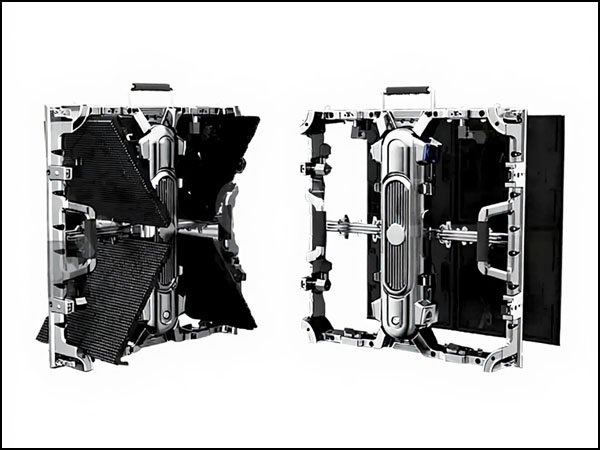

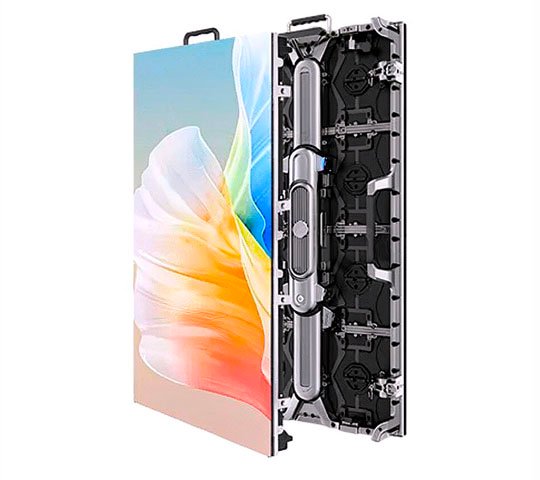

Front and Rear Maintenance
You can access both modules and power supply units (PSUs) from the front or back, making maintenance quick and hassle-free.

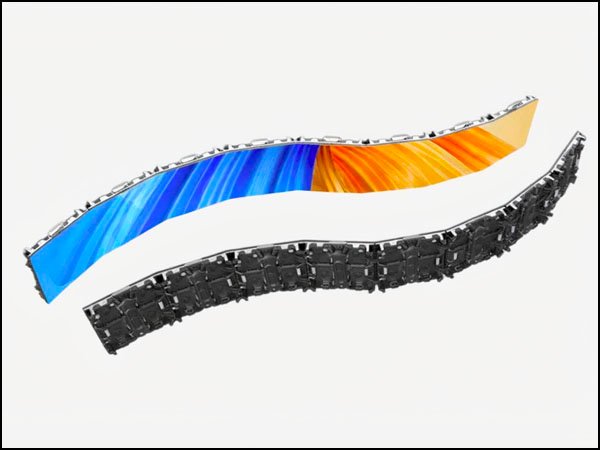

Durable Curve Locking System
With built-in curve locks, you can shape both concave (0~15°) and convex (0~12.5°) configurations, unlocking endless possibilities for bold and imaginative stage designs.

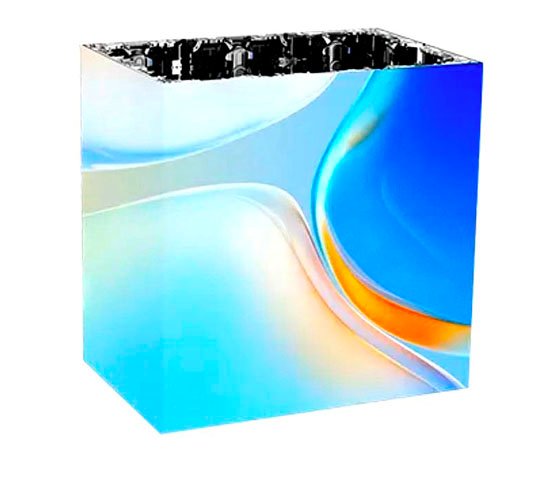

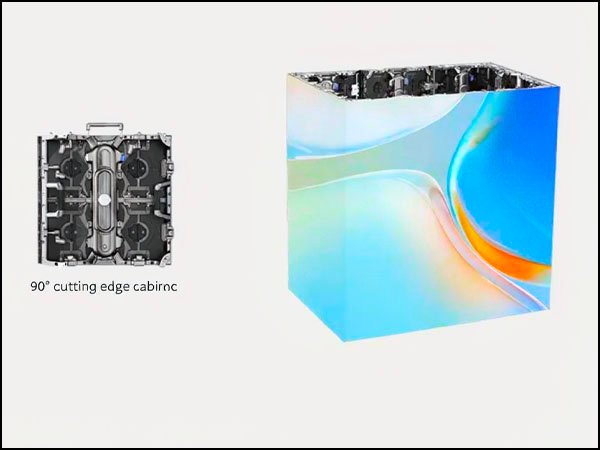

Right-angle Setup

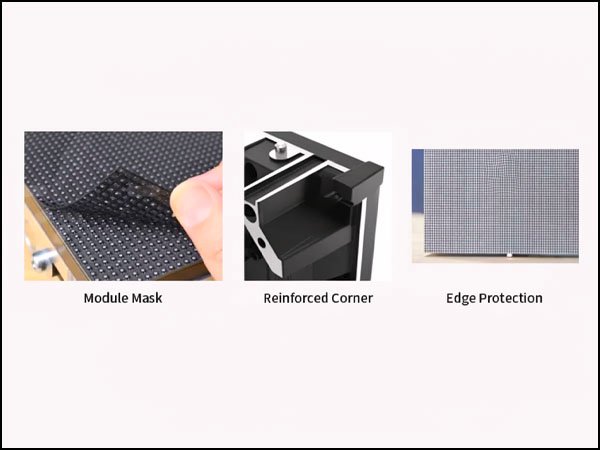

Safety with Anti-collision Design
The anti-collision design features a flip-over protective mask, sturdy reinforced corners, and raised edge protrusions that shield LEDs from ground impact, keeping edge LEDs safe.

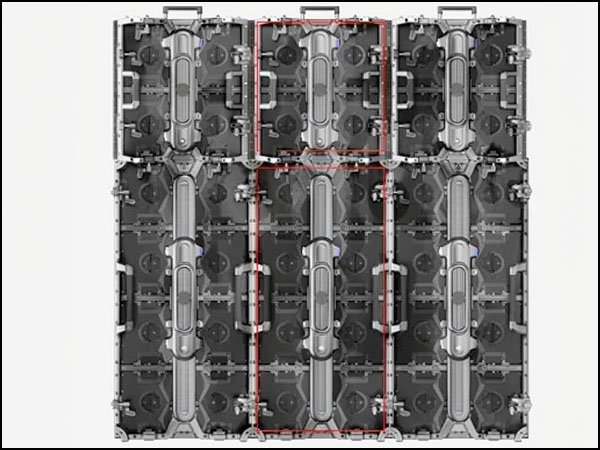

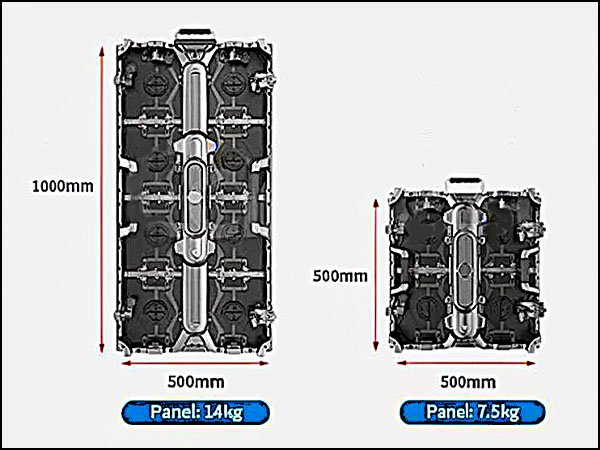

Flexible Cabinet Compatibility
With 500×500mm and 500×1000mm cabinets that splice together seamlessly, you can create flexible setups for any installation environment.
One Person Installation

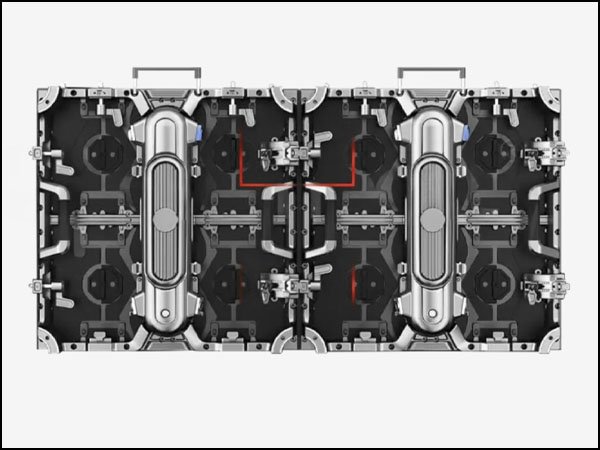

Thanks to positioning balls and rapid locks between cabinets, aligning and securing each unit is a swift, seamless process.

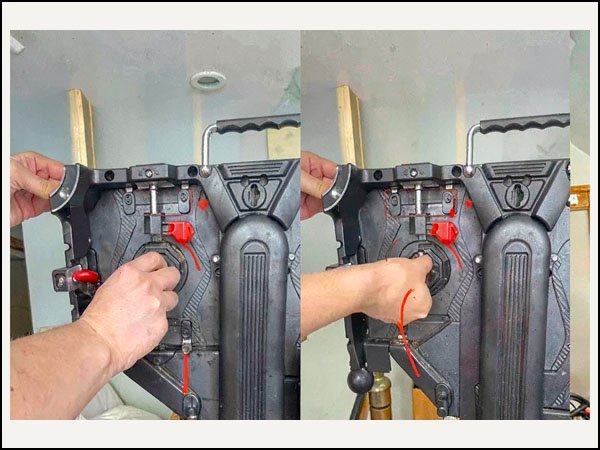

Quick Setup & Teardown
With a single twist, you can lock or release LED modules, streamlining replacements and maintenance while cutting time and costs.

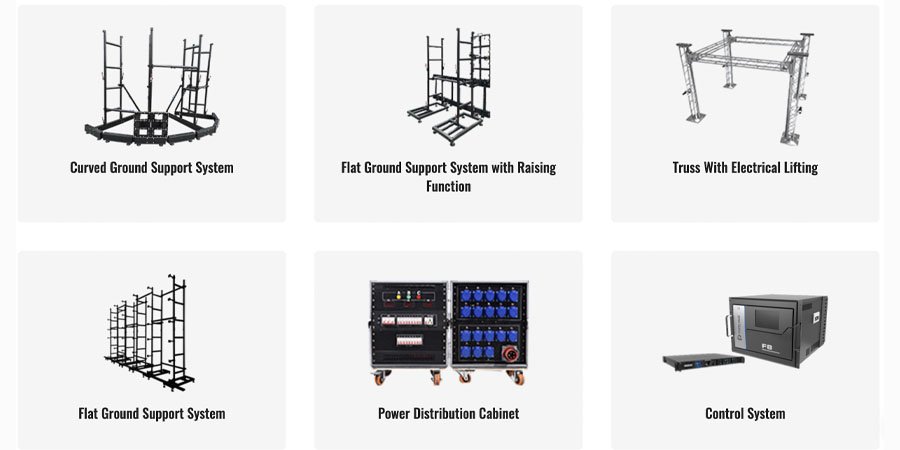

Accessories
Texture LED Series Specifications
7680HZ
Refresh Rate800 | 4500NITS
Brightness281 Trillion
Color Capability140° / 120°
Viewing Angle5000:1
Contrast RatioRS SERIES 1.9MM SMD INDOOR-RS191
▾
PIXEL PITCH::
1.9mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD / GOB
MODULE PIXEL RESOLUTION (H x W)::
128x128dots
CABINET PIXEL RESOLUTION ( H X W)::
256x256dots | 256*512dots
BRIGHTNESS::
800nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm ( 19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
RS SERIES 2.6MM SMD INDOOR-RS261
▾
PIXEL PITCH::
2.604mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
96x96dots
CABINET PIXEL RESOLUTION ( H X W)::
192x192dots | 192x384dots
BRIGHTNESS::
800 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
RS SERIES 2.9MM SMD INDOOR-RS291
▾
PIXEL PITCH::
2.97mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
84x84dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots |168x336dots
BRIGHTNESS::
800 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
RS SERIES 3.9MM SMD INDOOR-RS391
▾
PIXEL PITCH::
3.91mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
64x64dots
CABINET PIXEL RESOLUTION ( H X W)::
128x128dots |128x256dots
BRIGHTNESS::
800 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
RS SERIES 2.6MM SMD OUTDOOR-RS260
▾
PIXEL PITCH::
2.604mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
96x96dots
CABINET PIXEL RESOLUTION ( H X W)::
192x192dots | 192x384dots
BRIGHTNESS::
4500 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
RS SERIES 2.9MM SMD OUTDOOR-RS290
▾
PIXEL PITCH::
2.97mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
64x64dots
CABINET PIXEL RESOLUTION ( H X W)::
128x128dots | 128x256dots
BRIGHTNESS::
4500 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
RS SERIES 3.9MM SMD OUTDOOR-RS390
▾
PIXEL PITCH::
3.91mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
64x64dots
CABINET PIXEL RESOLUTION ( H X W)::
128x128dots | 128x256dots
BRIGHTNESS::
4500 nits
REFRESH RATE::
7680Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs )
ACCESSIBILITY::
Front & Rear Access
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
