LDF Series
Interactive, Immersive
Step onto the LDF Series interactive LED dance floor and dive into a world of vibrant lights, immersive fun, and unforgettable engagement.
LDF SERIES Description

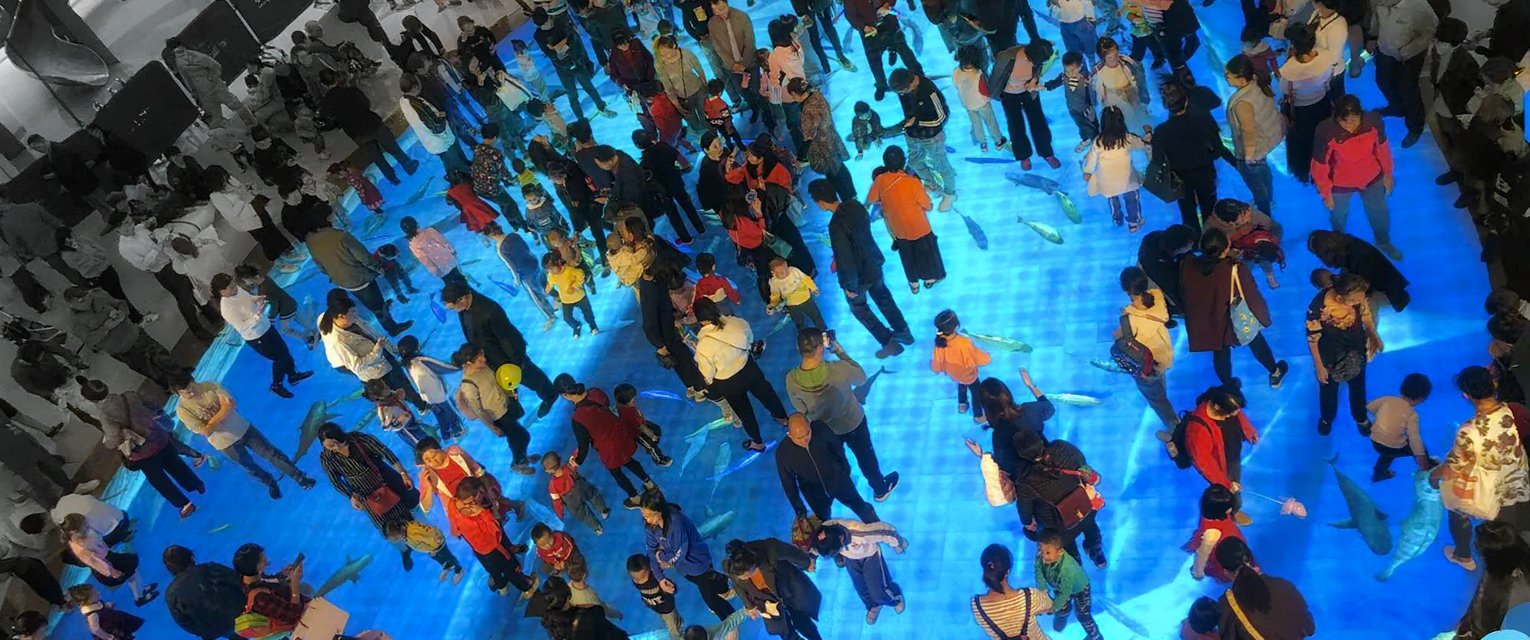

LDF SERIES transforms any space with its interactive LED dance floor tiles, equipped with sensors that burst into vibrant colors, playful effects, and lifelike images or videos. As people move and dance, the floor responds instantly to every step, creating a captivating and immersive experience.

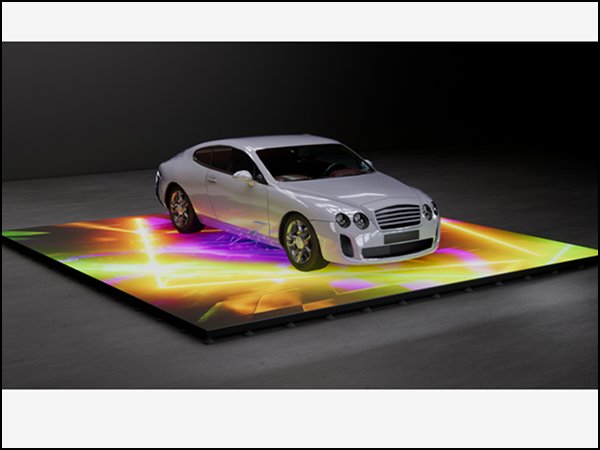

This innovative dance floor brings a new level of excitement to any event, making it a popular choice for shopping malls, conferences, auto shows, and more. It elevates the interactive experience between people and digital displays.
The pixel pitch is available in p2.5, p2.6, p2.9, and p3.9.
Key Features

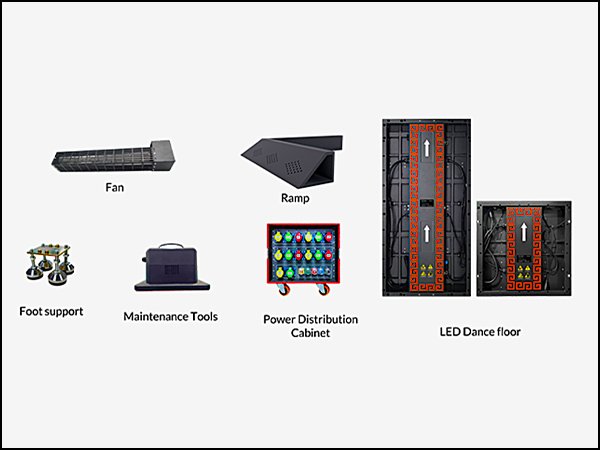

Complete Set Available
Experience hassle-free procurement with our all-in-one LED dance floor sets, designed to make buying smoother and more enjoyable.

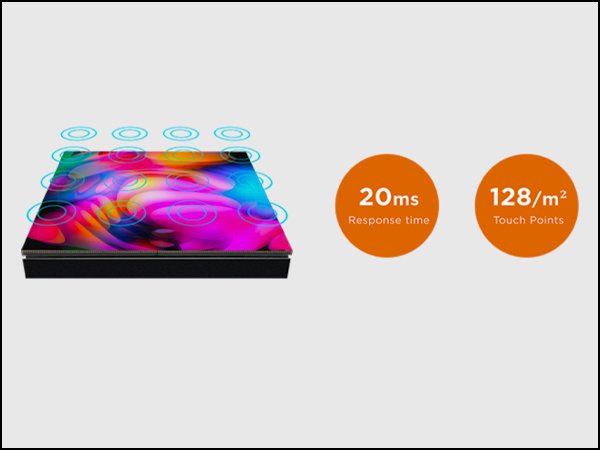

Real-time Interactive Multi-point Touch
Featuring a built-in interactive system with limitless interaction points, this technology responds in just 0.02 seconds, creating a dazzling visual spectacle that captivates audiences, leaves a lasting impression, and dramatically boosts engagement.

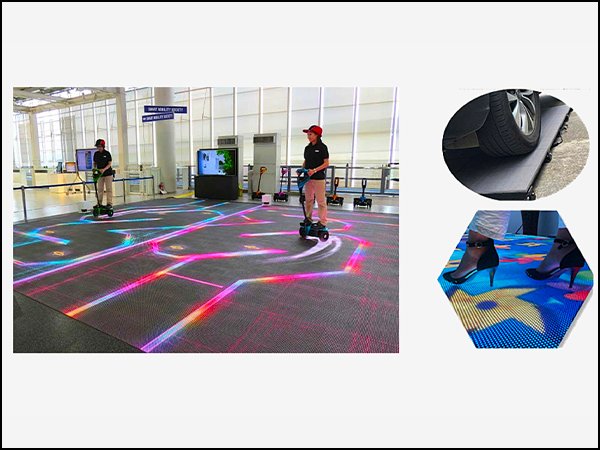

Super Load-bearing Performance
Designed with full-back reinforcement to evenly distribute force across the surface and paired with galvanized floor supports, this platform supports over 3T per square meter. It easily handles energetic crowds, making it ideal for stage shows, museums, and bustling venues.

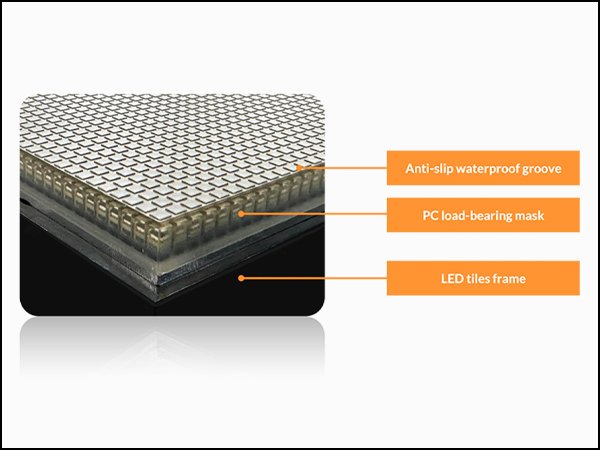

Anti-slip
Experience superior protection with our A+ grade imported polymer PC mask, featuring a tailored anti-slip design that ensures a secure fit in any environment.
Wear and Flame Retardant
Crafted from top-tier imported PC polymer, this mask offers exceptional wear resistance, impressive flexibility, and strong resistance to extreme heat, biting cold, and fire.

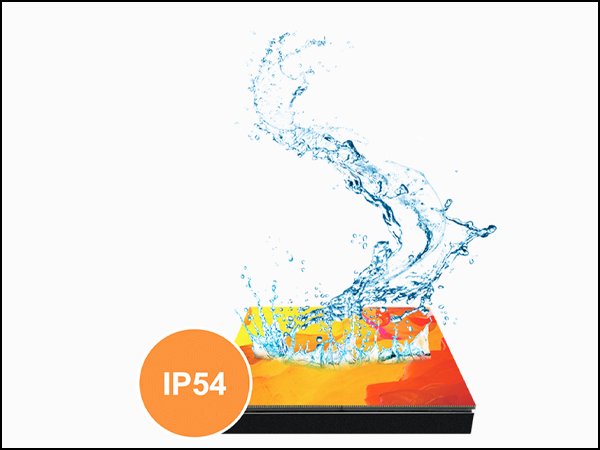

High Protection
The panel is fully sealed with a mask and shell, and every screw hole is carefully treated with waterproof rubber rings and three-proof glue. This meticulous attention to detail ensures outstanding moisture and water resistance, earning it an IP54 rating for protection against dust and water.

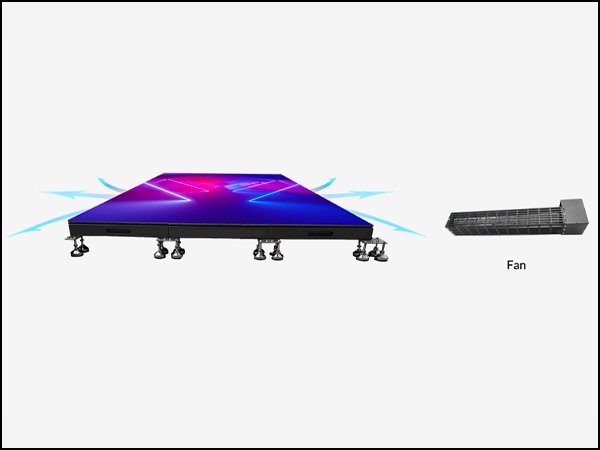

Excellent Heat Dissipation & Super Sound-off Features
Featuring a specially engineered heat-dissipation device, this system operates quietly and cools quickly, keeping the tiles stable and reliable.

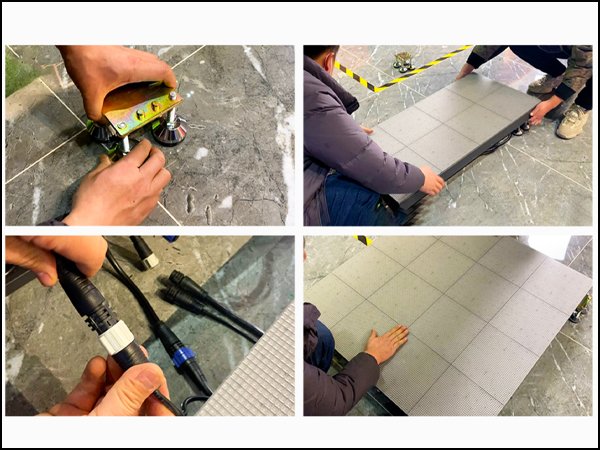

Quick Installation
Thanks to its independent cabinet foot design, you can position the cabinet horizontally in no time and assemble it with ease.

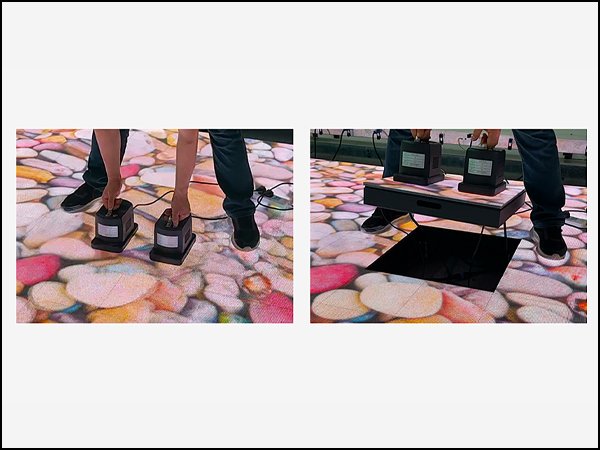

Technician Free Front Maintenance
Enjoy hassle-free maintenance and quick front-end replacements. No special tools or technicians required—just a simple, user-friendly experience designed for you.

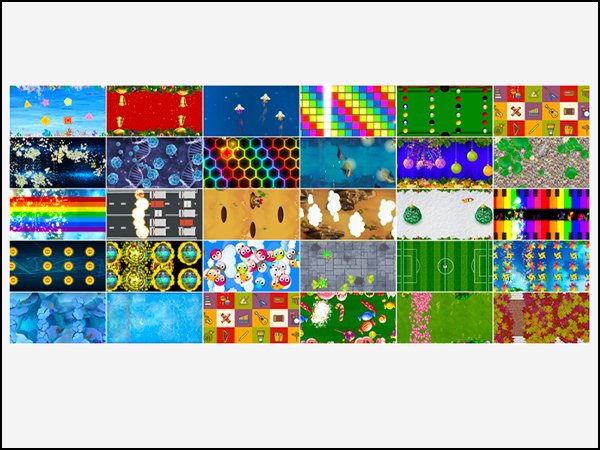

Flexible Interactive Contents
Enjoy 30 sets of FREE interactive content, plus 120 additional sets to choose from. We also offer custom content tailored to your needs and can even use your own materials.
Texture LED Series Specifications
3840Hz
Refresh Rate1000nits
Brightness90%
Color Capability160°/160°
Viewing Angle5000:1
Contrast RatioLDF SERIES 2.5mm SMD Indoor
▾
PIXEL PITCH::
2.5mm
PIXEL CONFIGURATION & PACKAGING::
3 in 1 SMD
MODULE PIXEL RESOLUTION (H x W)::
100x100dots
CABINET PIXEL RESOLUTION ( H X W)::
200x400dots
BRIGHTNESS::
1500 nits
REFRESH RATE::
3840Hz
CABINET SIZE::

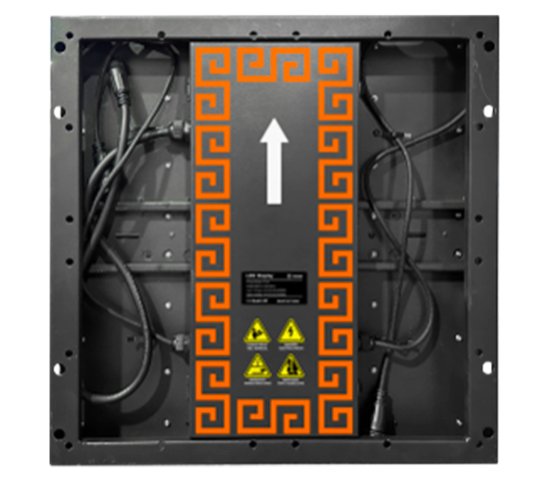

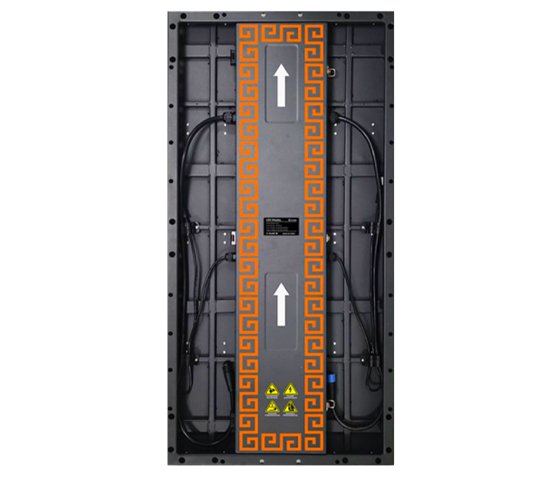

500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch)
CABINET WEIGHT::
11Kgs ( 16.53 lbs) | 22
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
LDF SERIES 2.6mm SMD Indoor
▾
PIXEL PITCH::
2.97mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
84x84dots
CABINET PIXEL RESOLUTION ( H X W)::
168x168dots
BRIGHTNESS::
1000 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
LDF SERIES 2.9mm SMD Indoor
▾
PIXEL PITCH::
3.91mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
64x64dots
CABINET PIXEL RESOLUTION ( H X W):
128x128dots
BRIGHTNESS::
1000 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs)
ACCESSIBILITY::
Front Access
IP RATING::
IP30
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
LDF SERIES 3.9mm SMD Indoor
▾
PIXEL PITCH::
2.604mm
PIXEL CONFIGURATION & PACKAGE::
3 in 1 SMD
MODULE PIXEL RESOLUTION ( H X W)::
96x96dots
CABINET PIXEL RESOLUTION ( H X W):
192x192dots
BRIGHTNESS::
4000 nits
REFRESH RATE::
3840Hz
CABINET SIZE::
500x500mm ( 19.69x19.69inch)
CABINET WEIGHT::
7.5Kgs ( 16.53 lbs)
ACCESSIBILITY::
Rear Acess
IP RATING::
IP65
CONTRAST RATIO::
5000:1
WORKING TEMPERATURE::
-20℃~+40℃
1) Brightness (NITs) is an adjustable specification depending on the application and how users opt to drive diodes. Brightness levels should be properly managed as power consumption and LED lifetime can also be affected.
